S9728.0XR1.0
S9728.0XR1.0
S9728.0XR1.0
S9728.0XR1.0

S9728.0XR1.0

UGC DOR8961928
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$58.14 CAD - $58.14 CAD
$58.14 CAD
$58.14 CAD - $58.14 CAD
$58.14 CAD

Vendu en lots de : 1

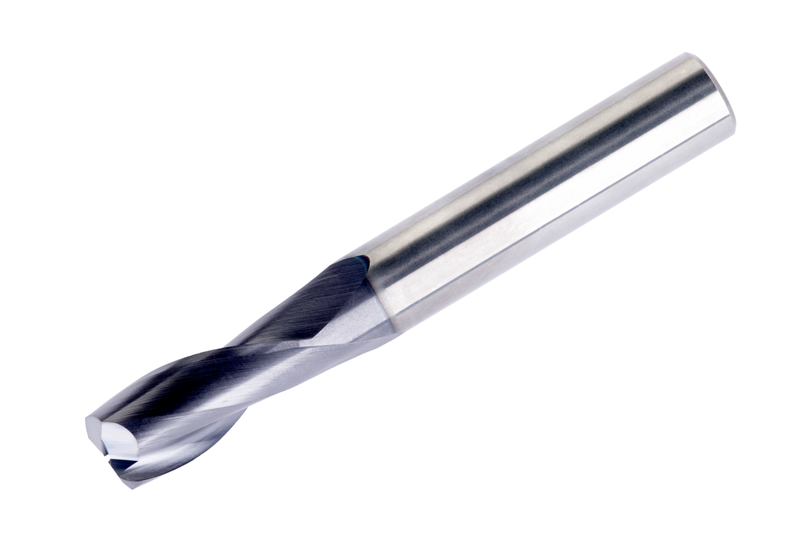

Outil rond avec un diamètre de coupe de 8 mm, une profondeur de coupe maximale de 19 mm et une longueur totale de 63 mm. DCON MS 8 mm avec queue cylindrique DIN 6535 HA. Revêtement TiAlN. Convient pour M - Acier inoxydable (aciers résistants à la corrosion avec ≥ 11% de chrome), P - Acier et acier moulé (aciers avec une teneur en alliage ≤ 10% et une dureté de < 45HRC), K - Fonte (moulages de fer et d'alliages de carbone avec > 2% de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9728.0XR1.0
GradeTiAlN
Product Number8961928
Product FamilyS972

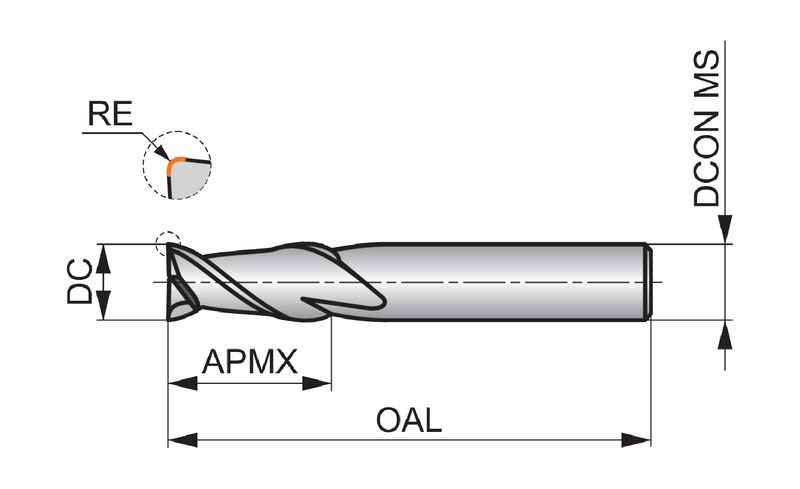

Insert Geometry
Corner Radius — in (RE)0.039"
Corner Radius — mm (RE)1 mm
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.48"
Overall Length — mm (OAL)63.0 mm
Length × Diameter Ratio8xR
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8961928
EAN3603607423202
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage possible
File Type Download
S9728.0XR1.0 — 3D Model STP Download
S9728.0XR1.0 — 2D Model DXF Download
S9728.0XR1.0 — Line Drawing PDF Download
