S9861/4
S9861/4
S9861/4
S9861/4

S9861/4

UGC DOR8962104
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$46.46 CAD - $46.46 CAD
$46.46 CAD
$46.46 CAD - $46.46 CAD
$46.46 CAD

Vendu en lots de : 1

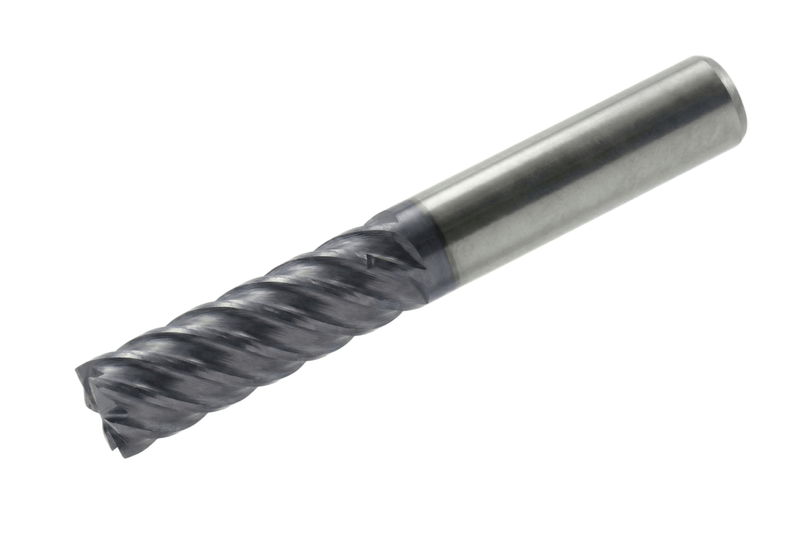

Outil rond avec diamètre de coupe 6,35 mm, profondeur de coupe maximale 28,575 mm et longueur totale 76,2 mm. DCON MS 6,35 mm avec queue cylindrique DIN 6535 HA. Revêtement TiAlN. Convient pour M - Aciers inoxydables (aciers résistants à la corrosion avec ≥ 11 % de chrome), P - Aciers et aciers moulés (aciers avec teneur en alliage ≤ 10 % et une dureté de < 45 HRC), K - Fontes (pièces moulées en fer et alliages de carbone avec > 2 % de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9861/4
GradeTiAlN
Product Number8962104
Product FamilyS986

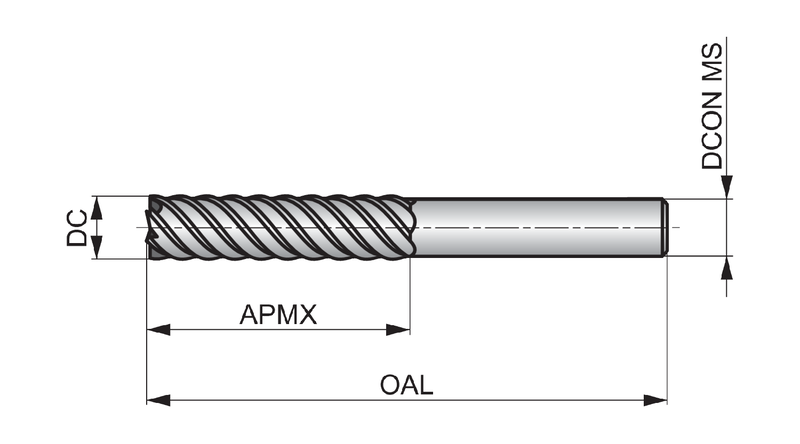

Insert Geometry
Depth of Cut Max — in (APMX)1.125"
Depth of Cut Max — mm (APMX)28.575 mm
Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Length × Diameter Ratio12xP
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Number of Flutes (NOF)6
Helix Angle (FHA)45.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8962104
EAN3603607424964
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9861/4 — 3D Model STP Download
S9861/4 — 2D Model DXF Download
S9861/4 — Line Drawing PDF Download
