UGC DOR8961992
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$77.17 CAD - $77.17 CAD
$77.17 CAD
$77.17 CAD - $77.17 CAD
$77.17 CAD

Vendu en lots de : 1

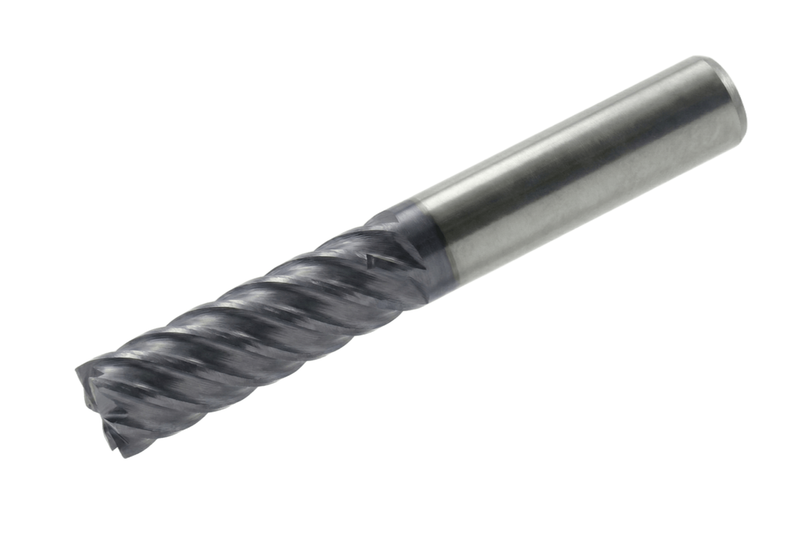

Outil rond avec diamètre de coupe de 10 mm, profondeur de coupe maximale de 31 mm et longueur totale de 100 mm. DCON MS 10 mm avec queue cylindrique DIN 6535 HA. Revêtement TiAlN. Convient pour M - Acier inoxydable (aciers résistants à la corrosion avec ≥ 11 % de chrome), P - Acier et acier moulé (aciers avec une teneur en alliage ≤ 10 % et une dureté < 45HRC), K - Fonte (moulages de fer et d'alliages de carbone avec > 2 % de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S98610.0
GradeTiAlN
Product Number8961992
Product FamilyS986

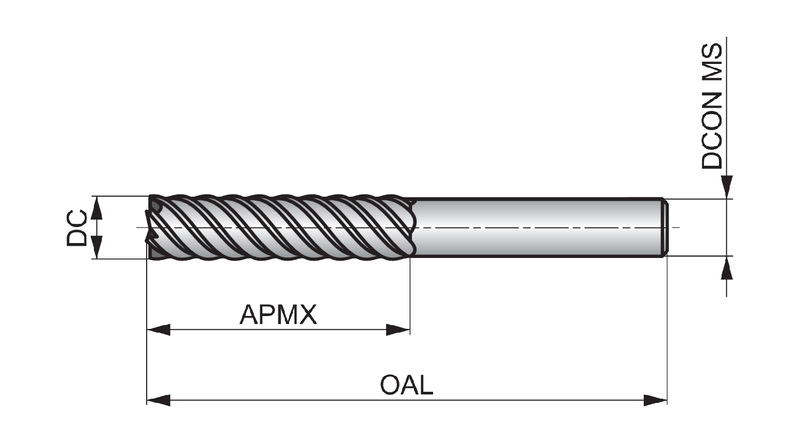

Insert Geometry
Depth of Cut Max — in (APMX)1.22"
Depth of Cut Max — mm (APMX)31.0 mm
Dimensions
Cutting Diameter — in (DC)0.394"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio10x
Connection Dia. — in (DCON)0.394"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)45.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8961992
EAN3603607423844
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S98610.0 — 3D Model STP Download
S98610.0 — 2D Model DXF Download
S98610.0 — Line Drawing PDF Download
