UGC DOR8961996
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$225.17 CAD - $225.17 CAD
$225.17 CAD
$225.17 CAD - $225.17 CAD
$225.17 CAD

Vendu en lots de : 1

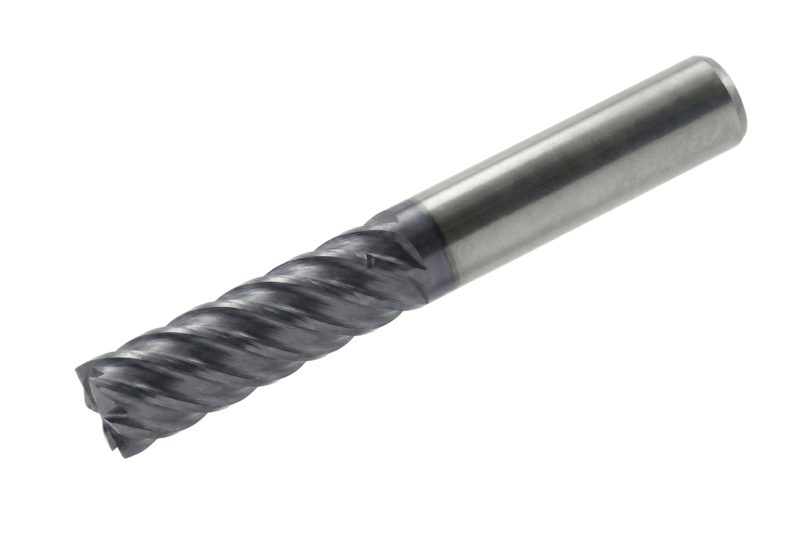

Outil rond avec diamètre de coupe 18 mm, profondeur de coupe maximale 57 mm et longueur totale 125 mm. DCON MS 18 mm avec queue cylindrique DIN 6535 HA. Revêtement TiAlN. Convient pour M - Aciers inoxydables (aciers résistants à la corrosion avec ≥ 11% de chrome), P - Aciers et aciers moulés (aciers avec une teneur en alliage ≤ 10% et une dureté < 45HRC), K - Fontes (pièces moulées en fer et alliages de carbone avec > 2% de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S98618.0
GradeTiAlN
Product Number8961996
Product FamilyS986
Insert Geometry
Depth of Cut Max — in (APMX)2.244"
Depth of Cut Max — mm (APMX)57.0 mm

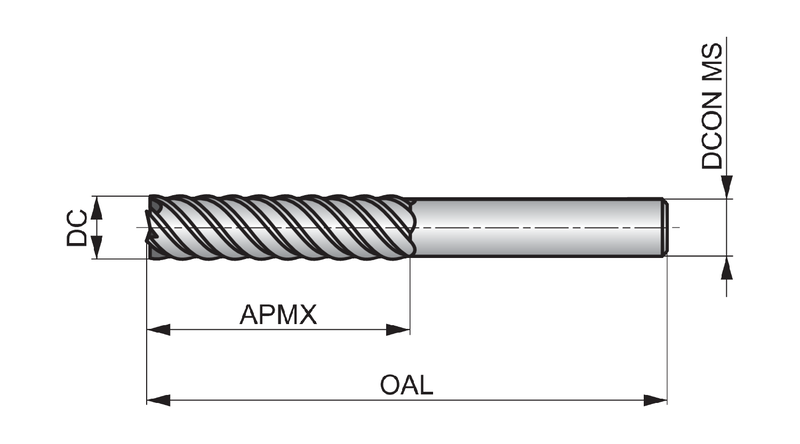

Dimensions
Cutting Diameter — in (DC)0.709"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)4.921"
Overall Length — mm (OAL)125.0 mm
Length × Diameter Ratio7xD
Connection Dia. — in (DCON)0.709"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)45.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8961996
EAN3603607423882
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S98618.0 — 3D Model STP Download
S98618.0 — 2D Model DXF Download
S98618.0 — Line Drawing PDF Download
