UGC DOR8961997
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$271.16 CAD - $271.16 CAD
$271.16 CAD
$271.16 CAD - $271.16 CAD
$271.16 CAD

Vendu en lots de : 1

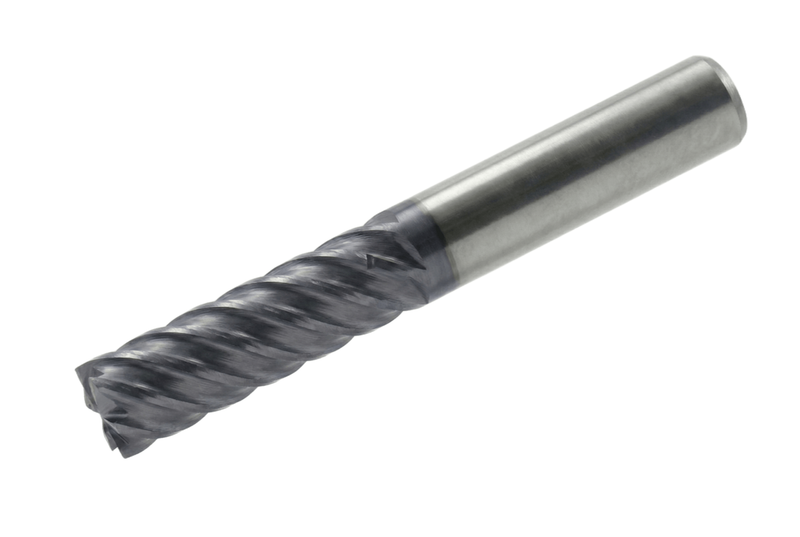

Outil rond avec diamètre de coupe de 20 mm, profondeur de coupe maximale de 57 mm et longueur totale de 125 mm. DCON MS 20 mm avec queue cylindrique DIN 6535 HA. Revêtement TiAlN. Convient pour M - Acier inoxydable (aciers résistants à la corrosion avec une teneur en chrome ≥ 11 %), P - Acier et acier moulé (aciers avec une teneur en alliage ≤ 10 % et une dureté < 45HRC), K - Fonte (moulages de fer et d'alliages de carbone avec une teneur en carbone > 2 %).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S98620.0
GradeTiAlN
Product Number8961997
Product FamilyS986
Insert Geometry
Depth of Cut Max — in (APMX)2.244"
Depth of Cut Max — mm (APMX)57.0 mm

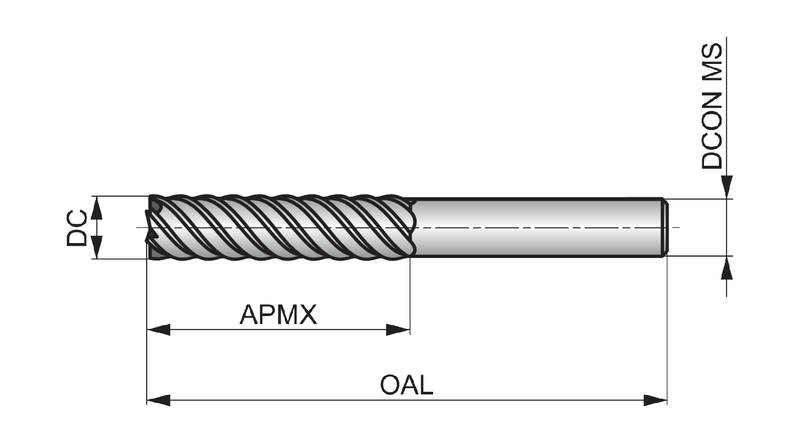

Dimensions
Cutting Diameter — in (DC)0.787"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)4.921"
Overall Length — mm (OAL)125.0 mm
Length × Diameter Ratio6xD
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)45.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8961997
EAN3603607423899
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S98620.0 — 3D Model STP Download
S98620.0 — 2D Model DXF Download
S98620.0 — Line Drawing PDF Download
