UGC DOR8962110
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$65.54 CAD - $65.54 CAD
$65.54 CAD
$65.54 CAD - $65.54 CAD
$65.54 CAD

Vendu en lots de : 1

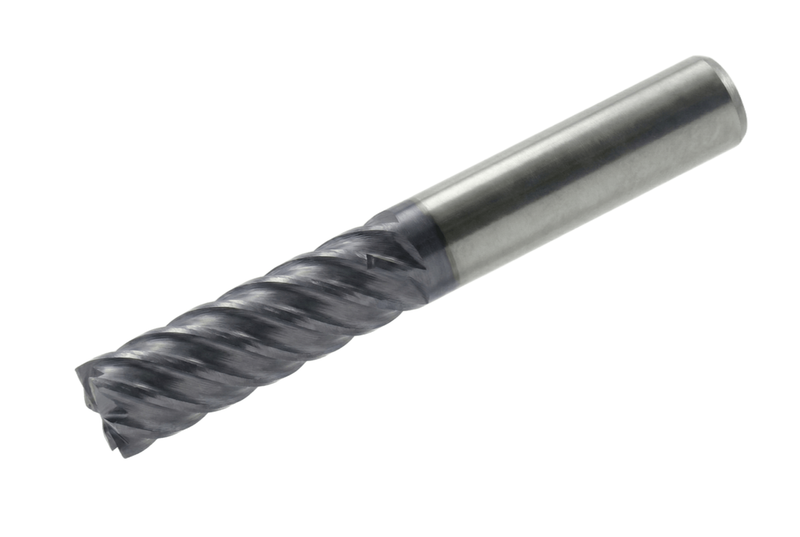

Outil rond d'un diamètre de coupe de 7,94 mm, d'une profondeur de coupe maximale de 28,575 mm et d'une longueur totale de 76,2 mm. DCON MS 7,94 mm avec queue cylindrique DIN 6535 HA. Revêtement TiAlN. Convient pour M - Acier inoxydable (aciers résistant à la corrosion avec une teneur en chrome ≥ 11%), P - Acier et acier moulé (aciers avec une teneur en alliage ≤ 10% et une dureté < 45HRC), K - Fonte (moulages d'alliages de fer et de carbone avec une teneur en carbone > 2%).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9865/16
GradeTiAlN
Product Number8962110
Product FamilyS986
Insert Geometry
Depth of Cut Max — in (APMX)1.125"
Depth of Cut Max — mm (APMX)28.575 mm

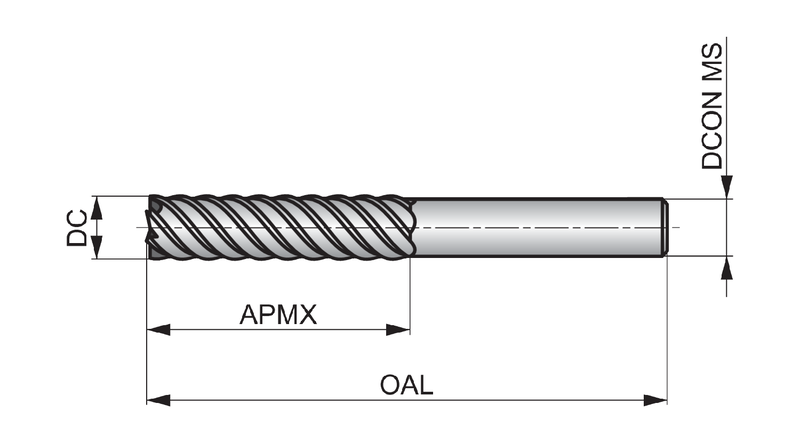

Dimensions
Cutting Diameter — in (DC)0.313"
Cutting Diameter — mm (DC)7.94 mm
Cutting Diameter — Fractional16 mai
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Length × Diameter Ratio10x
Connection Dia. — in (DCON)0.313"
Connection Dia. — mm (DCON)7.94 mm
Number of Flutes (NOF)6
Helix Angle (FHA)45.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8962110
EAN3603607425022
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9865/16 — 3D Model STP Download
S9865/16 — 2D Model DXF Download
S9865/16 — Line Drawing PDF Download
