UGC DOR8961990
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.81 CAD - $41.81 CAD
$41.81 CAD
$41.81 CAD - $41.81 CAD
$41.81 CAD

Vendu en lots de : 1

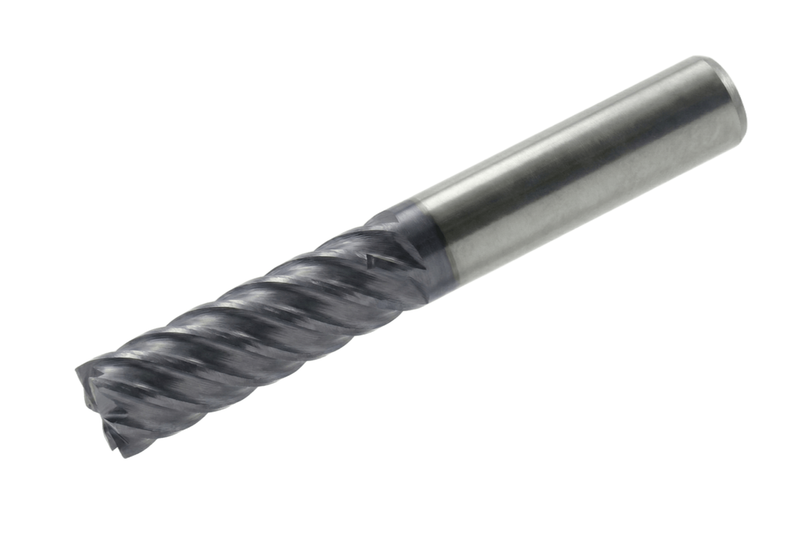

Outil rond avec diamètre de coupe de 6 mm, profondeur de coupe maximale de 31 mm et longueur totale de 75 mm. Queue cylindrique DCON MS 6 mm DIN 6535 HA. Revêtement TiAlN. Convient pour M - Acier inoxydable (aciers résistants à la corrosion avec ≥ 11 % de chrome), P - Acier et acier moulé (aciers alliés à ≤ 10 % et une dureté < 45HRC), K - Fonte (moulages d'alliages de fer et de carbone avec > 2 % de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9866.0
GradeTiAlN
Product Number8961990
Product FamilyS986
Insert Geometry

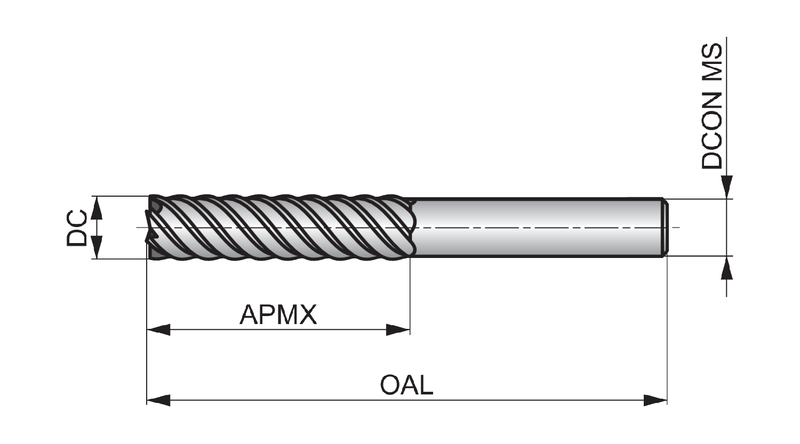

Depth of Cut Max — in (APMX)1.22"
Depth of Cut Max — mm (APMX)31.0 mm
Dimensions
Cutting Diameter — in (DC)0.236"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.953"
Overall Length — mm (OAL)75.0 mm
Length × Diameter Ratio13xRéf.
Connection Dia. — in (DCON)0.236"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)45.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8961990
EAN3603607423820
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9866.0 — 3D Model STP Download
S9866.0 — 2D Model DXF Download
S9866.0 — Line Drawing PDF Download
