S9869/16
S9869/16
S9869/16
S9869/16

S9869/16

UGC DOR8962116
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$149.06 CAD - $149.06 CAD
$149.06 CAD
$149.06 CAD - $149.06 CAD
$149.06 CAD

Vendu en lots de : 1

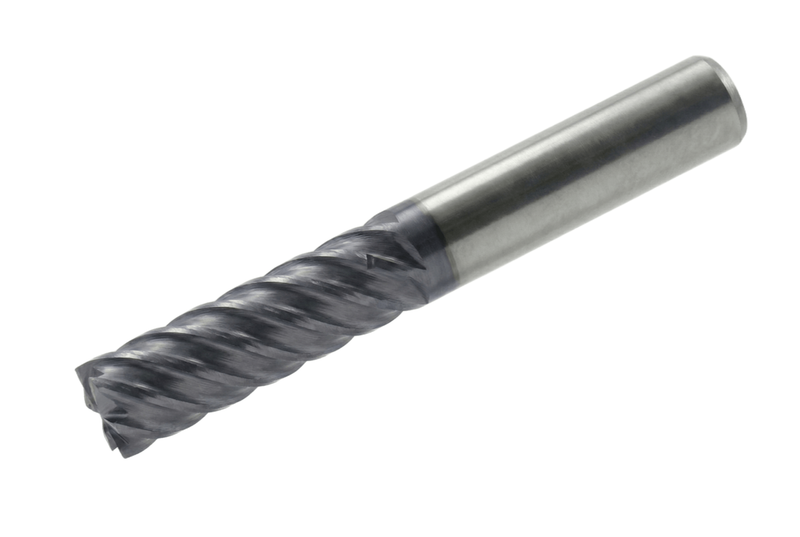

Outil rond avec diamètre de coupe 14,29 mm, profondeur de coupe maximale 50,8 mm et longueur totale 101,6 mm. DCON MS 14,29 mm avec queue cylindrique DIN 6535 HA. Revêtement TiAlN. Convient pour M - Acier inoxydable (aciers résistants à la corrosion avec ≥ 11 % de chrome), P - Acier et acier moulé (aciers avec teneur en alliage ≤ 10 % et une dureté de < 45HRC), K - Fonte (moulages de fer et d'alliages de carbone avec > 2 % de carbone).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9869/16
GradeTiAlN
Product Number8962116
Product FamilyS986
Insert Geometry
Depth of Cut Max — in (APMX)2.0"
Depth of Cut Max — mm (APMX)50.8 mm

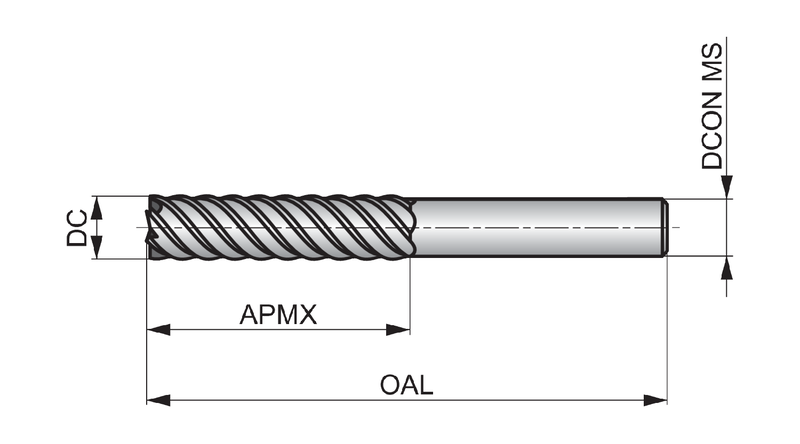

Dimensions
Cutting Diameter — in (DC)0.563"
Cutting Diameter — mm (DC)14.29 mm
Cutting Diameter — Fractional16/9
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Length × Diameter Ratio7xD
Connection Dia. — in (DCON)0.563"
Connection Dia. — mm (DCON)14.29 mm
Number of Flutes (NOF)6
Helix Angle (FHA)45.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number8962116
EAN3603607425084
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Utilisation possible
File Type Download
S9869/16 — 3D Model STP Download
S9869/16 — 2D Model DXF Download
S9869/16 — Line Drawing PDF Download
