UGC DOR8985044
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.04 CAD - $14.04 CAD
$14.04 CAD
$14.04 CAD - $14.04 CAD
$14.04 CAD

Vendu en lots de : 10

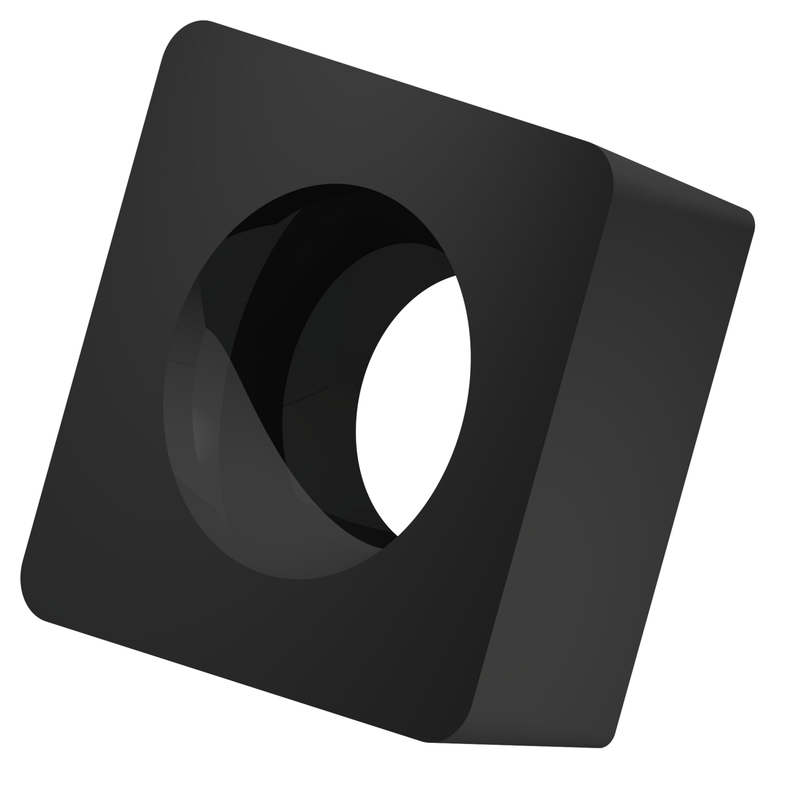

Plaquette de tournage positive simple face, S - carrée, taille 9 avec un rayon de coin de 0,8 mm. La combinaison de brise-copeaux .CMW est conçue pour l'usinage moyen des fontes. Elle présente un angle de coupe neutre sans T-land. Elle convient également sous certaines conditions aux matériaux durs. Le substrat T5405 en WC-Co, revêtu de MT-CVD, convient aux matériaux : K - Fonte (moulages d'alliages de fer et de carbone avec > 2 % de carbone) et coupe légèrement interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SCMW 32.52:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8985044
Product FamilySCMW
Insert Geometry
Insert DesignSCMG
Insert Shape Code (SC)C - carré

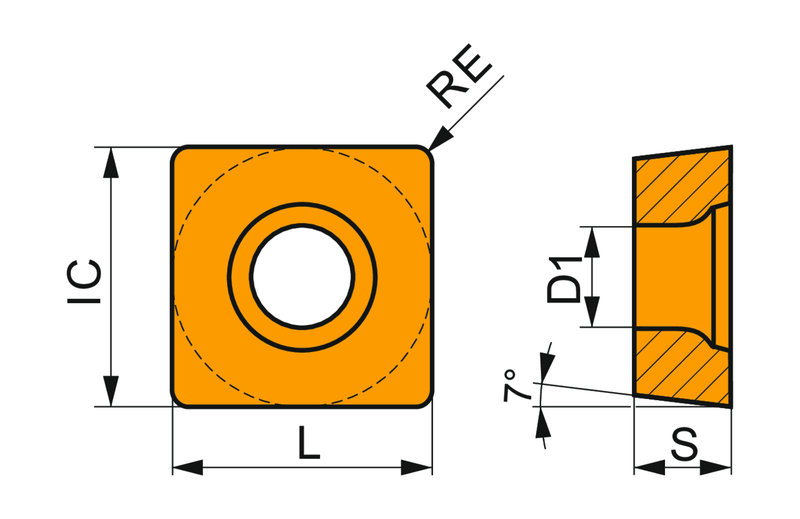

Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.177"
Depth of Cut Max — mm (APMX)4.5 mm
Tool Information
Tool DesignCS
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985044
EAN3603604774512
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
SCMW 32.52:T5405 — Line Drawing PDF Download
