SNMA 432:T5405
SNMA 432:T5405
SNMA 432:T5405
SNMA 432:T5405

SNMA 432:T5405

UGC DOR8984975
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.04 CAD - $14.04 CAD
$14.04 CAD
$14.04 CAD - $14.04 CAD
$14.04 CAD

Vendu en lots de : 10

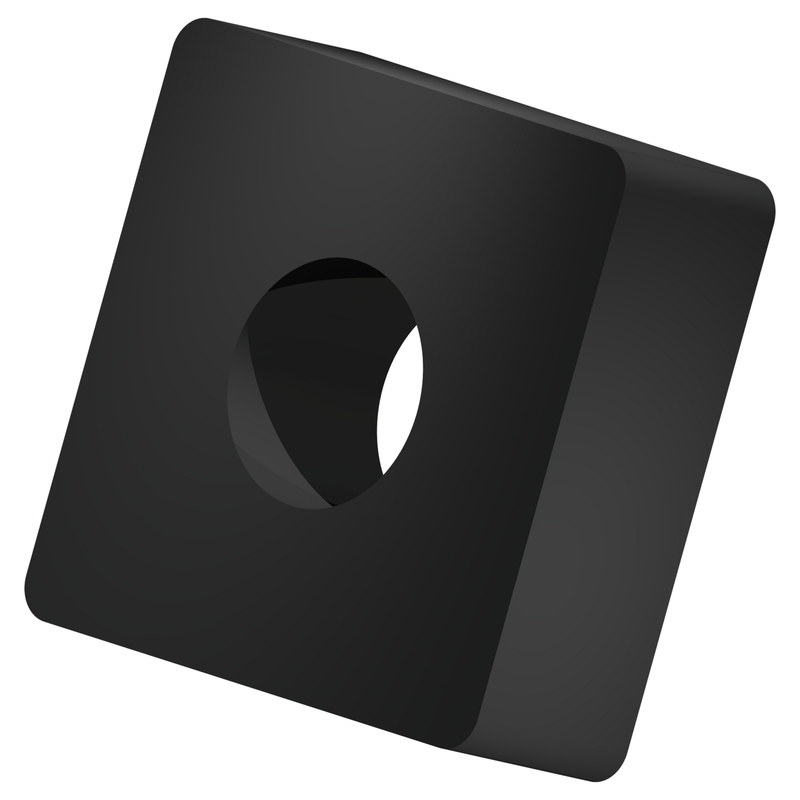

Plaquette négative double face, S - carrée, taille 12 avec un rayon de coin de 0,8 mm. La combinaison du brise-copeaux .NMA plat est conçue pour l'usinage moyen de la fonte. Elle présente un angle de coupe neutre sans T-land. Elle convient également de manière conditionnelle aux matériaux durs. Et un substrat T5405 en WC-Co revêtu MT-CVD. Convient aux matériaux : K - Fonte (pièces moulées en alliages de fer et de carbone avec > 2 % de teneur en carbone) et coupe légèrement interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMA 432:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8984975
Product FamilyAMNE
Insert Geometry
Insert DesignSNMA
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Tool DesignSN
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8984975
EAN3603604772822
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
SNMA 432:T5405 — Line Drawing PDF Download
