SNMA 543:T5405
SNMA 543:T5405
SNMA 543:T5405
SNMA 543:T5405

SNMA 543:T5405

UGC DOR8984978
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.29 CAD - $22.29 CAD
$22.29 CAD
$22.29 CAD - $22.29 CAD
$22.29 CAD

Vendu en lots de : 10

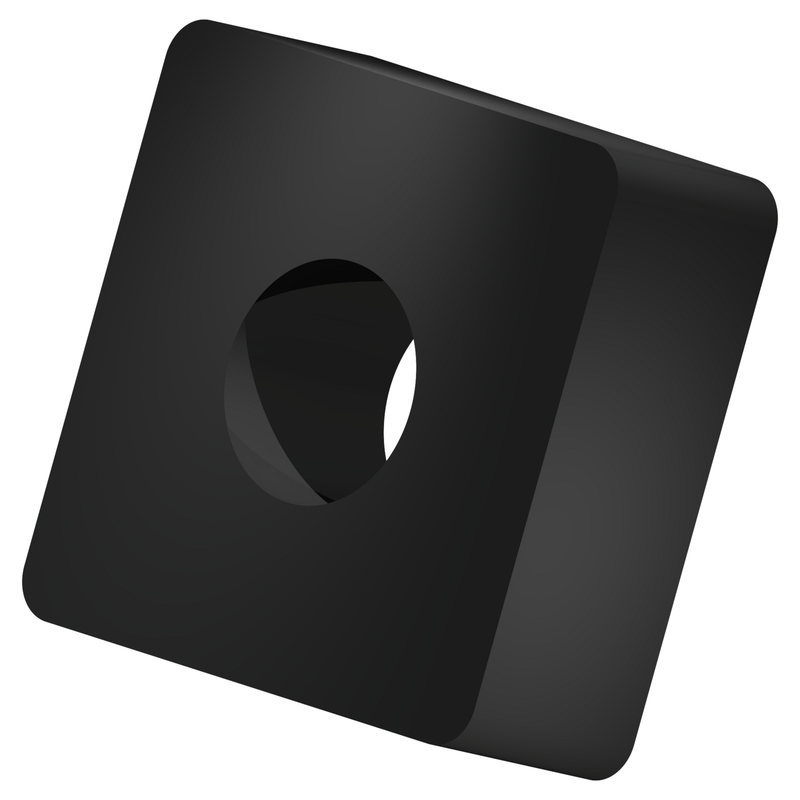

Plaquette négative double face, S - carrée, taille 15 avec un rayon de coin de 1,2 mm. La combinaison de brise-copeaux .NMA plate est conçue pour l'usinage moyen de la fonte. Elle présente un angle de coupe neutre sans T-land. Elle convient également, sous certaines conditions, aux matériaux durs. Et le substrat T5405, à base de WC-Co, revêtu MT-CVD, convient aux matériaux : K - Fonte (moulages d'alliages de fer et de carbone avec > 2 % de teneur en carbone) et coupe légèrement interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMA 543:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8984978
Product FamilyANEM
Insert Geometry
Insert DesignANEM
Insert Shape Code (SC)C - carré

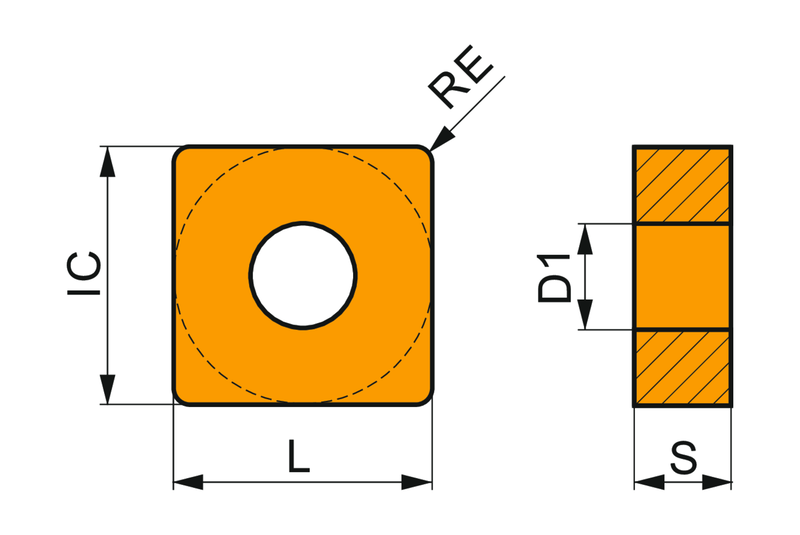

Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.875 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.28"
Depth of Cut Max — mm (APMX)7.1 mm
Tool Information
Tool DesignSN
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8984978
EAN3603604772853
Material Group Suitability
K — Cast Iron Usage principal
