SNMA 643:T5405
SNMA 643:T5405
SNMA 643:T5405
SNMA 643:T5405

SNMA 643:T5405

UGC DOR8984980
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.14 CAD - $30.14 CAD
$30.14 CAD
$30.14 CAD - $30.14 CAD
$30.14 CAD

Vendu en lots de : 10

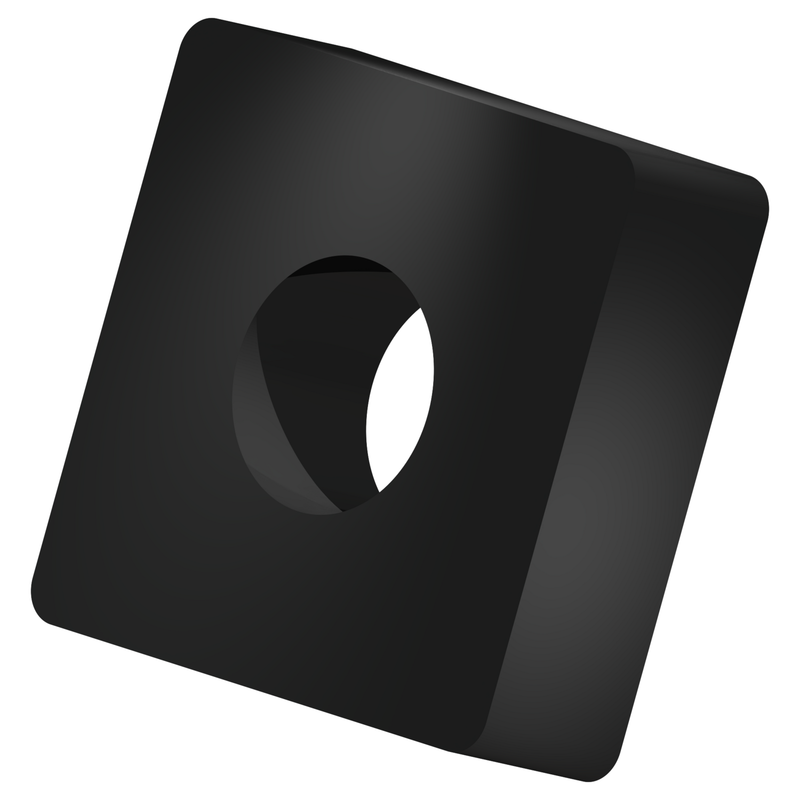

Plaquette négative double-face, S - carrée, taille 19 avec un rayon de bec de 1,2 mm. La combinaison brise-copeaux .NMA plate est conçue pour l'usinage moyen de la fonte. Elle présente un angle de dépouille neutre sans méplat. Elle est également conditionnellement adaptée aux matériaux durs, et revêtue MT-CVD, substrat T5405 à base WC-Co. Elle convient aux matériaux : K - Fonte (moulages d'alliages de fer et de carbone avec > 2 % de carbone) et coupe légèrement interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMA 643:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8984980
Product FamilyAMNS
Insert Geometry
Insert DesignSNMA
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.35"
Depth of Cut Max — mm (APMX)8.9 mm
Tool Information
Tool DesignSN
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8984980
EAN3603604772877
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
SNMA 643:T5405 — Line Drawing PDF Download
