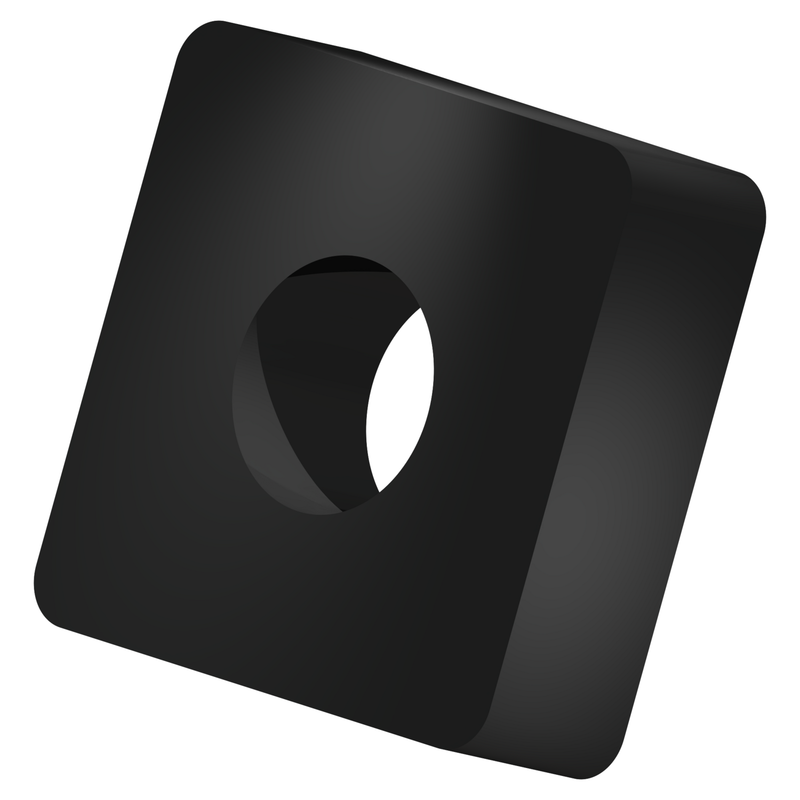

SNMA 644:T5405
SNMA 644:T5405
SNMA 644:T5405
SNMA 644:T5405

SNMA 644:T5405

UGC DOR8984981
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.14 CAD - $30.14 CAD
$30.14 CAD
$30.14 CAD - $30.14 CAD
$30.14 CAD

Vendu en lots de : 10

Plaquette négative double face, S - carrée, taille 19 avec rayon de bec de 1,6 mm. La combinaison de brise-copeaux .NMA, plaquette plate, est conçue pour l'usinage moyen des fontes. Elle présente un angle de dépouille neutre sans listel. Elle convient également sous certaines conditions aux matériaux durs. Substrat T5405 en WC-Co revêtu MT-CVD, adapté aux matériaux : K - fonte (pièces moulées en alliages de fer et de carbone avec une teneur en carbone > 2 %) et coupe légèrement interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMA 644:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8984981
Product FamilyAssociation Nationale des Étudiants en Médecine
Insert Geometry
Insert DesignSNMA
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.35"
Depth of Cut Max — mm (APMX)8.9 mm
Tool Information
Tool DesignSN
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8984981
EAN3603604772884
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
SNMA 644:T5405 — Line Drawing PDF Download
