SNMA 856:T5405
SNMA 856:T5405
SNMA 856:T5405
SNMA 856:T5405

SNMA 856:T5405

UGC DOR8984983
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$55.64 CAD - $55.64 CAD
$55.64 CAD
$55.64 CAD - $55.64 CAD
$55.64 CAD

Vendu en lots de : 10

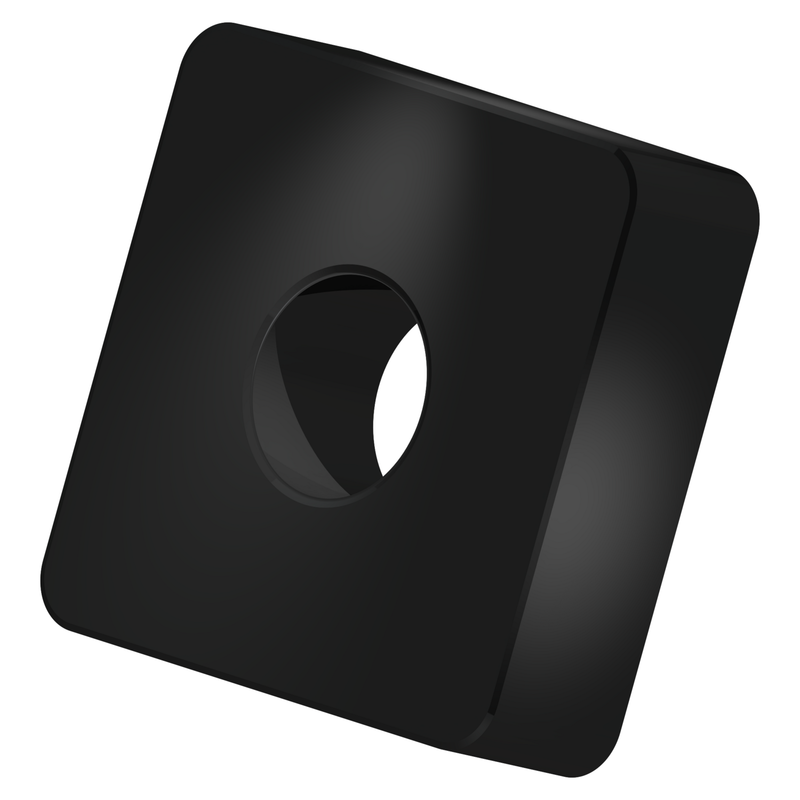

Plaquette de tournage négative double face, S - carrée, taille 25 avec rayon de coin de 2,4 mm. La combinaison de brise-copeaux .NMA plate est conçue pour l'usinage moyen des fontes. Elle présente un angle de coupe neutre sans T-land. Elle est également conditionnellement adaptée aux matériaux durs. Et le substrat WC-Co basé T5405, revêtu MT-CVD. convient aux matériaux : K - Fonte (moulages de fer et d'alliages de carbone avec > 2 % de teneur en carbone) et coupe légèrement interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMA 856:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8984983
Product FamilySNMA
Insert Geometry
Insert DesignSNMA
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.472"
Depth of Cut Max — mm (APMX)12.0 mm
Tool Information
Tool DesignSN
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8984983
EAN3603604772907
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
SNMA 856:T5405 — Line Drawing PDF Download
