SNMG 432-KR:T5405
SNMG 432-KR:T5405
SNMG 432-KR:T5405
SNMG 432-KR:T5405

SNMG 432-KR:T5405

UGC DOR8984987
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.04 CAD - $14.04 CAD
$14.04 CAD
$14.04 CAD - $14.04 CAD
$14.04 CAD

Vendu en lots de : 10

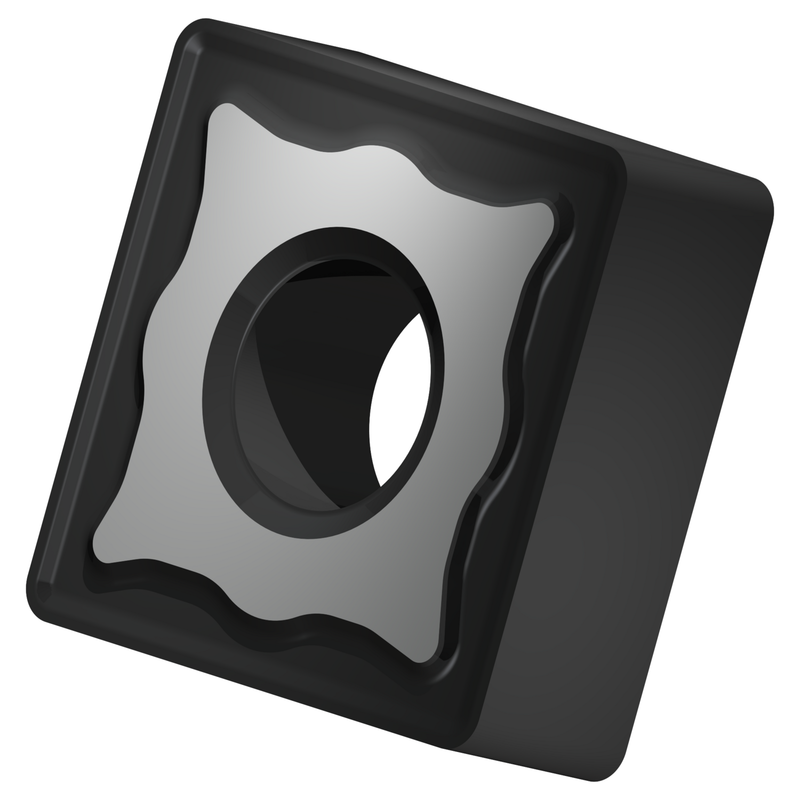

Plaquette de tournage négative double face, S - carrée, taille 12 avec rayon de coin de 0,8 mm. Combinaison du brise-copeaux Le brise-copeaux KR est robuste et le premier choix pour l'ébauche de la fonte. Il présente un angle de coupe légèrement positif et une large dépouille. Il convient également aux aciers et, sous certaines conditions, aux matériaux durs. Substrat T5405 en WC-Co, revêtu MT-CVD. Convient aux matériaux : K - fonte (pièces moulées en fer et alliages de carbone avec > 2 % de teneur en carbone) et coupe légèrement interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMG 432-KR:T5405
GradeT5405
Chipbreaker (CBMD)Corée du Sud
Product Number8984987
Product FamilySNMG
Insert Geometry
Insert DesignGCMA
Insert Shape Code (SC)S - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.276"
Depth of Cut Max — mm (APMX)7.0 mm
Tool Information
Tool DesignSN
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8984987
EAN3603604772945
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
SNMG 432-KR:T5405 — Line Drawing PDF Download
