SPMR 322-46:T9425
SPMR 322-46:T9425
SPMR 322-46:T9425
SPMR 322-46:T9425

SPMR 322-46:T9425

UGC DOR8986040
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.61 CAD - $11.61 CAD
$11.61 CAD
$11.61 CAD - $11.61 CAD
$11.61 CAD

Vendu en lots de : 10

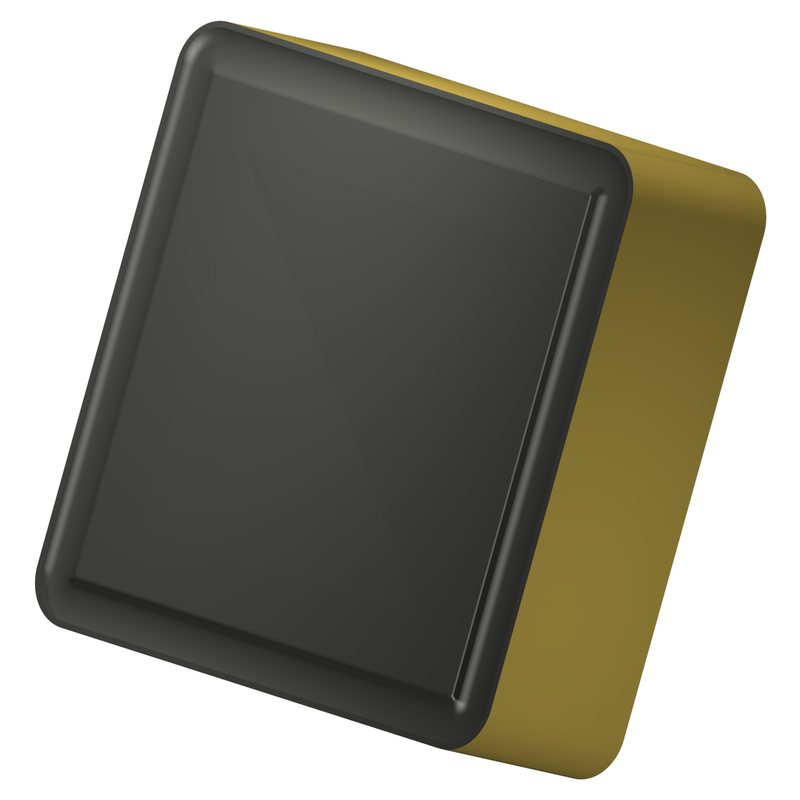

Plaquette de tournage positive simple face, S - carrée, taille 9 avec rayon de coin de 0,8 mm. Combinaison de géométrie brise-copeaux 46 pour usinage fin à de finition, et coupes continues à interrompues. Et substrat T9425 revêtu MT-CVD, à gradient fonctionnel, conçu principalement pour les matériaux du groupe P. Convient aux matériaux : P - Acier et acier moulé (aciers avec teneur en alliage ≤ 10 % et une dureté < 45 HRC), K - Fonte (moulages de fer et d'alliages de carbone avec > 2 % de teneur en carbone) et coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SPMR 322-46:T9425
GradeT9425
Chipbreaker (CBMD)46
Product Number8986040
Product FamilySPMR
Insert Geometry
Insert DesignRMPM
Insert Shape Code (SC)C - carré

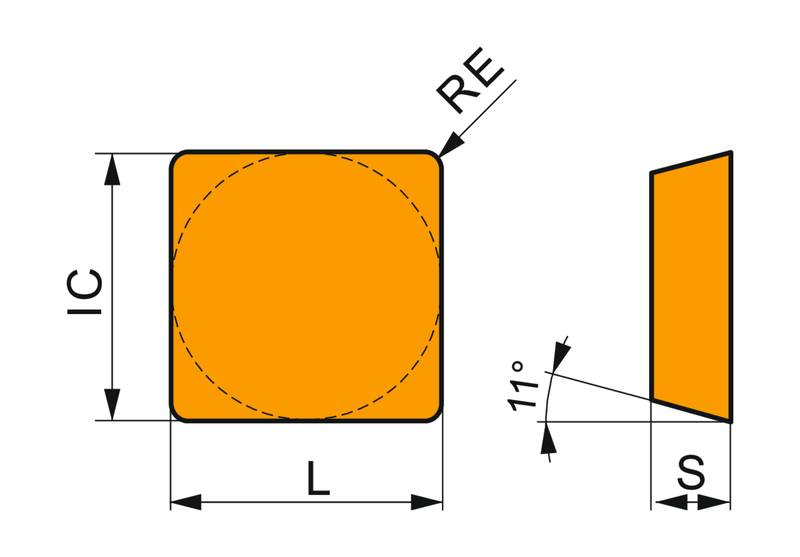

Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Tool DesignPV
SubstrateSubstrat à gradient fonctionnel
Reference Numbers
EDP Number8986040
EAN3603604778459
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
SPMR 322-46:T9425 — Line Drawing PDF Download
