TCMW 21.51:T5405
TCMW 21.51:T5405
TCMW 21.51:T5405
TCMW 21.51:T5405

TCMW 21.51:T5405

UGC DOR8985048
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.54 CAD - $11.54 CAD
$11.54 CAD
$11.54 CAD - $11.54 CAD
$11.54 CAD

Vendu en lots de : 10

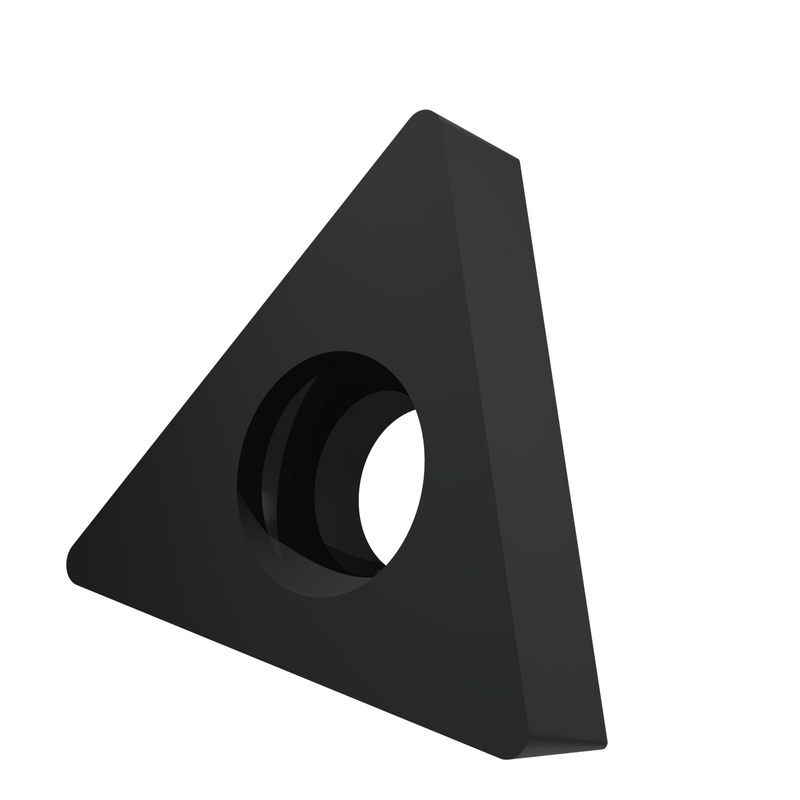

Plaquette de tournage positive simple face, T - triangulaire angle de 60°, taille 11 avec rayon de bec de 0,4 mm. La combinaison de brise-copeaux .CMW et la plaquette plate sont conçues pour l'usinage moyen des fontes. Elle présente un angle de coupe neutre sans T-land. Elle convient également aux matériaux durs sous certaines conditions. et est dotée d'un substrat T5405 en WC-Co, revêtu MT-CVD. Elle convient aux matériaux : K - Fonte (moulages de fer et d'alliages de carbone avec > 2 % de teneur en carbone) et coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TCMW 21.51:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeau
Product Number8985048
Product FamilyMTCM
Insert Geometry
Insert DesignTCMW
Insert Shape Code (SC)T - angle inclus triangulaire de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.142"
Depth of Cut Max — mm (APMX)3.6 mm
Tool Information
Tool DesignCT
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985048
EAN3603604774550
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
TCMW 21.51:T5405 — Line Drawing PDF Download
