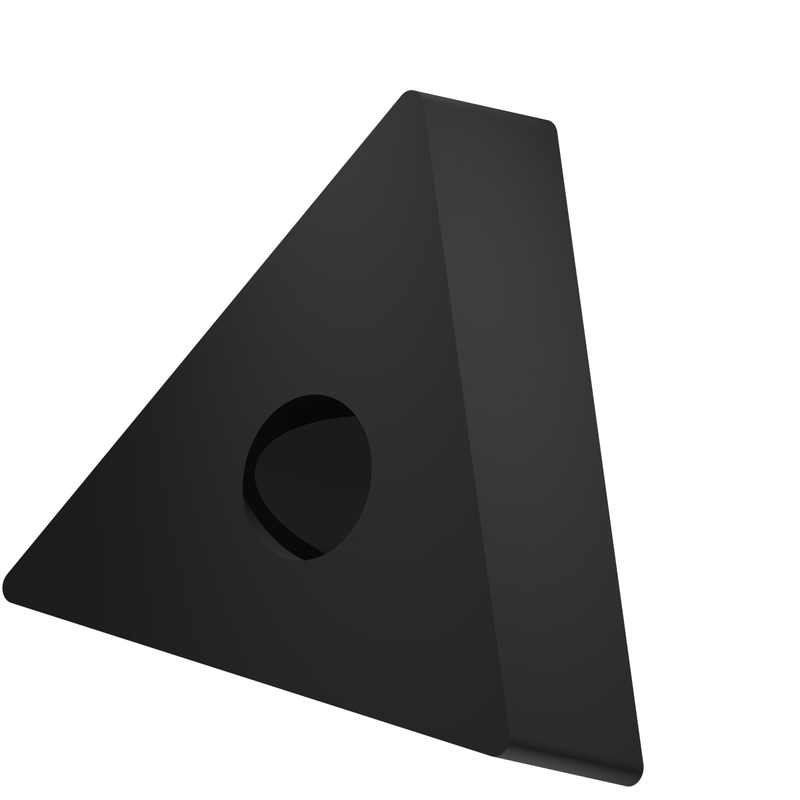

TNMA 331:T5405
TNMA 331:T5405
TNMA 331:T5405
TNMA 331:T5405

TNMA 331:T5405

UGC DOR8984995
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.97 CAD - $11.97 CAD
$11.97 CAD
$11.97 CAD - $11.97 CAD
$11.97 CAD

Vendu en lots de : 10

Plaquette négative double face, T - triangulaire 60° d'angle inclus, taille 16 avec rayon de pointe de 0,4 mm. La combinaison de brise-copeaux .NMA plat est conçue pour l'usinage moyen des fontes. Elle présente un angle de coupe neutre sans T-land. Elle est également conditionnellement adaptée aux matériaux durs. Le substrat T5405, revêtu MT-CVD, à base de WC-Co, convient aux matériaux : K - Fonte (moulages d'alliages de fer et de carbone avec > 2 % de carbone) et Usinage continu.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TNMA 331:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8984995
Product FamilyATNM
Insert Geometry
Insert DesignAGENCEMENT NATIONAL POUR LE MARCHÉ DE L'EMPLOI
Insert Shape Code (SC)T - angulaire, angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.189"
Depth of Cut Max — mm (APMX)4.8 mm
Tool Information
Tool DesignTraduction non disponible
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8984995
EAN3603604774024
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
TNMA 331:T5405 — Line Drawing PDF Download
