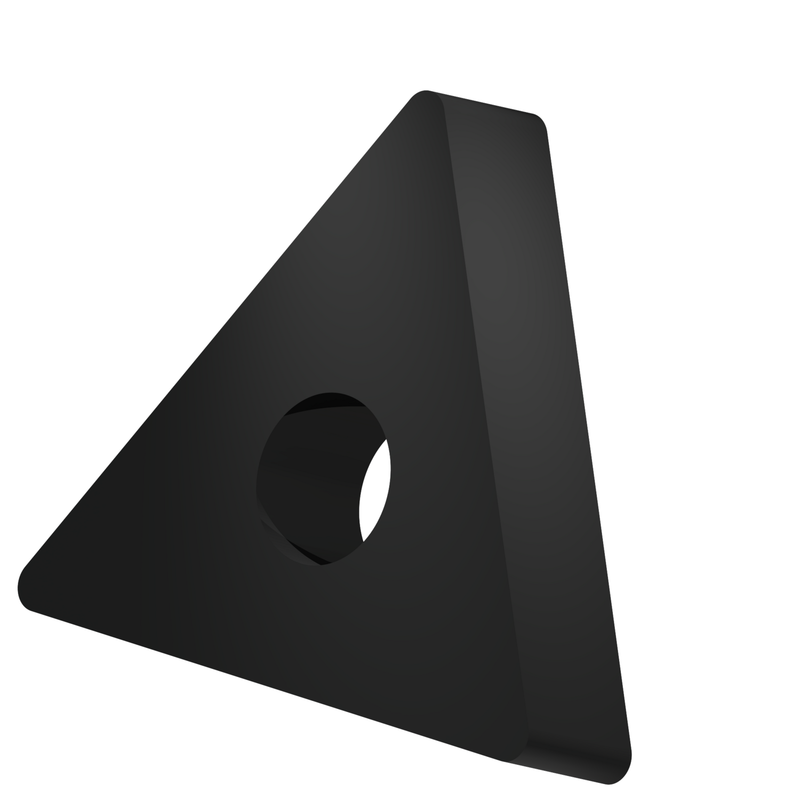

TNMA 432:T5405
TNMA 432:T5405
TNMA 432:T5405
TNMA 432:T5405

TNMA 432:T5405

UGC DOR8984999
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.07 CAD - $16.07 CAD
$16.07 CAD
$16.07 CAD - $16.07 CAD
$16.07 CAD

Vendu en lots de : 10

Plaquette négative double face, T - triangulaire 60°, taille 22 avec un rayon de bec de 0,8 mm. La combinaison de brise-copeaux .NMA plate est conçue pour l'usinage moyen des fontes. Elle présente un angle de coupe neutre sans T-land. Elle convient également sous certaines conditions aux matériaux durs. Et le substrat T5405 en WC-Co, revêtu MT-CVD. convient aux matériaux : K - Fonte (moulages de fer et d'alliages de carbone avec > 2 % de teneur en carbone) et coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TNMA 432:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8984999
Product FamilyTNMA
Insert Geometry
Insert DesignATNM
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.252"
Depth of Cut Max — mm (APMX)6.4 mm
Tool Information
Tool DesignTraduction non disponible
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8984999
EAN3603604774062
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
TNMA 432:T5405 — Line Drawing PDF Download
