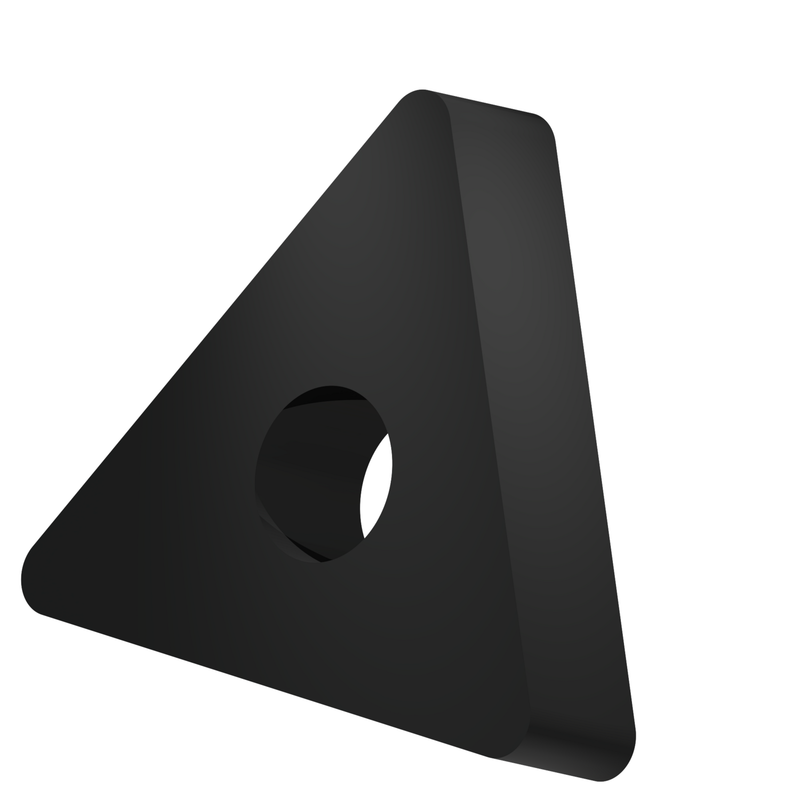

TNMA 433:T5405
TNMA 433:T5405
TNMA 433:T5405
TNMA 433:T5405

TNMA 433:T5405

UGC DOR8985000
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.07 CAD - $16.07 CAD
$16.07 CAD
$16.07 CAD - $16.07 CAD
$16.07 CAD

Vendu en lots de : 10

Plaquette négative double face, T - triangulaire 60°, taille 22 avec un rayon de bec de 1,2 mm. La combinaison de brise-copeaux .NMA plate est conçue pour l'usinage moyen de la fonte. Elle présente un angle de coupe neutre sans T-land. Elle convient également conditionnellement aux matériaux durs. et un substrat T5405 à base de WC-Co revêtu MT-CVD. Convient aux matériaux : K - Fonte (pièces moulées en alliages de fer et de carbone avec une teneur en carbone > 2 %) et coupe légèrement interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TNMA 433:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8985000
Product FamilyAMNT
Insert Geometry
Insert DesignARNM
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.252"
Depth of Cut Max — mm (APMX)6.4 mm
Tool Information
Tool DesignTraduction non disponible
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985000
EAN3603604774079
Material Group Suitability
K — Cast Iron Usage principal
