VCGT 2.520.5-FF2:T5405
VCGT 2.520.5-FF2:T5405
VCGT 2.520.5-FF2:T5405
VCGT 2.520.5-FF2:T5405

VCGT 2.520.5-FF2:T5405

UGC DOR8985060
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.36 CAD - $21.36 CAD
$21.36 CAD
$21.36 CAD - $21.36 CAD
$21.36 CAD

Vendu en lots de : 10

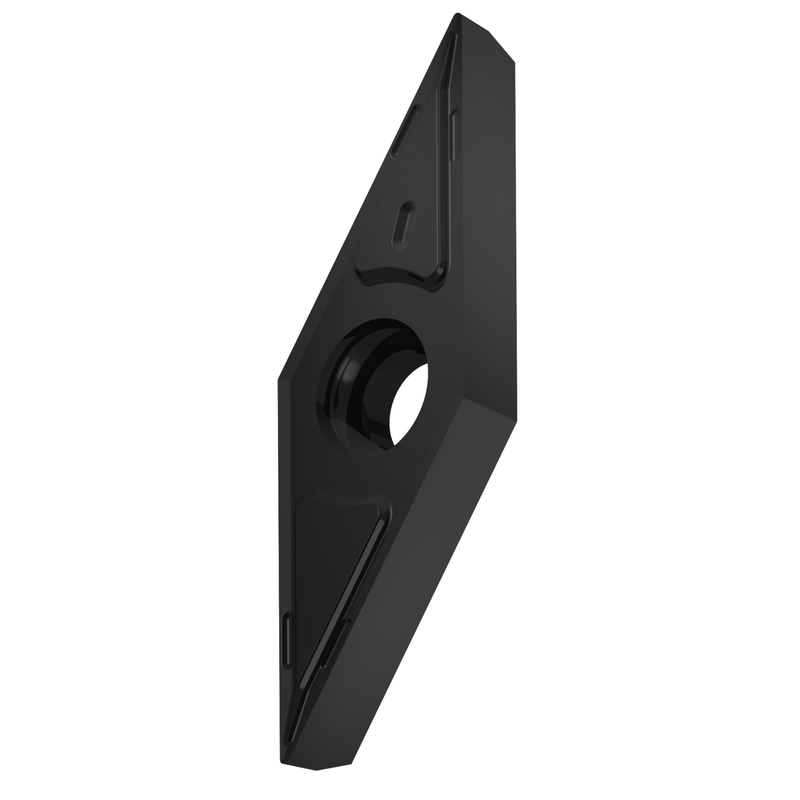

Plaquette positive simple face, V - rhomboïde angle de 35° inclus, taille 13 avec rayon de pointe de 0,2 mm. La combinaison du brise-copeaux FF2 est affûtée et le premier choix pour la super-finition des aciers. Elle présente un angle de coupe légèrement positif sans méplat de dépouille. Elle convient également aux fontes. Et un substrat T5405 en WC-Co, revêtu MT-CVD, convient aux matériaux : K - Fonte (moulages d'alliages de fer et de carbone avec > 2 % de teneur en carbone) et coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)VCGT 2.520.5-FF2:T5405
GradeT5405
Chipbreaker (CBMD)FF2
Product Number8985060
Product FamilyVCGT
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle inclus rhombique de 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.059"
Depth of Cut Max — mm (APMX)1.5 mm
Tool Information
Tool DesignCapital-risque
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985060
EAN3603604774673
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
VCGT 2.520.5-FF2:T5405 — Line Drawing PDF Download
