VCGT 2.521-FF2:T5405
VCGT 2.521-FF2:T5405
VCGT 2.521-FF2:T5405
VCGT 2.521-FF2:T5405

VCGT 2.521-FF2:T5405

UGC DOR8985061
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.21 CAD - $20.21 CAD
$20.21 CAD
$20.21 CAD - $20.21 CAD
$20.21 CAD

Vendu en lots de : 10

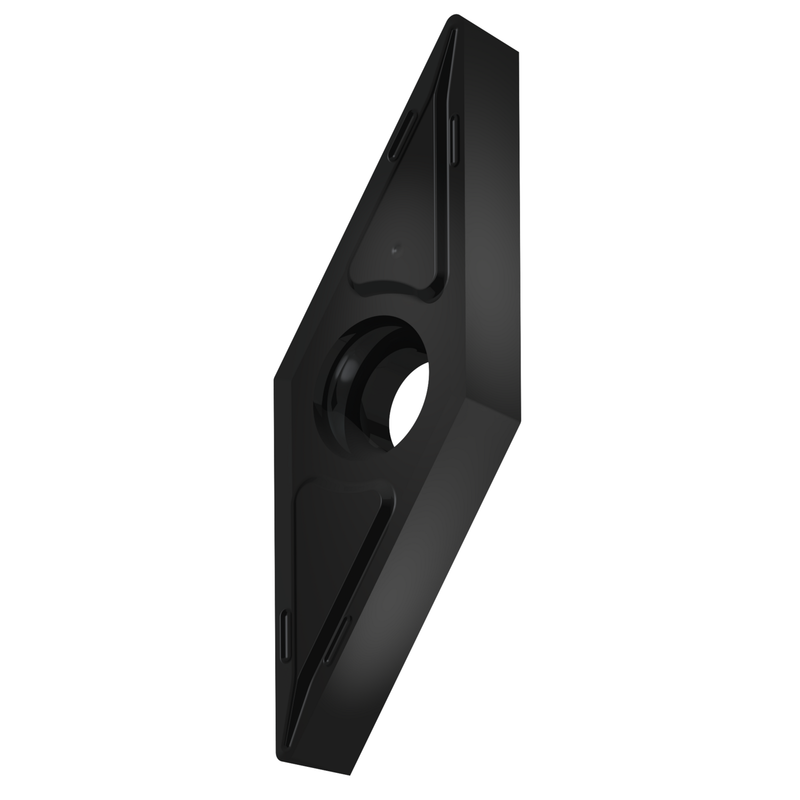

Plaquette de tournage positive simple face, V - rhomboïde 35° d'angle inclus, taille 13 avec rayon de bec 0,4 mm. La combinaison du brise-copeaux FF2 est coupante et constitue le premier choix pour la finition fine des aciers. Elle présente un angle de coupe légèrement positif sans méplat de dépouille. Elle convient également aux fontes. Le substrat T5405 en WC-Co, revêtu MT-CVD, convient aux matériaux : K - Fonte (moulages d'alliages de fer et de carbone avec > 2 % de teneur en carbone) et coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)VCGT 2.521-FF2:T5405
GradeT5405
Chipbreaker (CBMD)FF2
Product Number8985061
Product FamilyTVCG

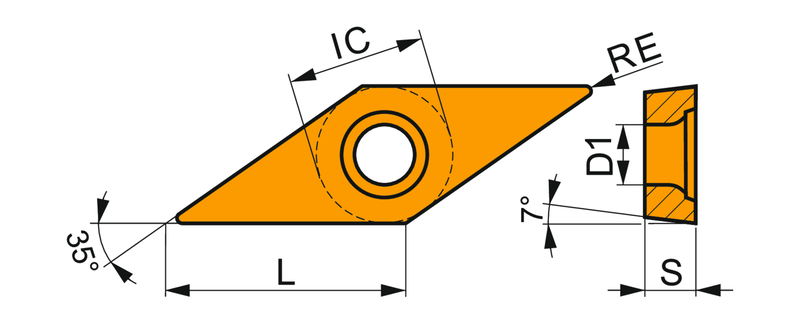

Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle de 35° inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Tool DesignCapital-risque
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985061
EAN3603604774680
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
VCGT 2.521-FF2:T5405 — Line Drawing PDF Download
