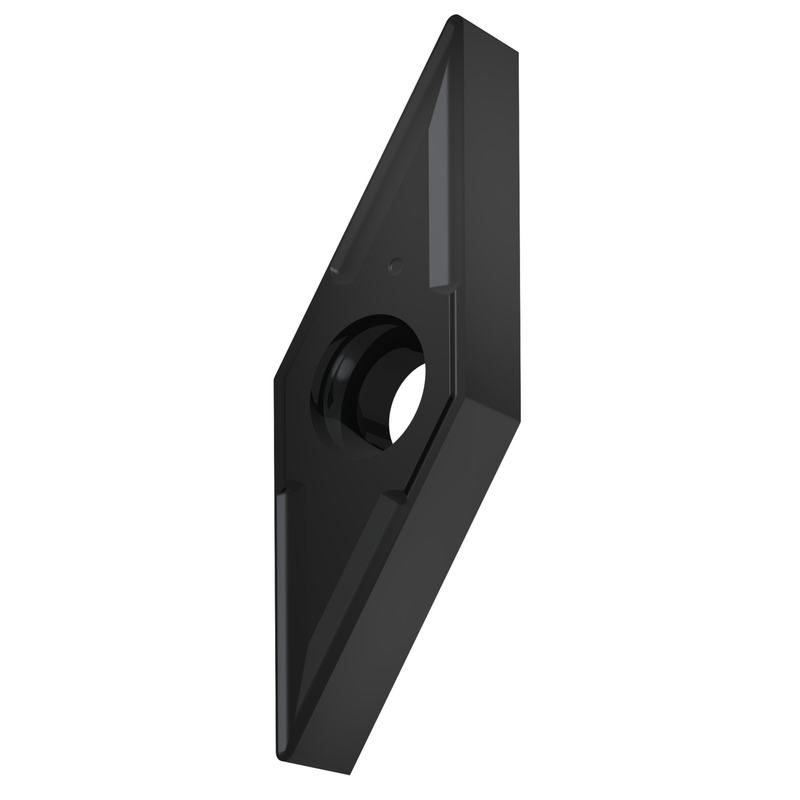

VCGT 2.521-NF2:T5405
VCGT 2.521-NF2:T5405
VCGT 2.521-NF2:T5405
VCGT 2.521-NF2:T5405

VCGT 2.521-NF2:T5405

UGC DOR8985062
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.21 CAD - $20.21 CAD
$20.21 CAD
$20.21 CAD - $20.21 CAD
$20.21 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, V - rhomboïde angle inclus de 35°, taille 13 avec rayon de bec de 0,4 mm. La combinaison du brise-copeaux NF2 est tranchante et constitue le premier choix pour la finition des aciers inoxydables. Elle présente un angle de coupe positif sans méplat. Elle convient également aux superalliages et, sous certaines conditions, aux aciers, aux fontes et aux alliages non ferreux. Le substrat T5405 en WC-Co, revêtu MT-CVD, convient aux matériaux : [MA3] et à la coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)VCGT 2.521-NF2:T5405
GradeT5405
Chipbreaker (CBMD)NF2
Product Number8985062
Product FamilyVCGT
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle de 35° inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.13"
Depth of Cut Max — mm (APMX)3.3 mm
Tool Information
Tool DesignCapital-risque
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985062
EAN3603604774697
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Utilisation possible
File Type Download
VCGT 2.521-NF2:T5405 — Line Drawing PDF Download
