VCGT 2.522-NF2:T5405
VCGT 2.522-NF2:T5405
VCGT 2.522-NF2:T5405
VCGT 2.522-NF2:T5405

VCGT 2.522-NF2:T5405

UGC DOR8985063
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.21 CAD - $20.21 CAD
$20.21 CAD
$20.21 CAD - $20.21 CAD
$20.21 CAD

Vendu en lots de : 10

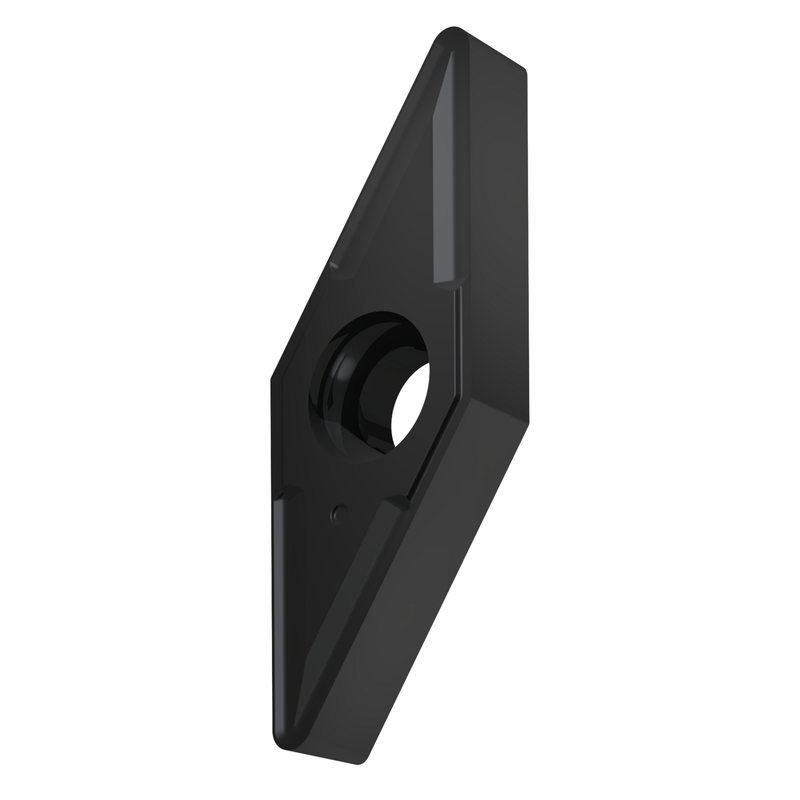

Plaquette de tournage positive simple face, V - rhomboïdale angle inclus 35°, taille 13 avec rayon de bec 0,8 mm. Combinaison de brise-copeaux NF2 : le brise-copeaux est tranchant et le premier choix pour la finition des aciers inoxydables. Il présente un angle de coupe positif sans méplat. Il convient également aux superalliages et, sous certaines conditions, aux aciers, aux fontes et aux alliages non ferreux. et le substrat T5405 à base de WC-Co revêtu MT-CVD convient aux matériaux : [MA3] et à la coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)VCGT 2.522-NF2:T5405
GradeT5405
Chipbreaker (CBMD)NF2
Product Number8985063
Product FamilyCVGT
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - Angle de 35° inclus (rhombique)
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.13"
Depth of Cut Max — mm (APMX)3.3 mm
Tool Information
Tool DesignCapital-risque
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985063
EAN3603604774703
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Utilisation possible
File Type Download
VCGT 2.522-NF2:T5405 — Line Drawing PDF Download
