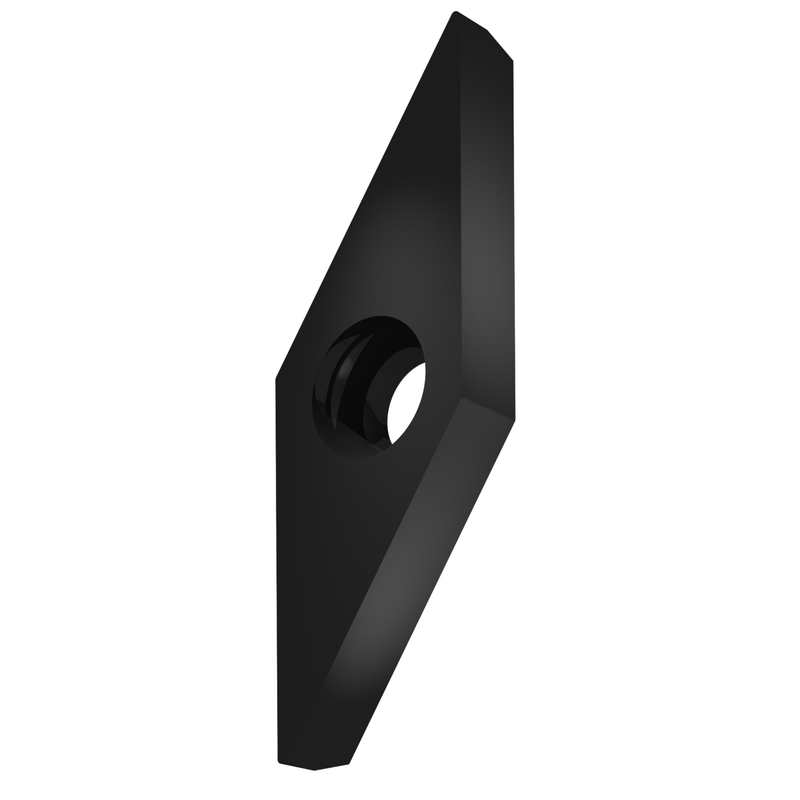

VCGW 2.520.5:T5405
VCGW 2.520.5:T5405
VCGW 2.520.5:T5405
VCGW 2.520.5:T5405

VCGW 2.520.5:T5405

UGC DOR8985053
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.40 CAD - $21.40 CAD
$21.40 CAD
$21.40 CAD - $21.40 CAD
$21.40 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, en V - angle d'arête de 35°, taille 13 avec rayon de bec de 0,2 mm. La combinaison de brise-copeaux .CMW et de plaquette plate est conçue pour l'usinage moyen des fontes. Elle présente un angle de coupe neutre sans T-land. Elle est également adaptée sous certaines conditions aux matériaux durs. Et le substrat T5405 en WC-Co avec revêtement MT-CVD convient pour les matériaux : K - Fonte (moulages en alliages de fer et de carbone avec > 2 % de teneur en carbone) et pour la coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)VCGW 2.520.5:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8985053
Product FamilyVCGW
Insert Geometry
Insert DesignVCGW
Insert Shape Code (SC)V - Angle d'ouverture 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.13"
Depth of Cut Max — mm (APMX)3.3 mm
Tool Information
Tool DesignCapital-risque
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985053
EAN3603604774604
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
VCGW 2.520.5:T5405 — Line Drawing PDF Download
