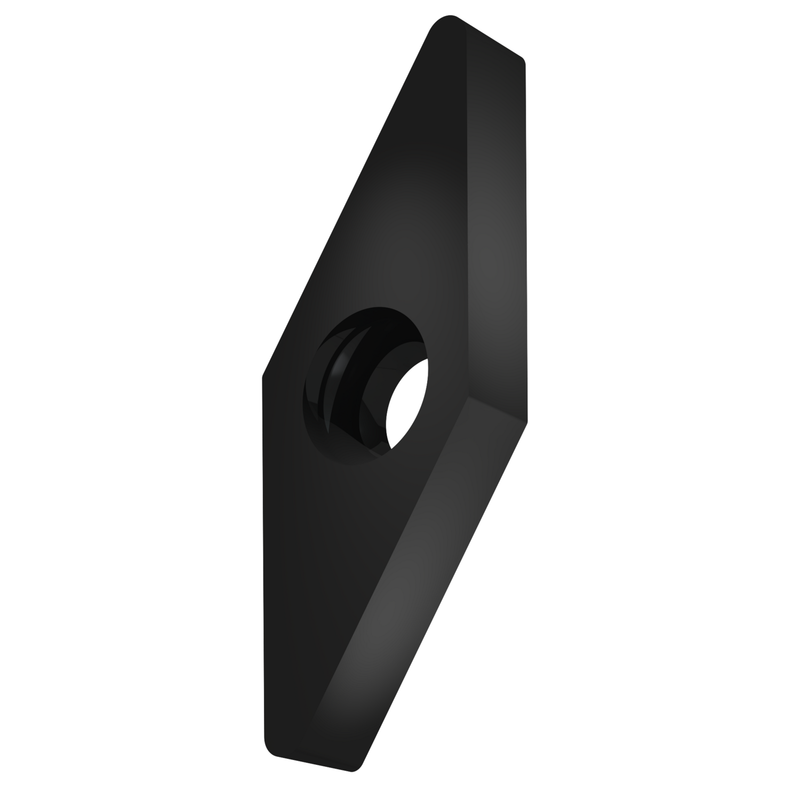

VCGW 2.522:T5405
VCGW 2.522:T5405
VCGW 2.522:T5405
VCGW 2.522:T5405

VCGW 2.522:T5405

UGC DOR8985055
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.26 CAD - $20.26 CAD
$20.26 CAD
$20.26 CAD - $20.26 CAD
$20.26 CAD

Vendu en lots de : 10

Plaquette positive simple face, V - rhomboïde angle de 35°, taille 13 avec rayon de bec de 0,8 mm. La combinaison brise-copeaux .CMW sur plaquette plate est conçue pour l'usinage moyen des fontes. Elle présente un angle de dépouille neutre sans chanfrein négatif. Elle convient également sous certaines conditions aux matériaux durs. Et le substrat WC-Co revêtu MT-CVD T5405. convient aux matériaux : K - Fonte (moulages de fer et alliages de carbone avec > 2 % de teneur en carbone) et Coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)VCGW 2.522:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8985055
Product FamilyVCGW
Insert Geometry
Insert DesignVCGW
Insert Shape Code (SC)V - angle rentrant de 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.13"
Depth of Cut Max — mm (APMX)3.3 mm
Tool Information
Tool DesignCapital-risque
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985055
EAN3603604774628
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
VCGW 2.522:T5405 — Line Drawing PDF Download
