VCMW 221:T5405
VCMW 221:T5405
VCMW 221:T5405
VCMW 221:T5405

VCMW 221:T5405

UGC DOR8985057
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.54 CAD - $20.54 CAD
$20.54 CAD
$20.54 CAD - $20.54 CAD
$20.54 CAD

Vendu en lots de : 10

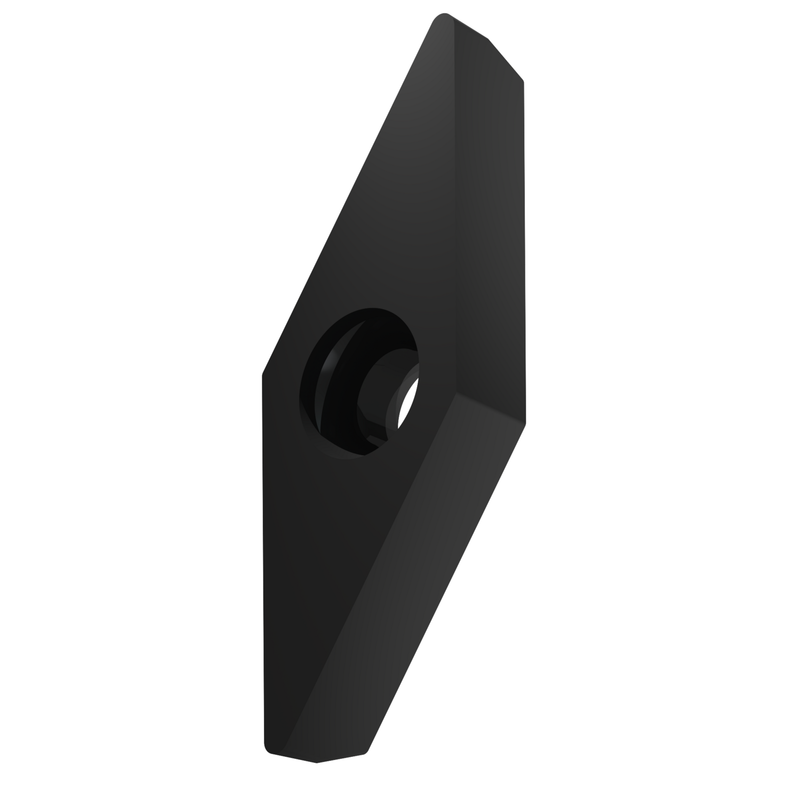

Plaquette de tournage positive simple face, V - rhomboïde, angle d'inclusion de 35°, taille 11 avec rayon de coin de 0,4 mm. La combinaison de brise-copeaux .CMW et de plaquette plate est conçue pour l'usinage moyen des fontes. Elle présente un angle de dépouille neutre sans T-land. Elle est également adaptée de manière conditionnelle aux matériaux durs. Le substrat T5405 en WC-Co, revêtu MT-CVD, convient aux matériaux suivants : K - Fonte (moulages d'alliages de fer et de carbone avec une teneur en carbone > 2 %) et coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)VCMW 221:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8985057
Product FamilyVCMW
Insert Geometry
Insert DesignMVCM
Insert Shape Code (SC)V - angle de 35° inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.094"
Depth of Cut Max — mm (APMX)2.4 mm
Tool Information
Tool DesignCapital-risque
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985057
EAN3603604774642
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
VCMW 221:T5405 — Line Drawing PDF Download
