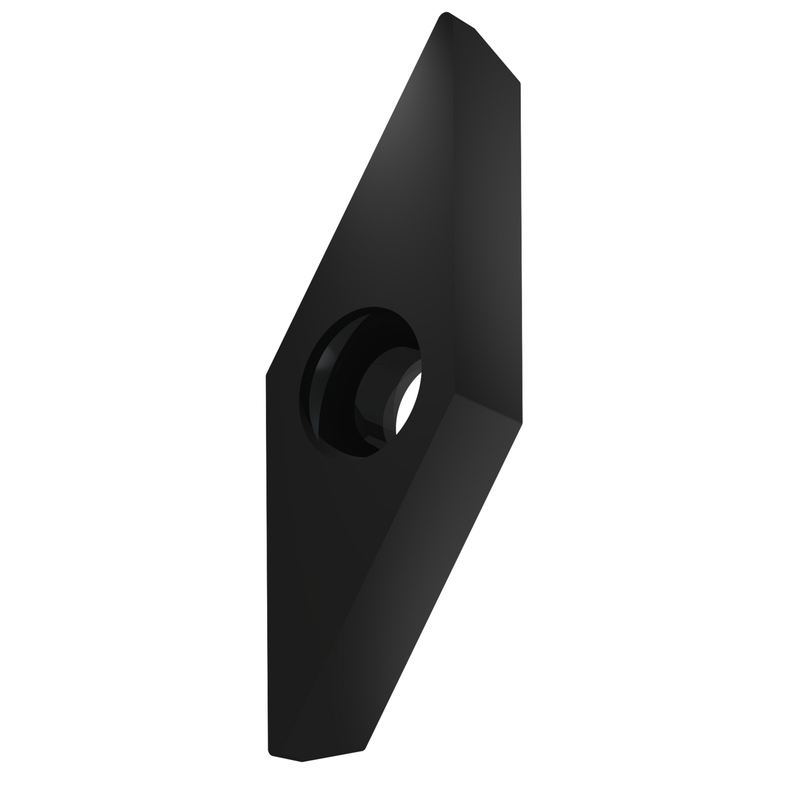

VCMW 331:T5405
VCMW 331:T5405
VCMW 331:T5405
VCMW 331:T5405

VCMW 331:T5405

UGC DOR8985058
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.69 CAD - $22.69 CAD
$22.69 CAD
$22.69 CAD - $22.69 CAD
$22.69 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, V - rhomboïdale de 35° d'angle inclus, taille 16 avec rayon de bec de 0,4 mm. La combinaison de brise-copeaux .CMW plat est conçue pour l'usinage moyen des fontes. Elle présente un angle de coupe neutre sans T-land. Elle convient également sous certaines conditions pour les matériaux durs. Le substrat T5405 est revêtu MT-CVD, à base de WC-Co, et convient aux matériaux : K - Fonte (alliages de fer et de carbone avec > 2 % de carbone) et coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)VCMW 331:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8985058
Product FamilyCVMM
Insert Geometry
Insert DesignVCMW
Insert Shape Code (SC)V - angle interne rhomboïdal 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.146"
Depth of Cut Max — mm (APMX)3.7 mm
Tool Information
Tool DesignCapital-risque
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985058
EAN3603604774659
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
VCMW 331:T5405 — Line Drawing PDF Download
