VCMW 332:T5405
VCMW 332:T5405
VCMW 332:T5405
VCMW 332:T5405

VCMW 332:T5405

UGC DOR8985059
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.69 CAD - $22.69 CAD
$22.69 CAD
$22.69 CAD - $22.69 CAD
$22.69 CAD

Vendu en lots de : 10

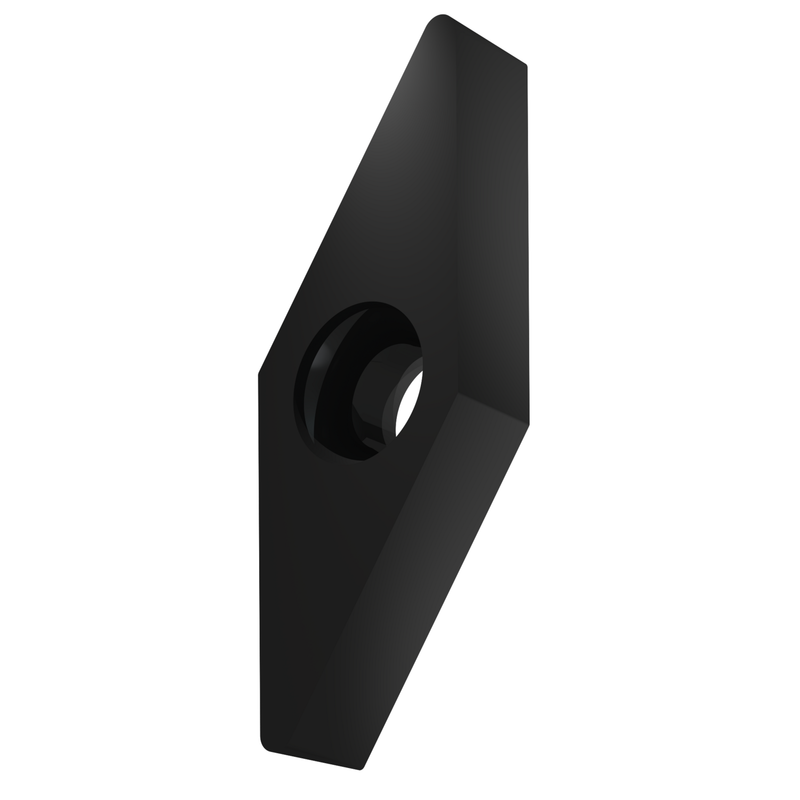

Plaquette de tournage positive simple face, V - losange angle inclus 35°, taille 16 avec rayon de pointe 0,8 mm. La combinaison de brise-copeaux .CMW et d'une plaquette plate est conçue pour l'usinage moyen de la fonte. Elle présente un angle de coupe neutre sans T-land. Elle est également conditionnellement adaptée aux matériaux durs. Et le substrat T5405 en WC-Co, revêtu MT-CVD. convient aux matériaux : K - Fonte (pièces moulées en alliages de fer et de carbone avec > 2 % de carbone) et coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)VCMW 332:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8985059
Product FamilyVCMW
Insert Geometry
Insert DesignMVCC
Insert Shape Code (SC)V - angle d'ouverture de 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.146"
Depth of Cut Max — mm (APMX)3.7 mm
Tool Information
Tool DesignCapital-risque
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985059
EAN3603604774666
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
VCMW 332:T5405 — Line Drawing PDF Download
