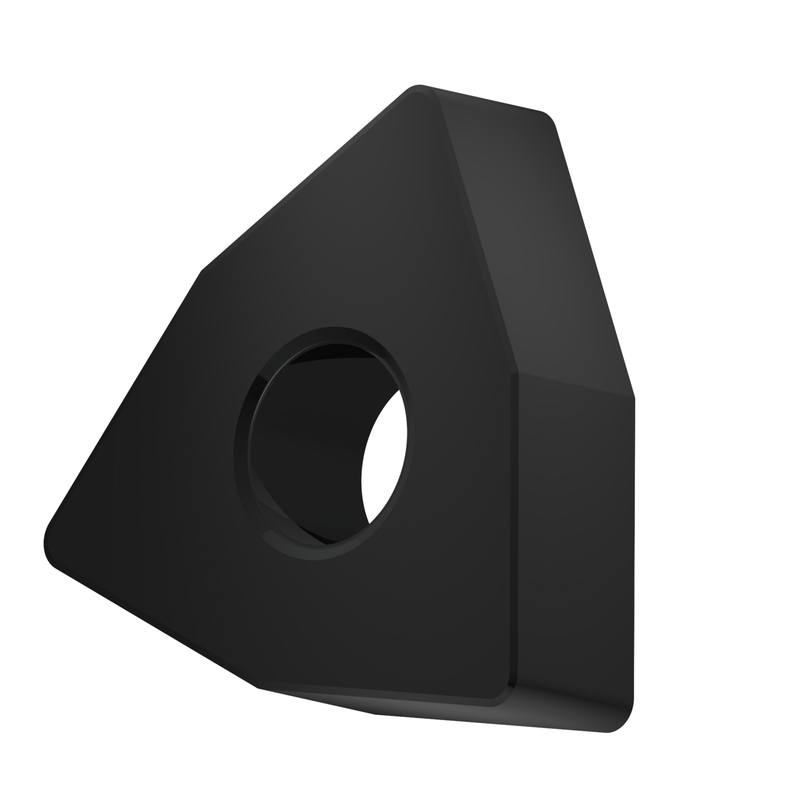

WNMA 432S:T5405
WNMA 432S:T5405
WNMA 432S:T5405
WNMA 432S:T5405

WNMA 432S:T5405

UGC DOR8985008
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.21 CAD - $14.21 CAD
$14.21 CAD
$14.21 CAD - $14.21 CAD
$14.21 CAD

Vendu en lots de : 10

Plaquette négative double face, W - trigon, taille 8 avec rayon de coin 0,8 mm. L'insert plat brise-copeaux .NMA..S est conçu pour l'usinage moyen des fontes. Il présente un angle de coupe neutre et un listel en T négatif et modéré. Il convient également sous certaines conditions aux matériaux durs. Le substrat T5405 en WC-Co, revêtu MT-CVD, convient aux matériaux : K - Fonte (moulages de fer et d'alliages de carbone avec > 2 % de teneur en carbone) et coupe légèrement interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNMA 432S:T5405
GradeT5405
Chipbreaker (CBMD)Sans brise-copeaux
Product Number8985008
Product FamilyAMNW
Insert Geometry
Insert DesignWNMA
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.173"
Depth of Cut Max — mm (APMX)4.4 mm
Tool Information
Tool DesignON
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985008
EAN3603604774154
Material Group Suitability
K — Cast Iron Usage principal
File Type Download
WNMA 432S:T5405 — Line Drawing PDF Download
