WNMG 331-KM:T5405
WNMG 331-KM:T5405
WNMG 331-KM:T5405
WNMG 331-KM:T5405

WNMG 331-KM:T5405

UGC DOR8985018
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.76 CAD - $11.76 CAD
$11.76 CAD
$11.76 CAD - $11.76 CAD
$11.76 CAD

Vendu en lots de : 10

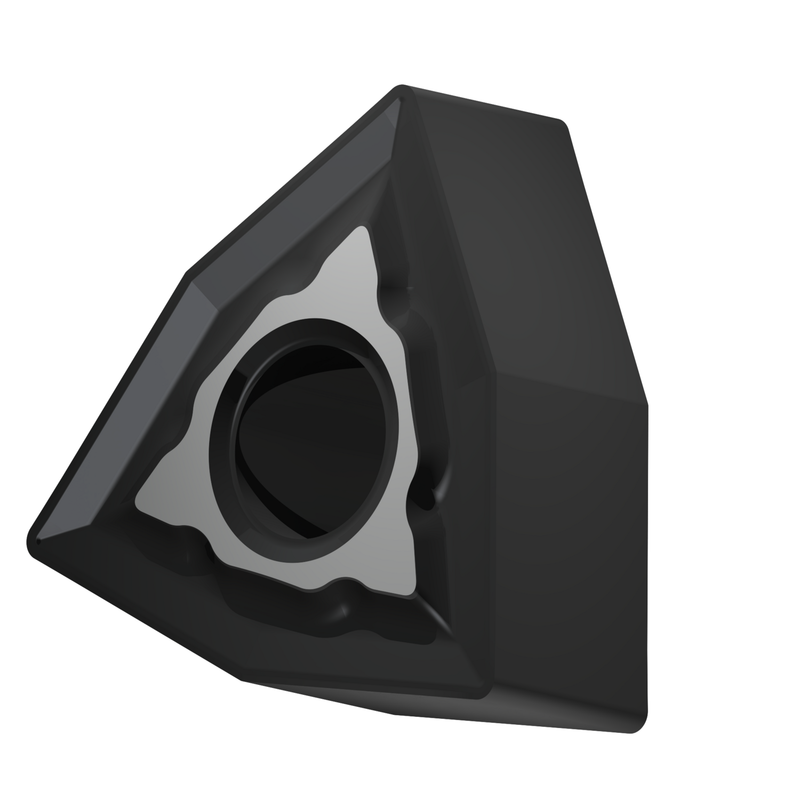

Plaquette négative double face, W - trigon, taille 6 avec un rayon de coin de 0,4 mm. La combinaison du brise-copeaux KM est polyvalente et le premier choix pour l'usinage moyen de la fonte. Elle présente un angle de coupe légèrement positif et un T-land stable et large. Elle convient également, sous certaines conditions, pour les aciers et les matériaux durs. Le substrat T5405 en WC-Co, revêtu de MT-CVD, convient aux matériaux : K - Fonte (moulages d'alliages de fer et de carbone avec > 2 % de teneur en carbone) et coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNMG 331-KM:T5405
GradeT5405
Chipbreaker (CBMD)KM
Product Number8985018
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Tool DesignWN
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985018
EAN3603604774253
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
WNMG 331-KM:T5405 — Line Drawing PDF Download
