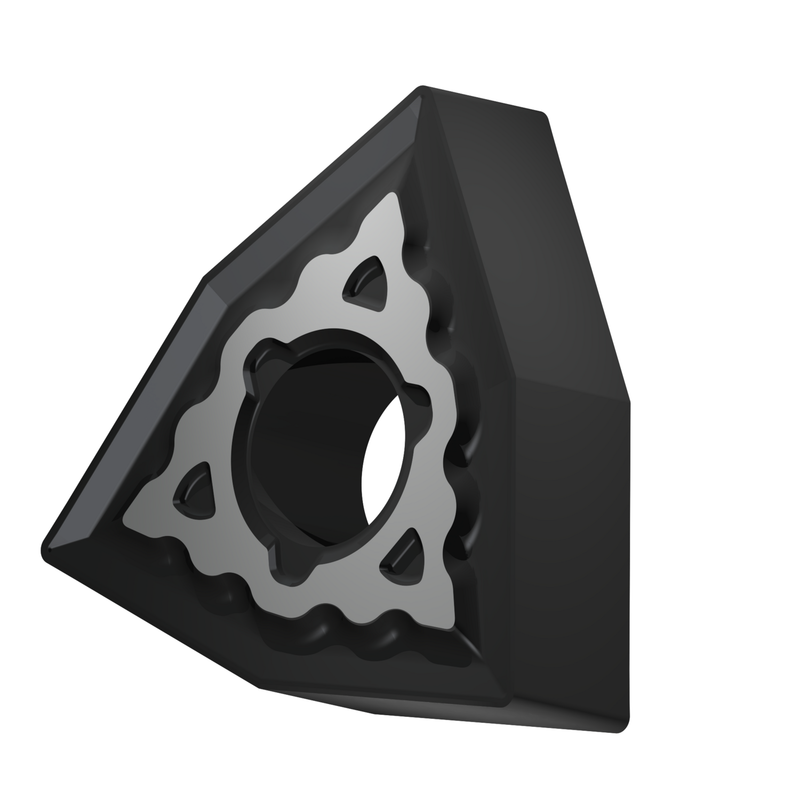

WNMG 431-KM:T5405
WNMG 431-KM:T5405
WNMG 431-KM:T5405
WNMG 431-KM:T5405

WNMG 431-KM:T5405

UGC DOR8985019
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.21 CAD - $14.21 CAD
$14.21 CAD
$14.21 CAD - $14.21 CAD
$14.21 CAD

Vendu en lots de : 10

Plaquette négative double face, W - trigon, taille 8 avec un rayon de coin de 0,4 mm. La combinaison du brise-copeaux KM est polyvalente et constitue le premier choix pour l'usinage moyen des fontes. Elle présente un angle de coupe légèrement positif et une large dépouille stable. Elle convient également sous certaines conditions pour les aciers et les matériaux durs. Le substrat T5405 en WC-Co, revêtu MT-CVD, convient aux matériaux : K - Fonte (moulages de fer et d'alliages de carbone avec > 2 % de teneur en carbone) et coupe continue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNMG 431-KM:T5405
GradeT5405
Chipbreaker (CBMD)KM
Product Number8985019
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Tool DesignWN
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985019
EAN3603604774260
Material Group Suitability
P — Steel and Cast Steel Usage possible
K — Cast Iron Usage principal
File Type Download
WNMG 431-KM:T5405 — Line Drawing PDF Download
