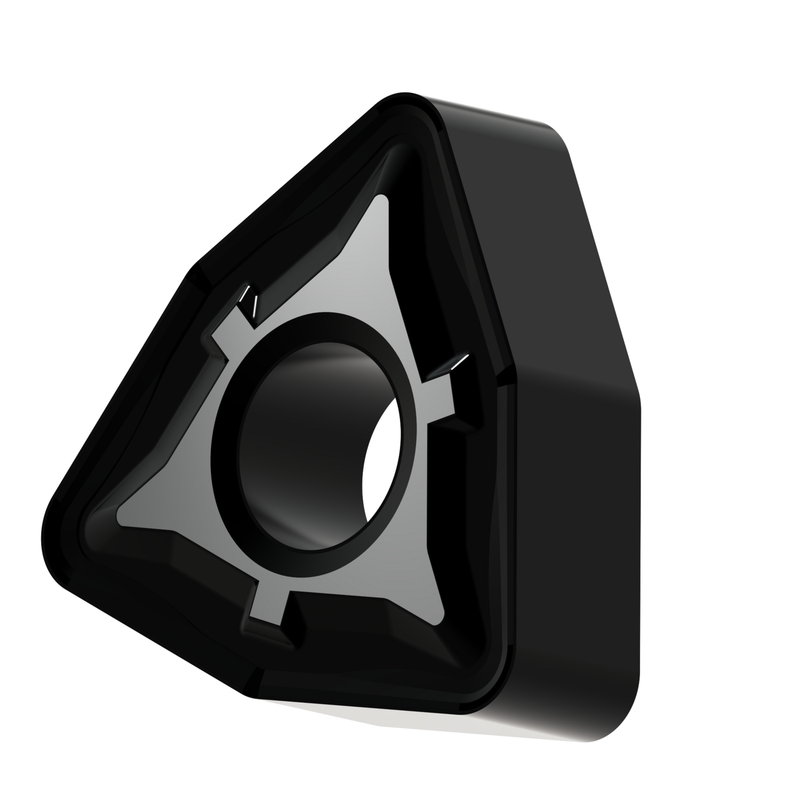

WNMG 432-R:T5405
WNMG 432-R:T5405
WNMG 432-R:T5405
WNMG 432-R:T5405

WNMG 432-R:T5405

UGC DOR8985011
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.21 CAD - $14.21 CAD
$14.21 CAD
$14.21 CAD - $14.21 CAD
$14.21 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, W - trigone, taille 8 avec rayon de pointe de 0,8 mm. Combinaison de brise-copeaux R, robuste et conçue pour l'ébauche des aciers et des fontes. Elle présente un angle de coupe légèrement positif et un listel large double T négatif/stable. Elle est également conditionnellement adaptée aux matériaux durs. Et le substrat T5405 en WC-Co, revêtu MT-CVD, convient aux matériaux : K - Fonte (moulages d'alliages de fer et de carbone avec > 2 % de carbone) et coupe légèrement interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNMG 432-R:T5405
GradeT5405
Chipbreaker (CBMD)R
Product Number8985011
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.22"
Depth of Cut Max — mm (APMX)5.6 mm
Tool Information
Tool DesignWN
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985011
EAN3603604774185
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
