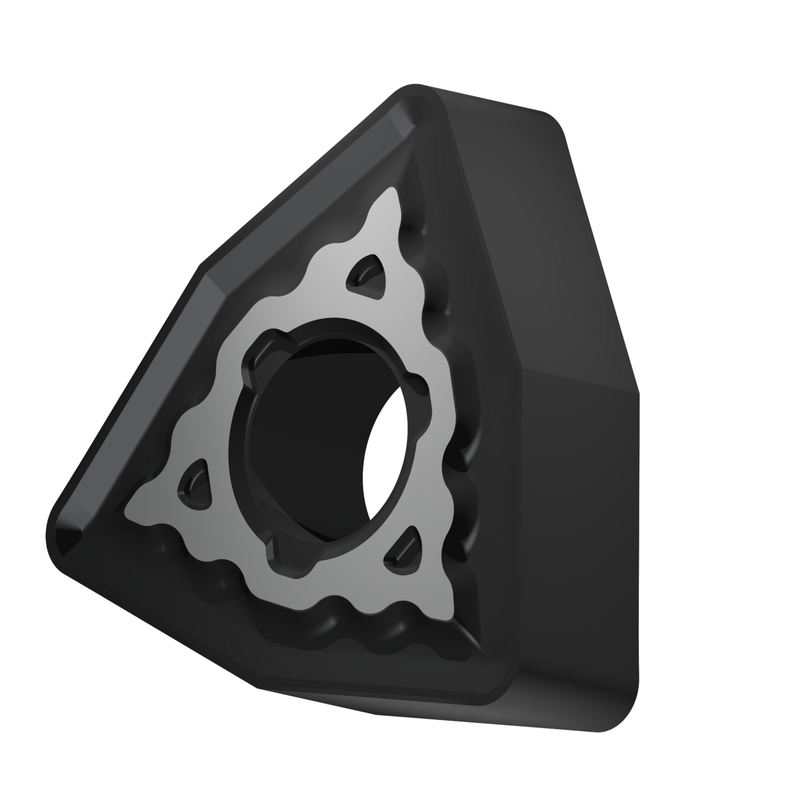

WNMG 433-KM:T5405
WNMG 433-KM:T5405
WNMG 433-KM:T5405
WNMG 433-KM:T5405

WNMG 433-KM:T5405

UGC DOR8985015
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.21 CAD - $14.21 CAD
$14.21 CAD
$14.21 CAD - $14.21 CAD
$14.21 CAD

Vendu en lots de : 10

Plaquette négative double face, W - trigon, taille 8 avec rayon de pointe de 1,2 mm. La combinaison du brise-copeaux KM est polyvalente et constitue le premier choix pour l'usinage moyen des fontes. Elle présente un angle de coupe légèrement positif et un listel stable et large. Elle convient également sous certaines conditions aux aciers et aux matériaux durs. Le substrat T5405 est en WC-Co, revêtu MT-CVD. Il convient aux matériaux : K - Fonte (moulages de fer et d'alliages de carbone avec > 2 % de teneur en carbone) et coupes légèrement interrompues.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNMG 433-KM:T5405
GradeT5405
Chipbreaker (CBMD)KM
Product Number8985015
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigon
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Tool DesignWN
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985015
EAN3603604774222
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
WNMG 433-KM:T5405 — Line Drawing PDF Download
