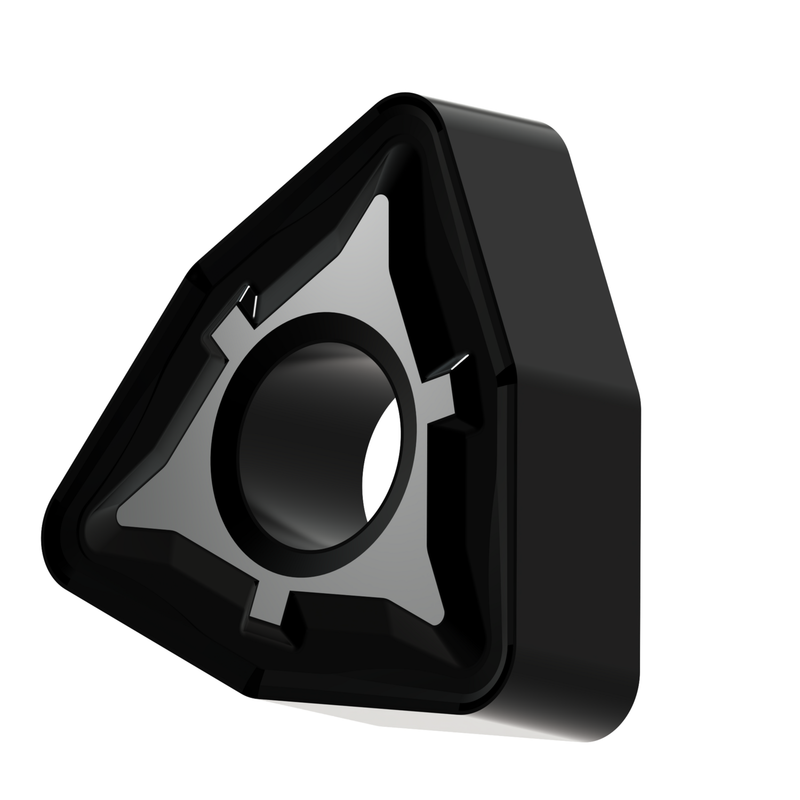

WNMG 433-R:T5405
WNMG 433-R:T5405
WNMG 433-R:T5405
WNMG 433-R:T5405

WNMG 433-R:T5405

UGC DOR8985014
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.21 CAD - $14.21 CAD
$14.21 CAD
$14.21 CAD - $14.21 CAD
$14.21 CAD

Vendu en lots de : 10

Plaquette négative double face, W - trigon, taille 8 avec rayon de bec de 1,2 mm. La combinaison du brise-copeaux R est robuste et conçue pour l'ébauche des aciers et des fontes. Elle présente un angle de coupe légèrement positif et un listel large double T, négatif/stable. Elle est également conditionnellement adaptée aux matériaux durs. Substrat T5405 à base de WC-Co, revêtu MT-CVD. Convient aux matériaux : K - Fonte (moulages de fer et d'alliages de carbone avec > 2 % de teneur en carbone) et coupe légèrement interrompue.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNMG 433-R:T5405
GradeT5405
Chipbreaker (CBMD)R
Product Number8985014
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.22"
Depth of Cut Max — mm (APMX)5.6 mm
Tool Information
Tool DesignWN
SubstrateSubstrat à base de WC-Co
Reference Numbers
EDP Number8985014
EAN3603604774215
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
WNMG 433-R:T5405 — Line Drawing PDF Download
