DCLNR 2525 M 09
SKU DOR6757920
Primary Use:
Possible Use:

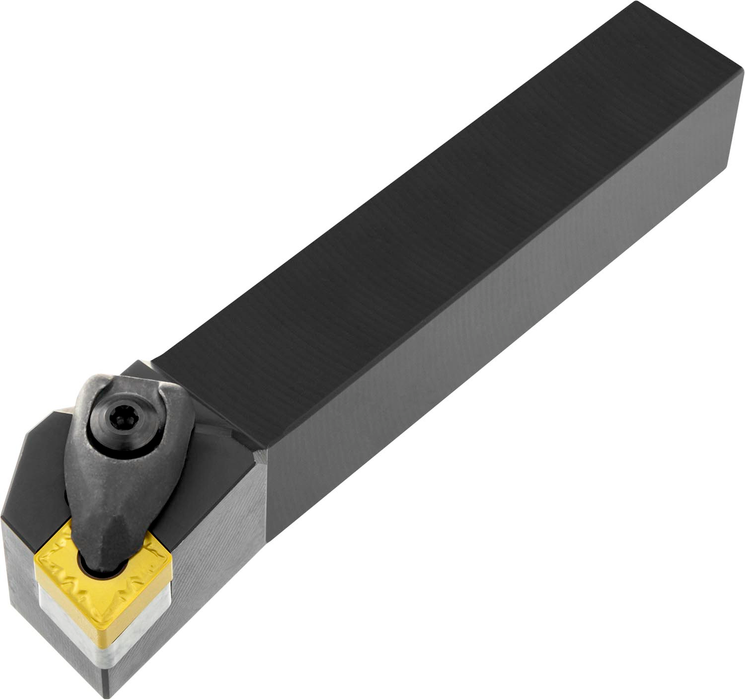

Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 9.525mm, 3.18mm thick (ISO designation CN.. 0903.. ), right hand 95° side and end cutting with off-set shank, 25mm tool height x 25mm width x 150mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$153.00
-
Original price
$153.00
Original price
$153.00
$153.00
-
$153.00
Current price
$153.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

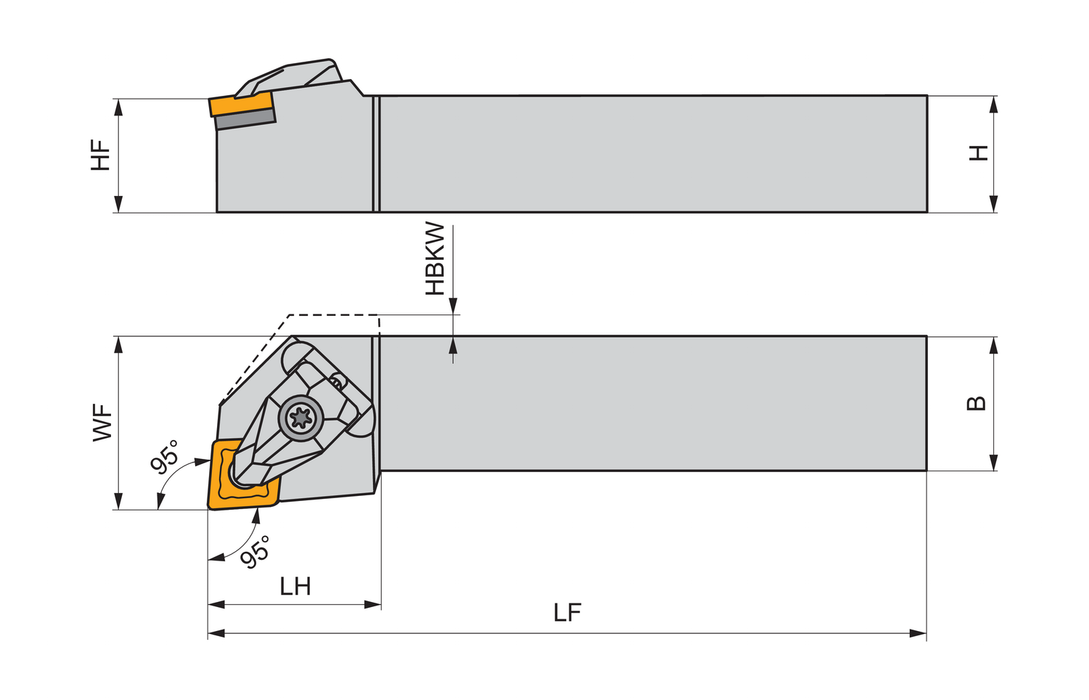

Height: 0.984
Tool Direction: Left
Insert Designation: ["CN.. 0903.."]
Functional Length: 5.906
EDP: 6757920
EAN: 3603602932761
MFG Part Number: 6757920
