A40T-PSKNR 15
SKU DOR6757309
Primary Use:
Possible Use:

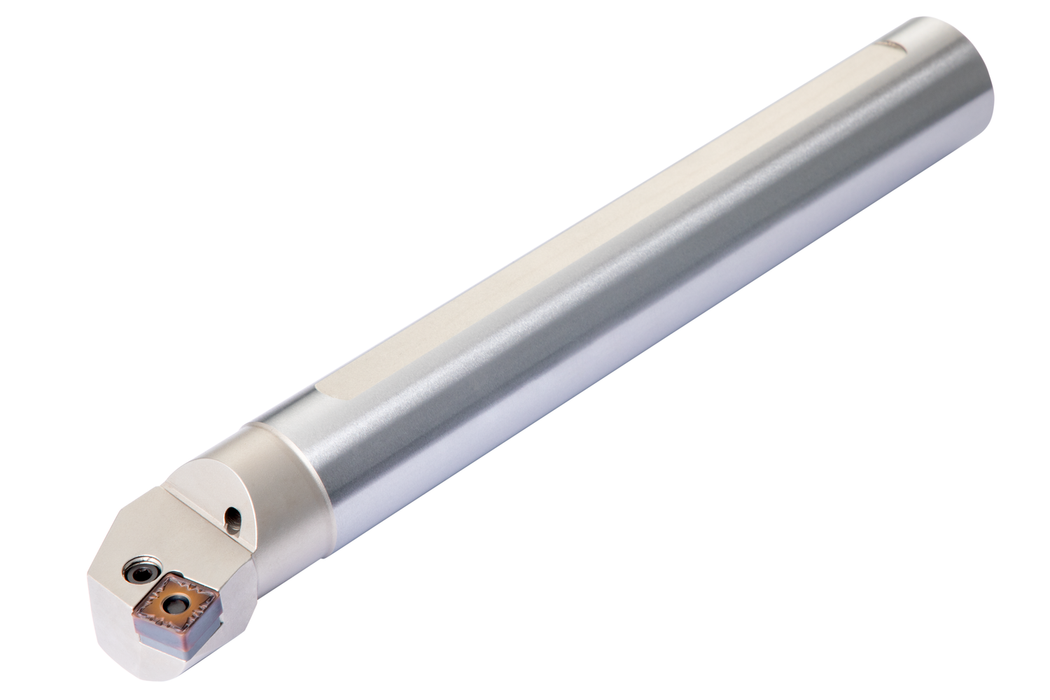

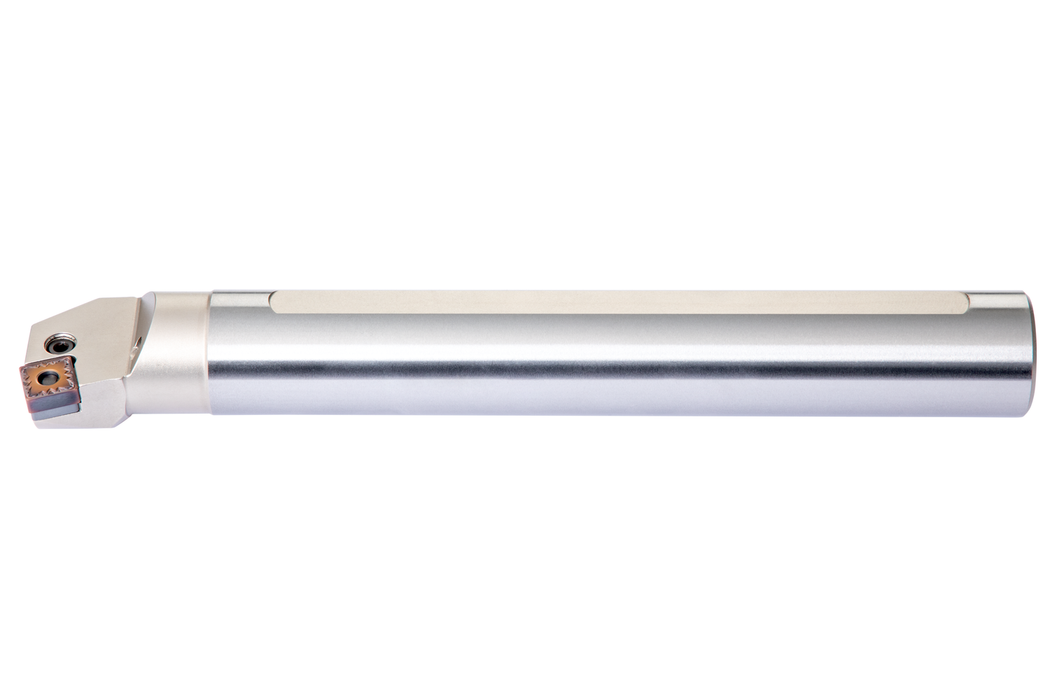

Lever lock boring bar for holding a square negative insert with an inscribed circle diameter of 15.875mm, 6.35mm thick (ISO designation SN.. 1506.. ), right hand 75° end cutting with off-set shank, steel with coolant hole, 40mm diameter x 300mm long for taper boring and longitudinal boring without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$500.00
-
Original price
$500.00
Original price
$500.00
$500.00
-
$500.00
Current price
$500.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

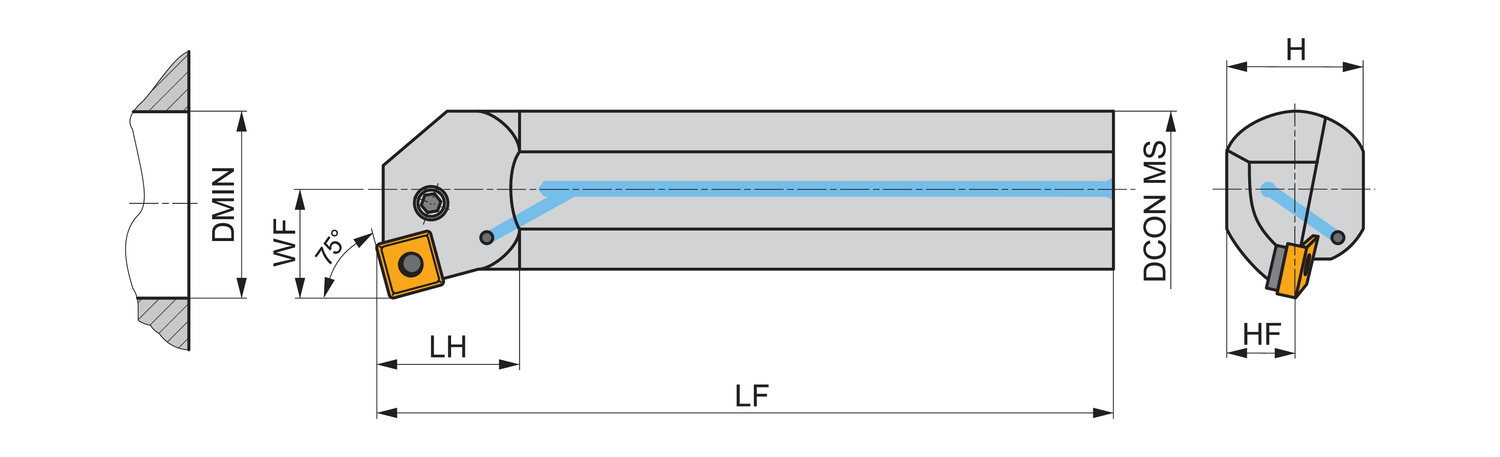

Through Coolant: 1
Connetion Diameter: 1.575
Height: 1.457
Minimum Bore: 1.89
Tool Direction: Left
Insert Designation: ["SN.. 1506.."]
Functional Length: 11.811
EDP: 6757309
EAN: 3603602926654
MFG Part Number: 6757309
