A32S-PSKNR 12
SKU DOR6757329
Primary Use:
Possible Use:

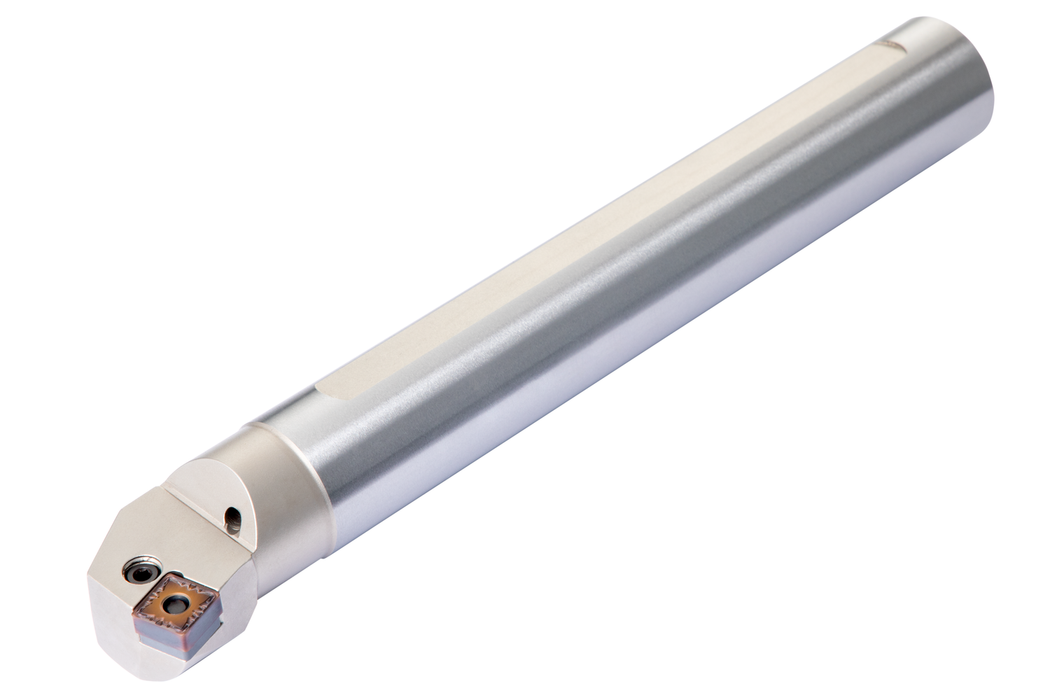

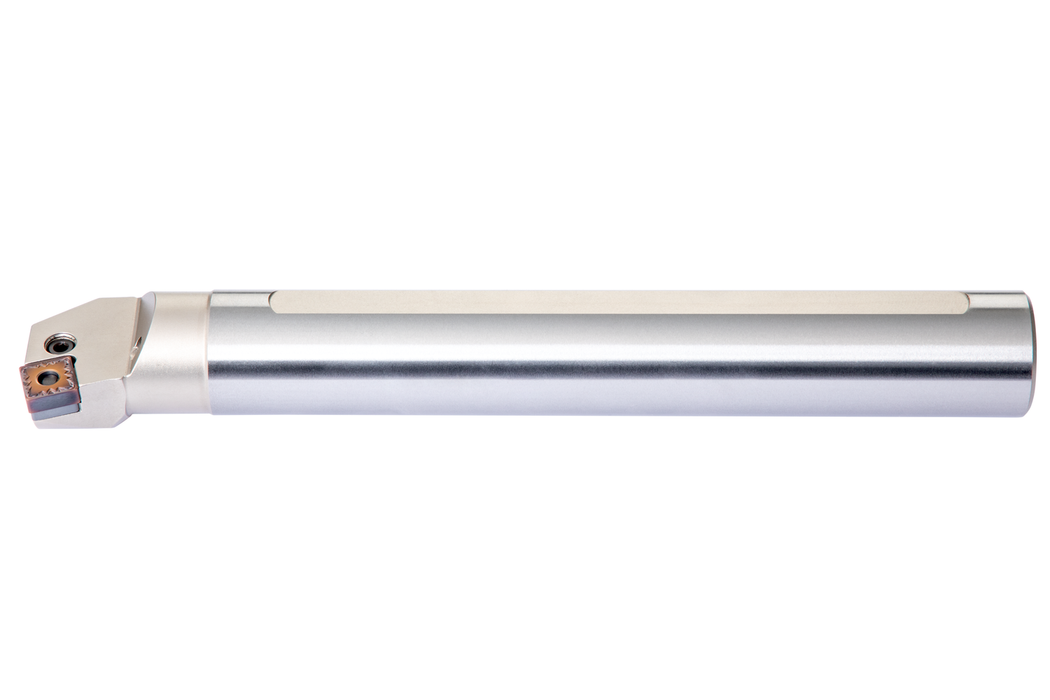

Lever lock boring bar for holding a square negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation SN.. 1204.. ), right hand 75° end cutting with off-set shank, steel with coolant hole, 32mm diameter x 250mm long for taper boring and longitudinal boring without shoulder
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$415.00
-
Original price
$415.00
Original price
$415.00
$415.00
-
$415.00
Current price
$415.00
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

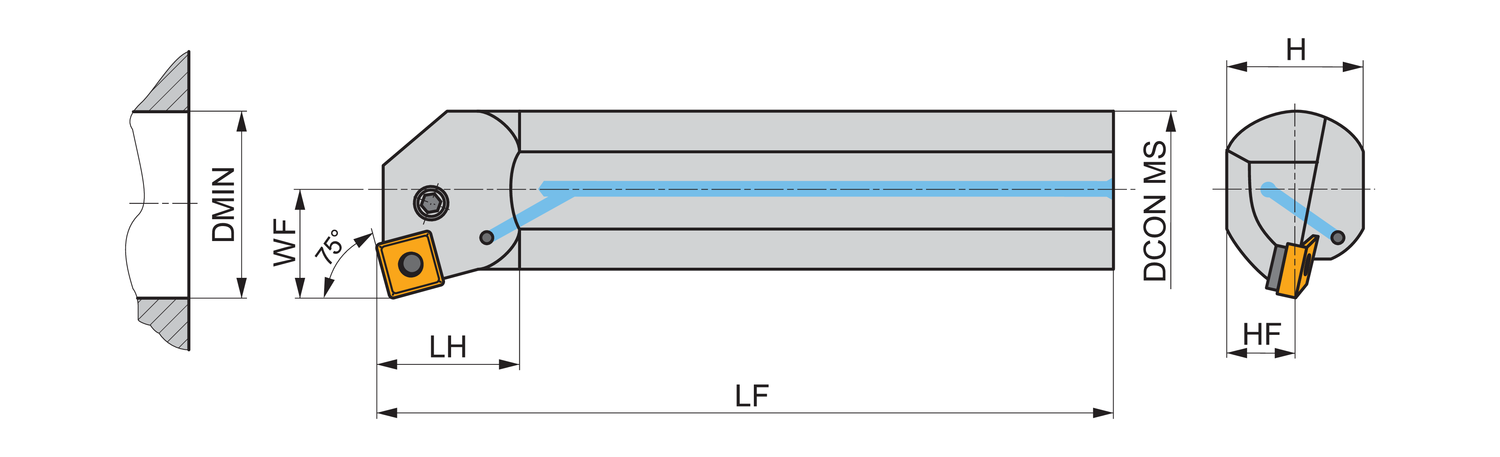

Through Coolant: 1
Connetion Diameter: 1.26
Height: 1.181
Minimum Bore: 1.535
Tool Direction: Left
Insert Designation: ["SN.. 1204.."]
Functional Length: 9.843
EDP: 6757329
EAN: 3603602926852
MFG Part Number: 6757329
