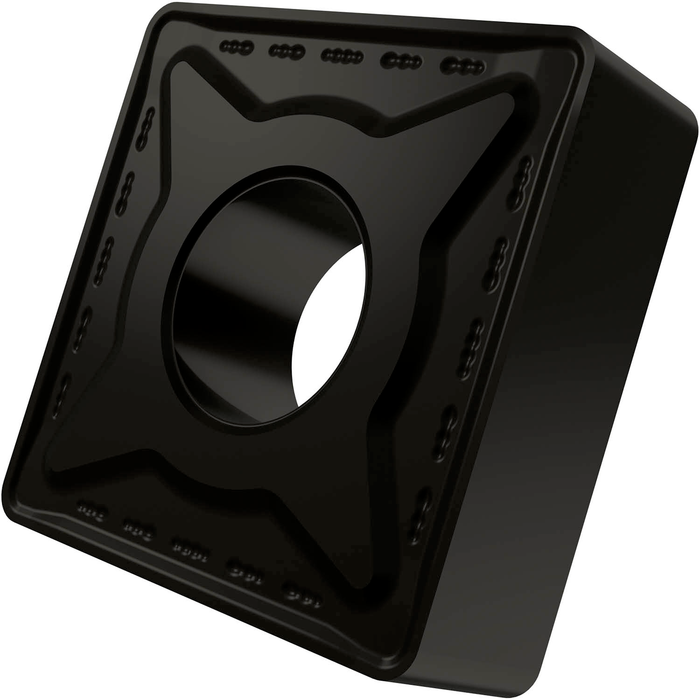

SNMG 643-RM:T7335
Double-sided negative turning insert, square with inscribed circle diameter of 3/4", 1/4" thick, 3/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker RM, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide within ISO range M20-M40, for medium to heavy machining of stainless-steels
Sold in packs of: 10

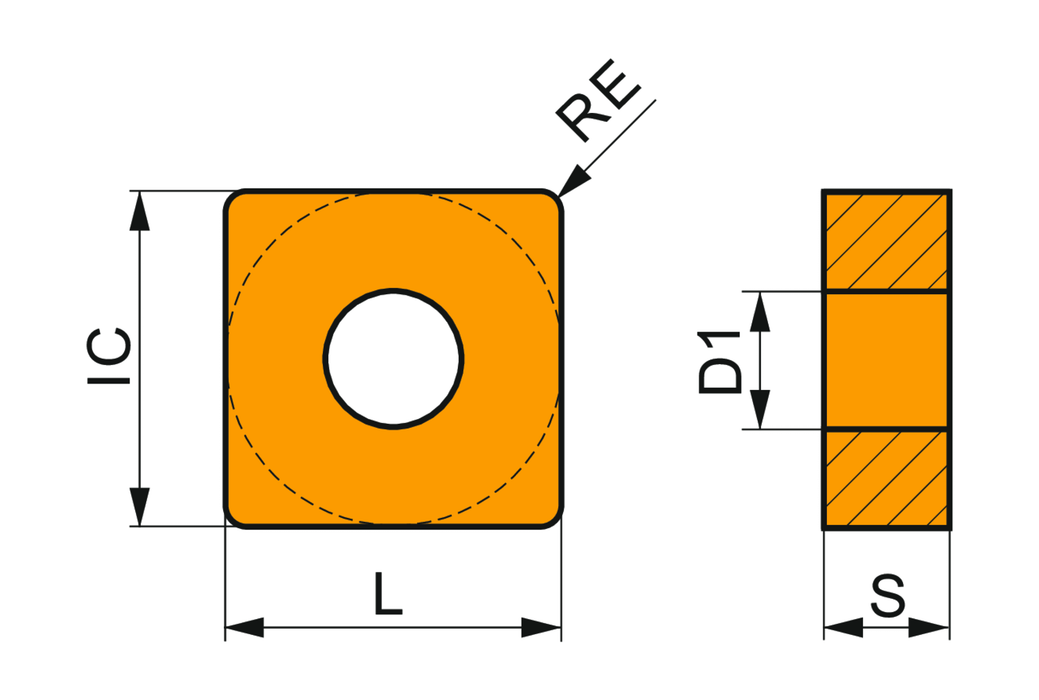

Inscribed circle diameter - inch (IC): 0.75
Coating: T7335
Chip Breaker: RM
Insert Design: SNMG
Corner Radius (IN): 0.047
