CNMG 543-SM:T7325
SKU DOR7156220
by Pramet

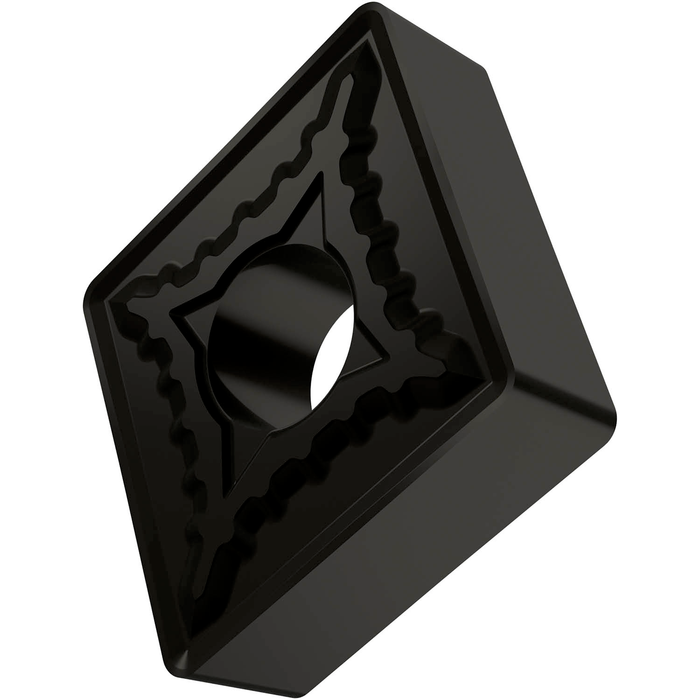

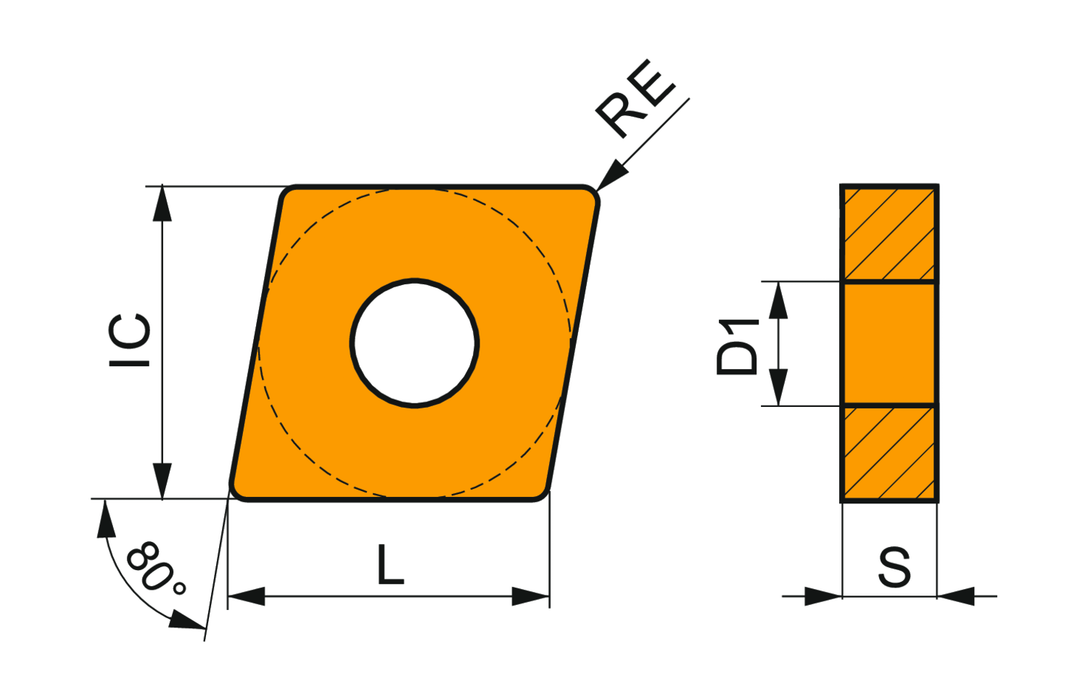

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 5/8", 1/4" thick, 3/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker SM, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges M10-M25 and S10-S25, for fine to heavy machining of stainless-steels and super-alloys
Sold in packs of: 10
For more information about this product,
click here
Original price
$19.60
-
Original price
$19.60
Original price
$19.60
$19.60
-
$19.60
Current price
$19.60
Same day shipping if ordered before 2:30pm MST. You will typically see the product within 1-3 business days after ordering.
If we are expecting a delay, customer service will reach out with updated details give you the option to cancel the order if the product wont make it within this time frame.
Inscribed Circle Diameter - IN: 0.625
Corner Radius - Inch: 0.047
Corner Radius - MM: 1.2
Grade: T7325
Chip Breaker: SM
Insert Design: CNMG
P - Steel and cast steel: Possible use
M - Stainless steel: Primary use
S - High-temperature alloys: Primary use
EAN: 3603603163416
MFG Part Number: 7156220
