RCMT 10T3MOSN-F:M6330
RCMT 10T3MOSN-F:M6330

RCMT 10T3MOSN-F:M6330

SKU DOR7445881
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.96 CAD - $17.96 CAD
$17.96 CAD
$17.96 CAD - $17.96 CAD
$17.96 CAD

Sold in packs of: 10

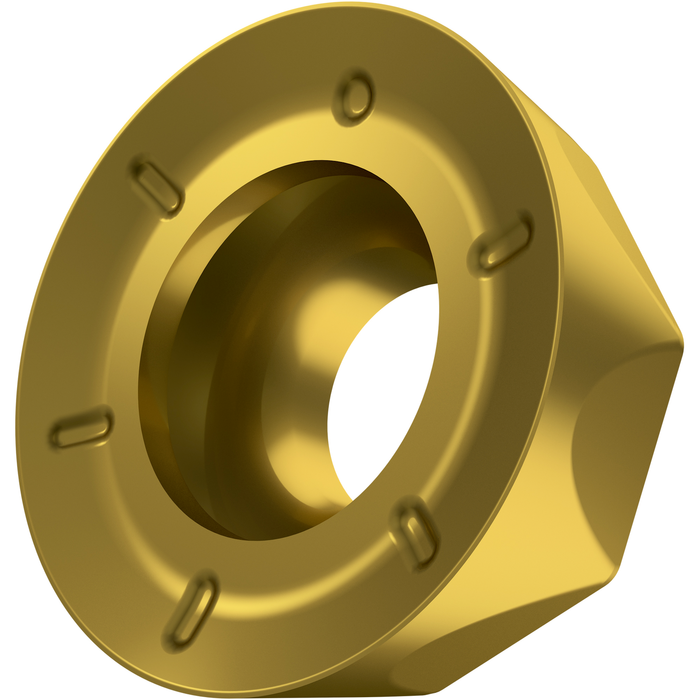

Single-sided milling insert RCMT 10T3 with chip-breakers, round for a maximum depth of cut of .1969", with " corner radius, an indexing accuracy according to ISO-tolerance class-M and F geometry with rounded cutting edges and facet, M6330 PVD coated WC-Co carbide within ISO-grade ranges M20-M35 and S10-S30 for machining of stainless-steel and superalloy with copy face mills SRC10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 10T3MOSN-F:M6330
GradeM6330
Chipbreaker (CBMD)F
Product Number7445881
Product FamilyRCMT 10
Insert Geometry
Insert DesignRCMT
Insert Shape Code (SC)R - round
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number7445881
EAN3603603380059
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
S — High Temperature Alloys Primary use
File Type Download

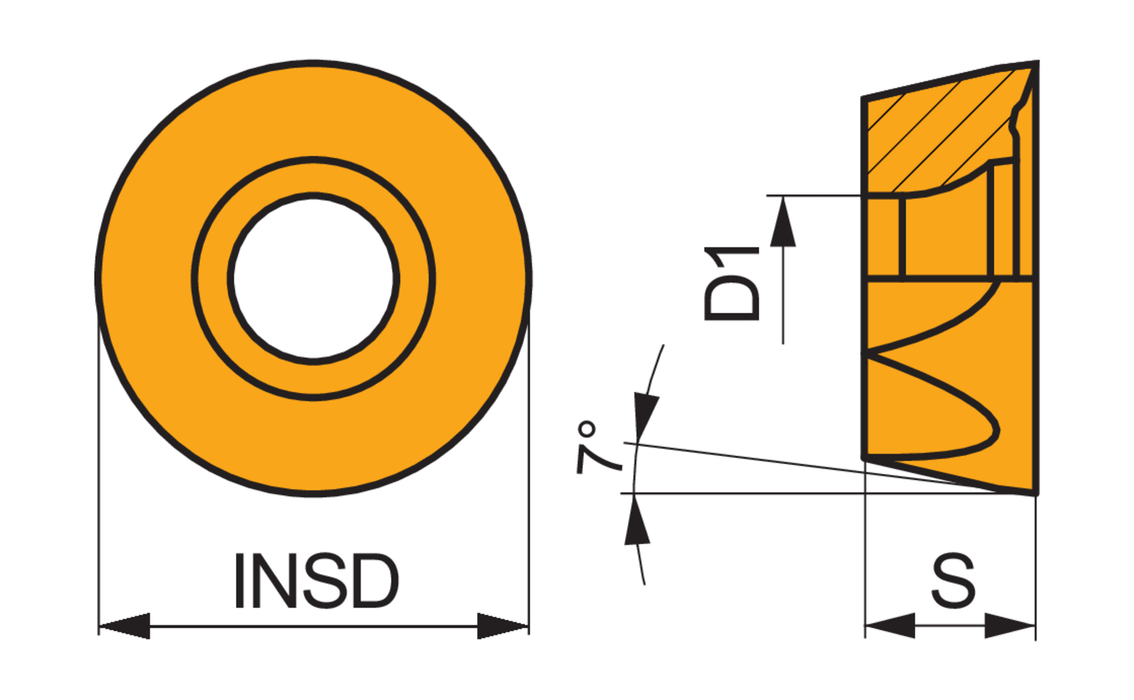

RCMT 10T3MOSN-F:M6330 — Line Drawing PDF Download
