TNMG 333-SF:T6310

TNMG 333-SF:T6310

SKU DOR7763104
by Pramet

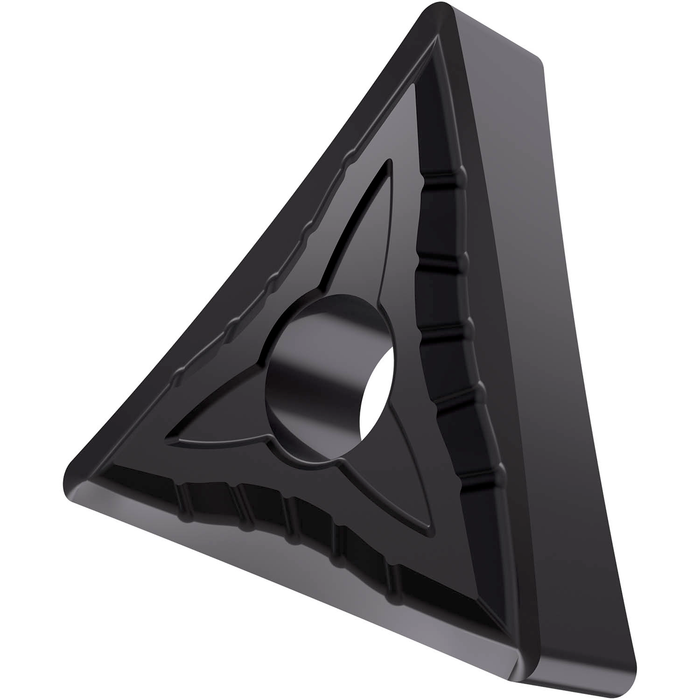

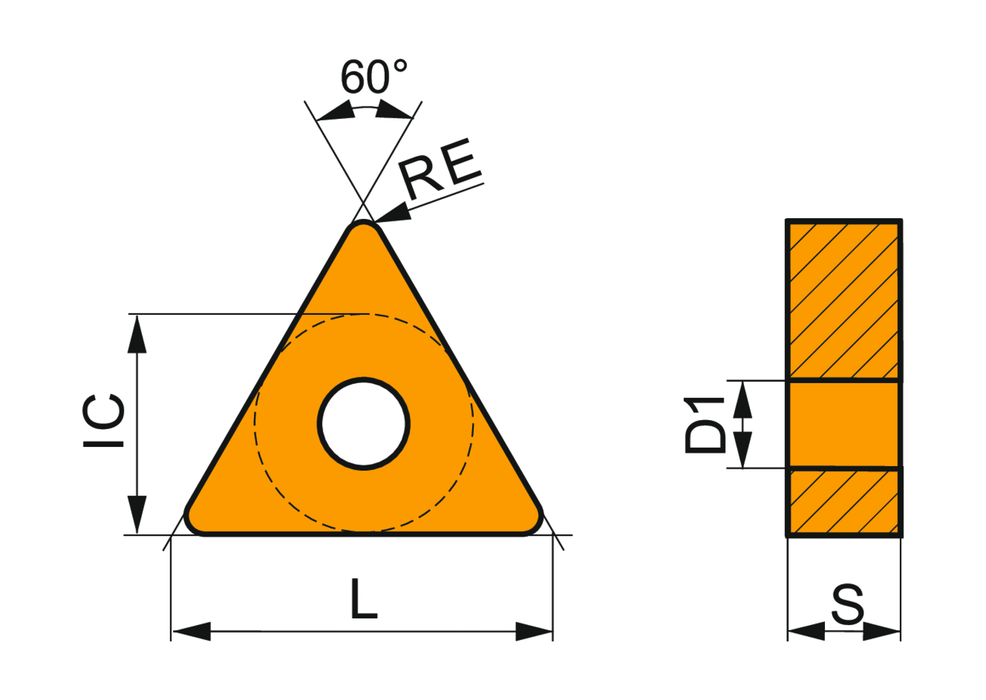

Double-sided negative turning insert, triangular with inscribed circle diameter of 9.525mm, 4.76mm thick, 1.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker SF with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges M01-M15 and S01-S15, for fine to medium machining of stainless-steels and super-alloys

Sold in packs of: 10

For more information about this product, click here
$10.23 - $10.23
$10.23
$10.23 - $10.23
$10.23
Same day shipping if ordered before 2:30pm MST. You will typically see the product within 1-3 business days after ordering. If we are expecting a delay, customer service will reach out with updated details give you the option to cancel the order if the product wont make it within this time frame.

Inscribed Circle Diameter - IN: 0.375

Corner Radius - Inch: 0.047

Corner Radius - MM: 1.2

Grade: T6310

Chip Breaker: SF

Insert Design: TNMG

P - Steel and cast steel: Primary use

M - Stainless steel: Primary use

K - Cast Iron: Primary use

N - Non-ferrous metals: Possible use

H - Hardened materials: Primary use

S - High-temperature alloys: Primary use

EAN: 3603603627116

MFG Part Number: 7763104
