TNMG 433-SM:T6310

TNMG 433-SM:T6310

SKU DOR7763113
by Dormer Pramet
Primary Use: Possible Use:

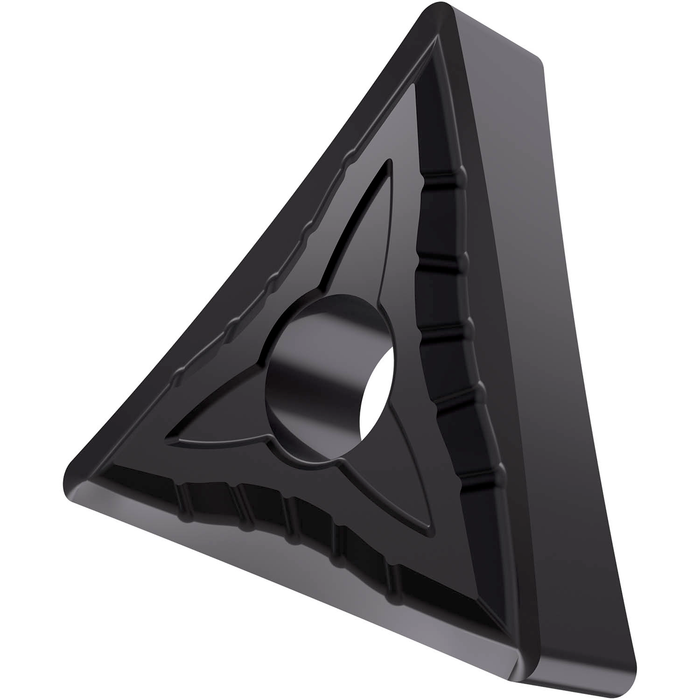

Double-sided negative turning insert, triangular with inscribed circle diameter of 12.7mm, 4.76mm thick, 1.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker SM with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges P01 -P15/M01 -M15/K05 -K20 and S01 -S15, for fine to heavy machining of steels, stainless-steels, cast-irons and super-alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$13.75 - $13.75
$13.75
$13.75 - $13.75
$13.75
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.197

Tool Direction: Left

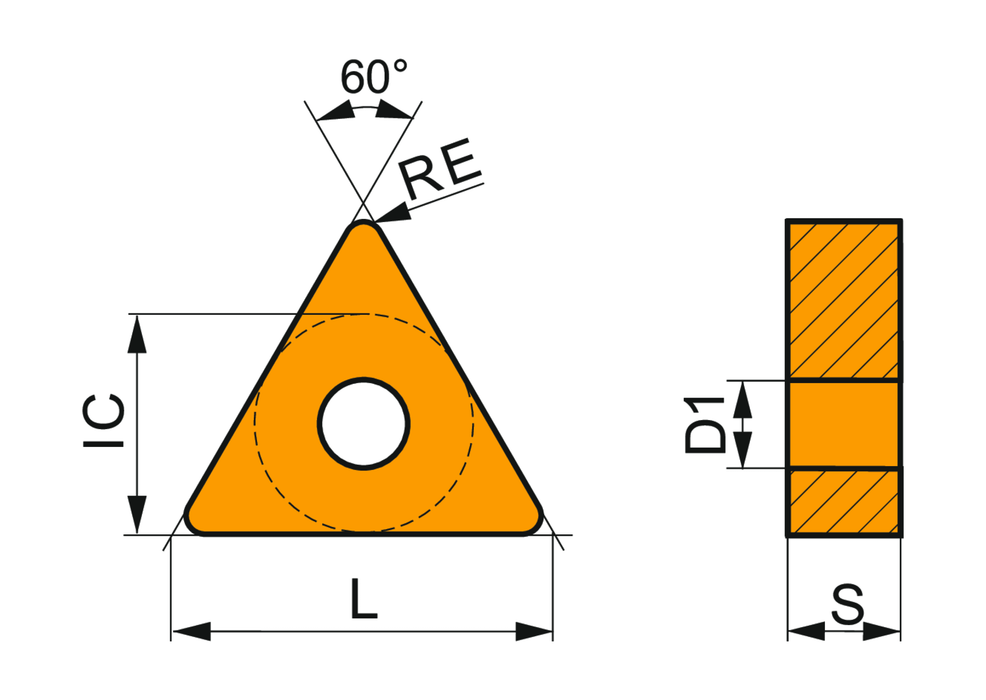

Insert Design: TNMG

Insert Shape Code: T - triangular 60° included angle

Insert Shape Code: gid://shopify/Metaobject/145756717118

Insert Thickness: 0.187

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

Cast Iron: Primary use

Non Ferrous: Possible use

High Temp Alloys: Primary use

Hardened Material: Possible use

Inscribed Circle Diameter: 0.5

Chip Breaker: SM

Grade: T6310

Corner Radius - in: 0.047

Corner Radius - mm: 1.2

EDP: 7763113

EAN: 3603603627208

MFG Part Number: 7763113
