VNMG 332-NM:T8430
SKU DOR7977416
by Pramet

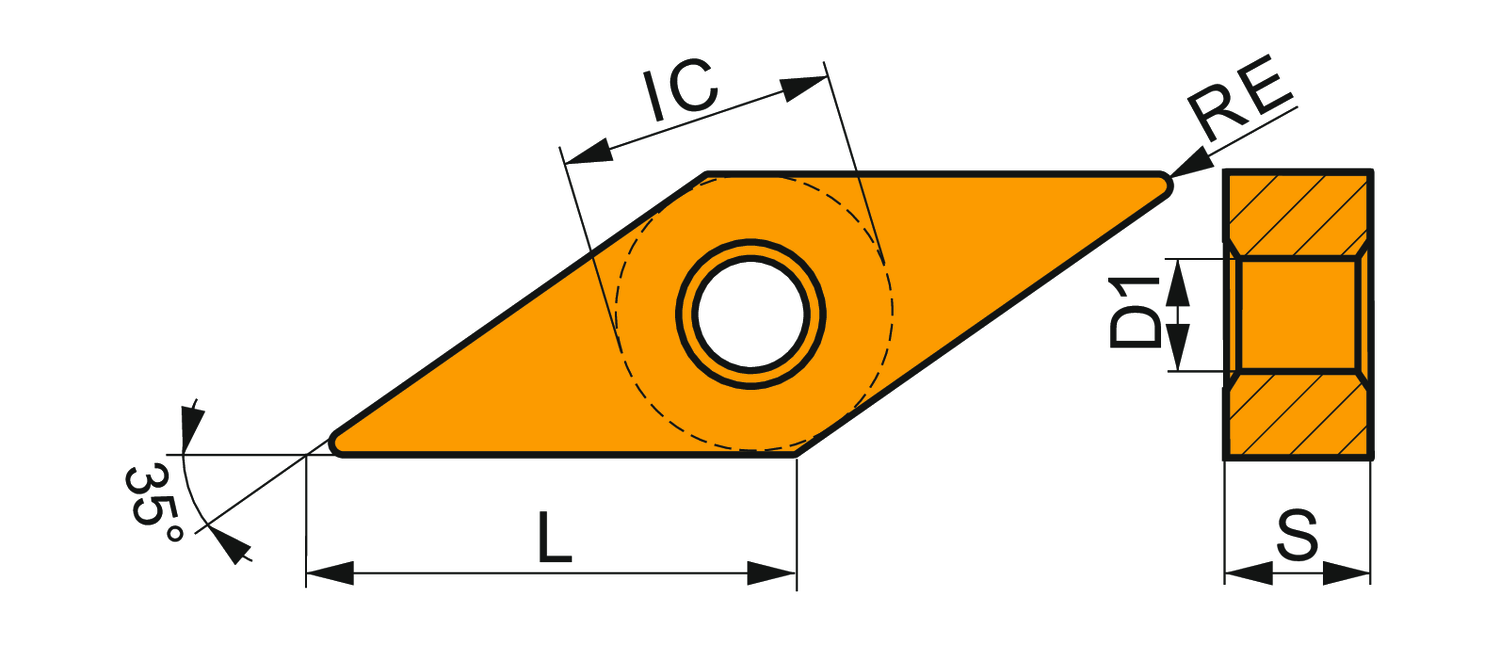

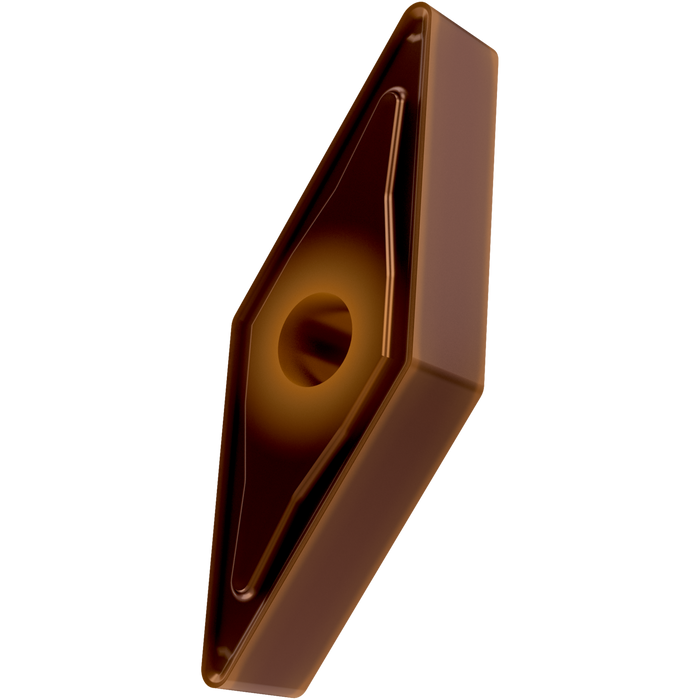

Double-sided negative turning insert, 35° rhomboid with inscribed circle diameter of 9.525mm, 4.76mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NM with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P25-P40 and M20-M35, for fine to heavy machining of steels and stainless-steels
Sold in packs of: 10
For more information about this product,
click here
Original price
$18.26
-
Original price
$18.26
Original price
$18.26
$18.26
-
$18.26
Current price
$18.26
Same day shipping if ordered before 2:30pm MST. You will typically see the product within 1-3 business days after ordering.
If we are expecting a delay, customer service will reach out with updated details give you the option to cancel the order if the product wont make it within this time frame.
Inscribed Circle Diameter - IN: 0.375
Corner Radius - Inch: 0.031
Corner Radius - MM: 0.8
Grade: T8430
Chip Breaker: NM
Insert Design: VNMG
P - Steel and cast steel: Primary use
M - Stainless steel: Primary use
N - Non-ferrous metals: Possible use
S - High-temperature alloys: Possible use
EAN: 3603603820029
MFG Part Number: 7977416
