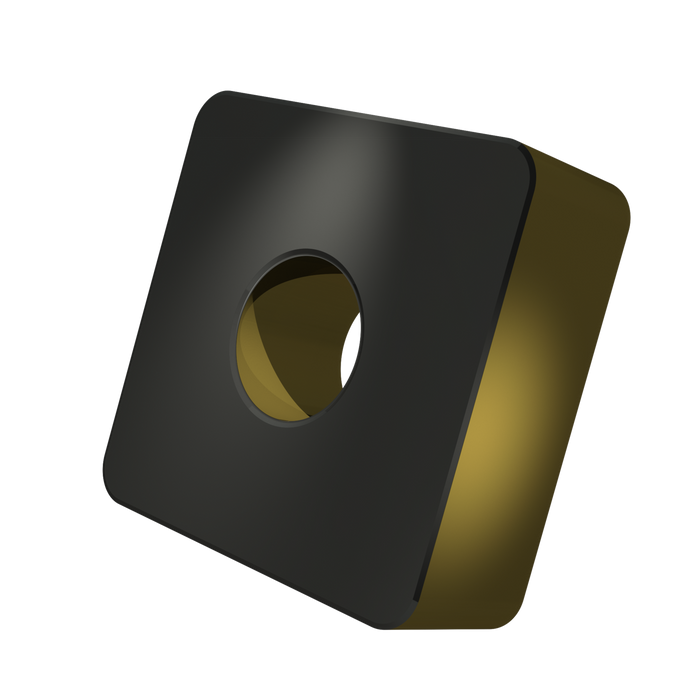

SNMA 250924:T5415

SNMA 250924:T5415

SKU DOR8716806
by Dormer Pramet
Primary Use: Possible Use:

Double-sided negative turning insert, square with inscribed circle diameter of 1", 3/8" thick, 3/32" nose radius and indexing accuracy according to ISO-tolerance class- M, in grade T5415, a MT-CVD coated WC-Co carbide within ISO range K10-K25, for medium to heavy machining of cast-irons

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$61.86 - $61.86
$61.86
$61.86 - $61.86
$61.86
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Connetion Diameter: 0.492

Insert Design: SNMA

Insert Shape Code: S - square

Insert Thickness: 0.375

Cast Iron: Primary use

Hardened Material: Possible use

Inscribed Circle Diameter: 1.0

Chip Breaker: No chipbreaker

Grade: T5415

Corner Radius - in: 0.094

Corner Radius - mm: 2.4

EDP: 8716806

EAN: 3603604495349

MFG Part Number: 8716806
