C12610.5

C12610.5

SKU DOR5983817
by Dormer Pramet
Primary Use: P - Steel and Cast Steel K - Cast Iron N - Non-Ferrous Metals S - High Temperature Alloys Possible Use: M - Stainless Steel

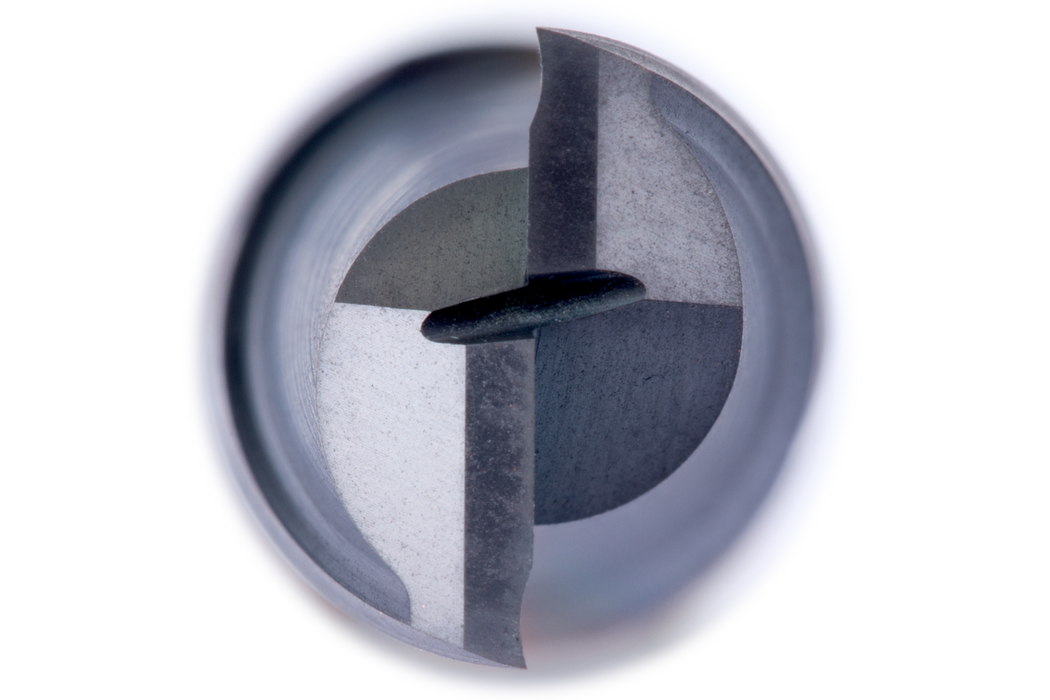

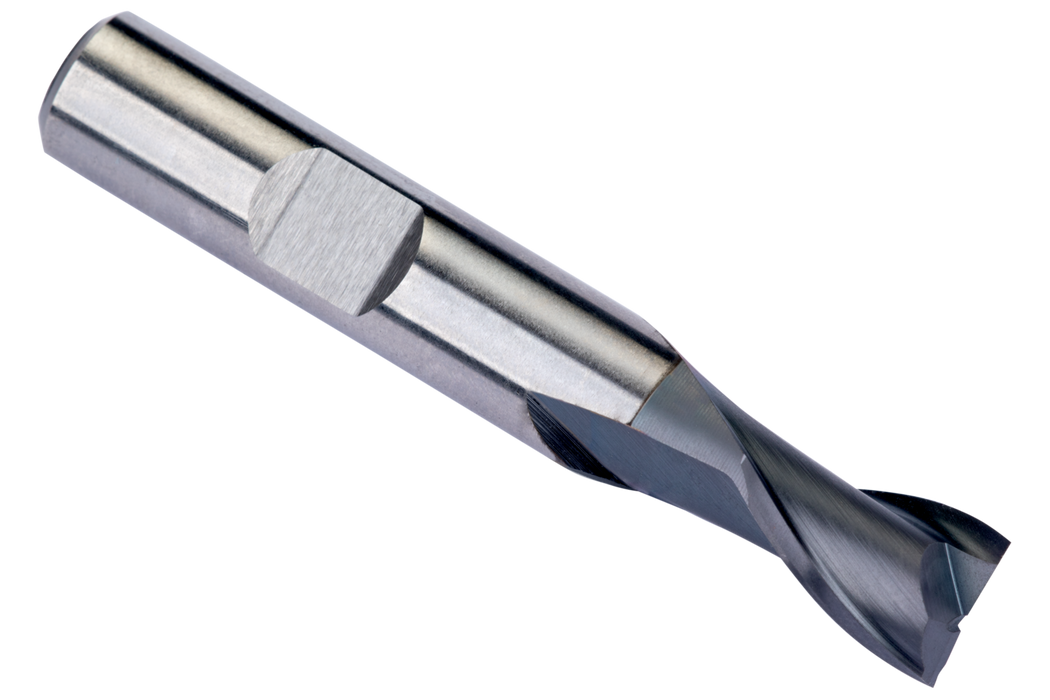

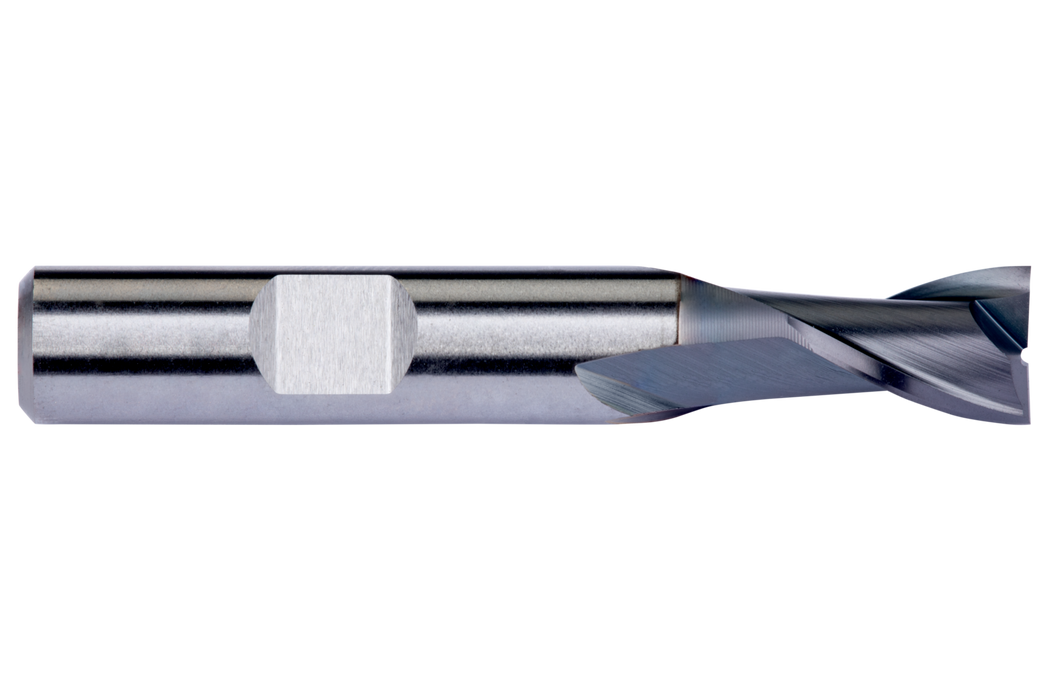

Extra short series slot drill with 2 flutes, diameter 10.5mm with 13mm length of cut and 70mm overall length, according to DIN 327 D standard with a 12mm Weldon shank, powder metallurgical HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron, copper or copper alloys and titanium or titanium alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$66.60 - $66.60
$66.60
$66.60 - $66.60
$66.60
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

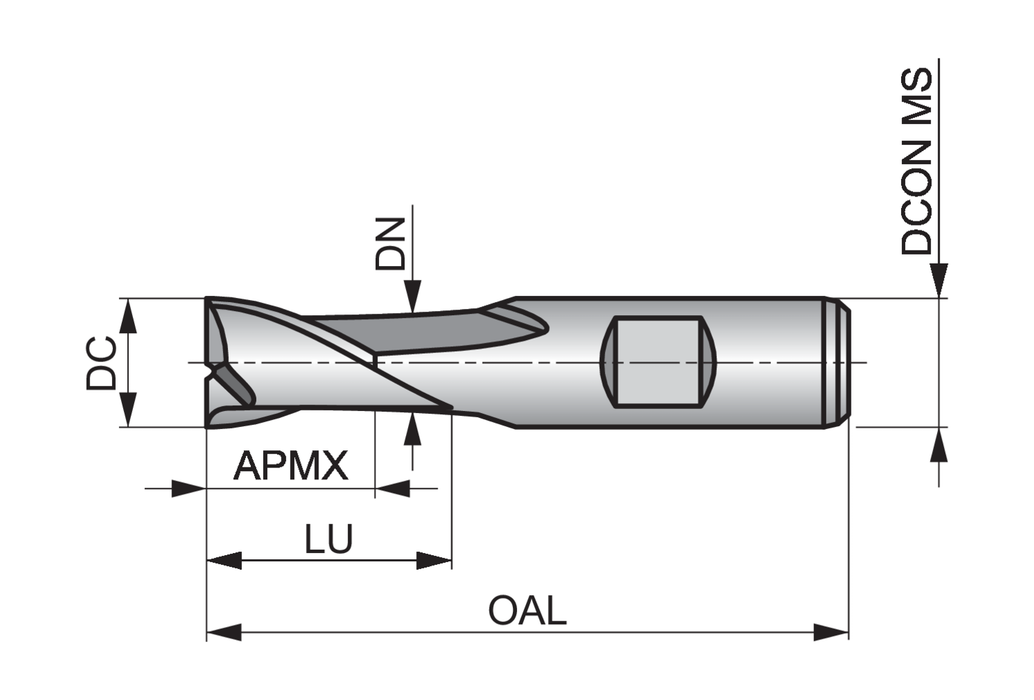

Material: HSS-E-PM

Cutting Diameter - in (DC): 0.4134

Cutting Diameter - mm (DC): 10.5

Overall Length (OAL): 2.7559

Connetion Diameter: 0.4724

Max. Depth of Cut: 0.5118

Shank: Weldon shank DIN 1835B

Grade: TiCN

Cutting Edge Count: 2

EDP: 353929

EAN: 7320760353929

MFG Part Number: 5983817
