C12612.5

C12612.5

SKU DOR5983835
by Dormer Pramet
Primary Use: P - Steel and Cast Steel K - Cast Iron N - Non-Ferrous Metals S - High Temperature Alloys Possible Use: M - Stainless Steel

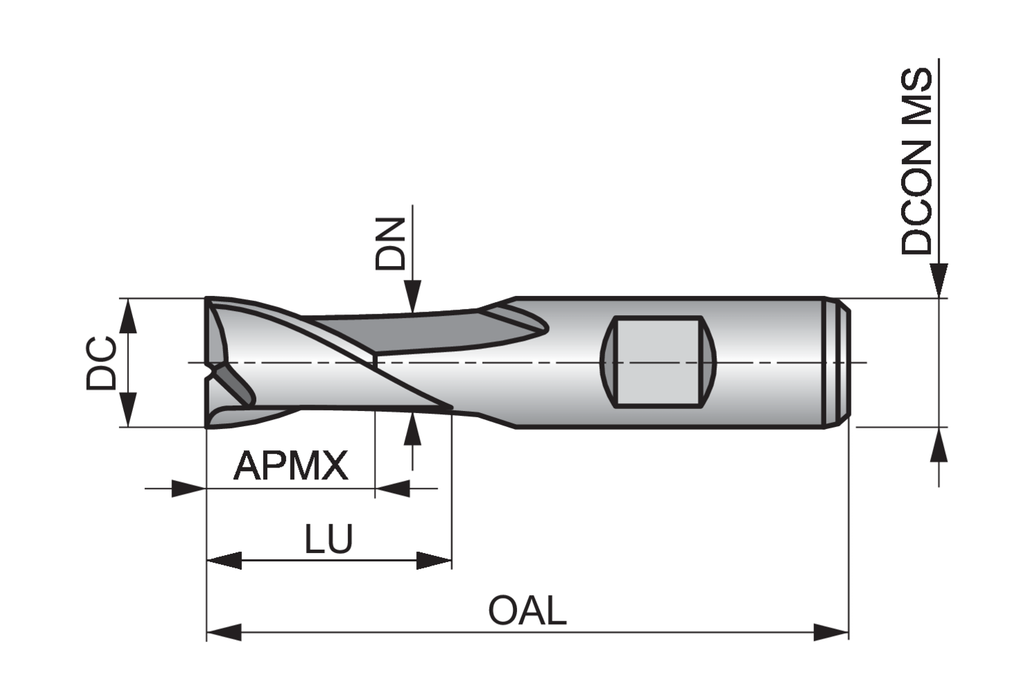

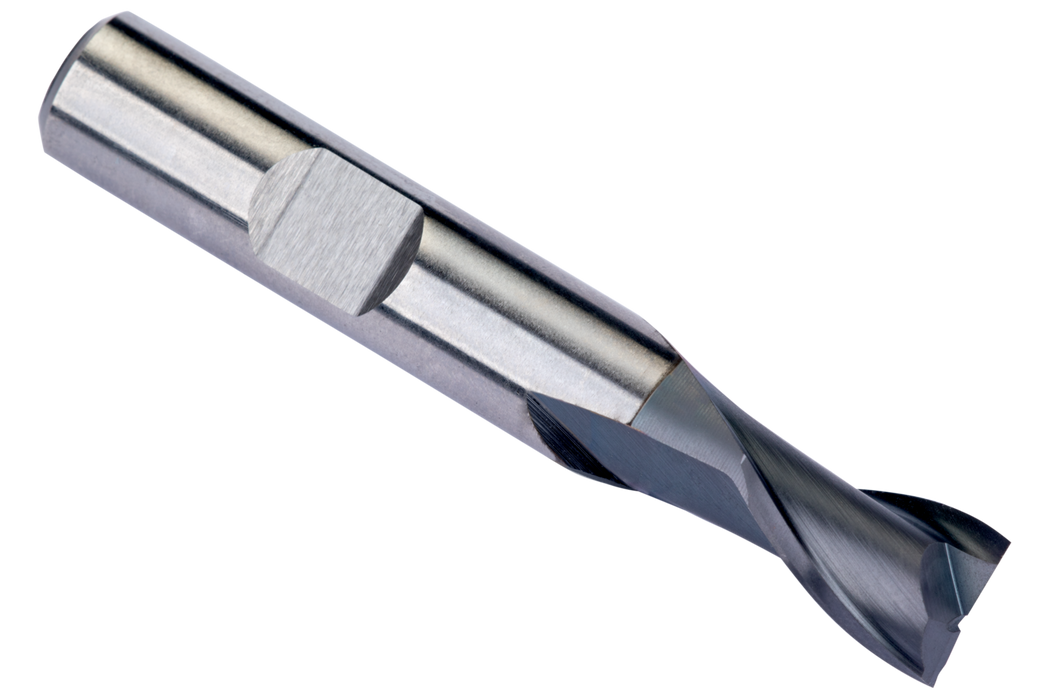

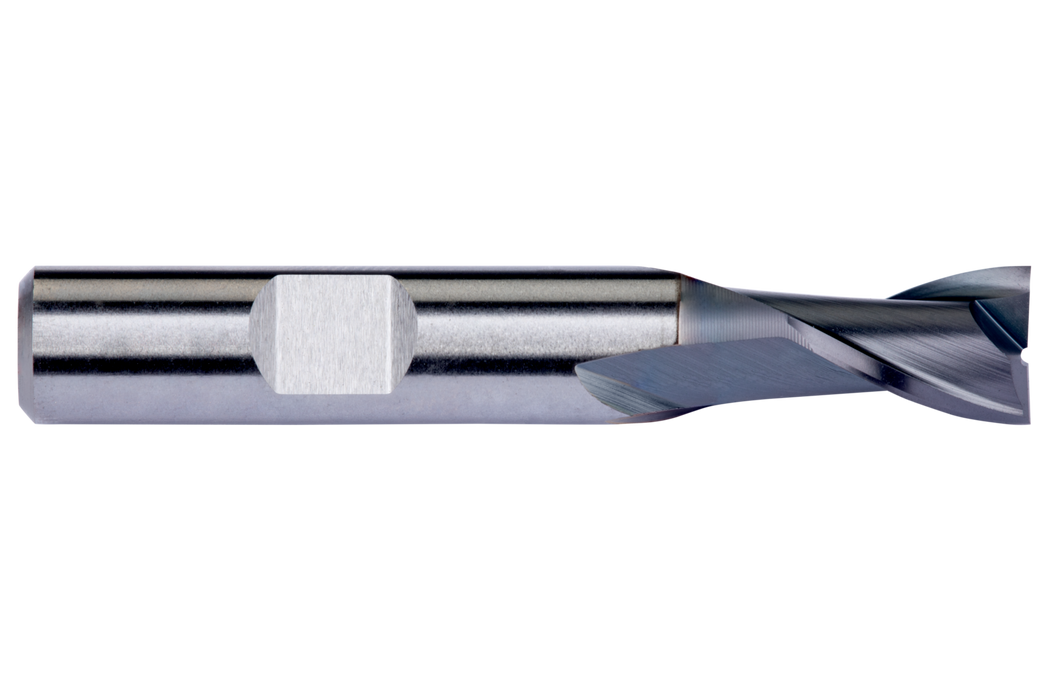

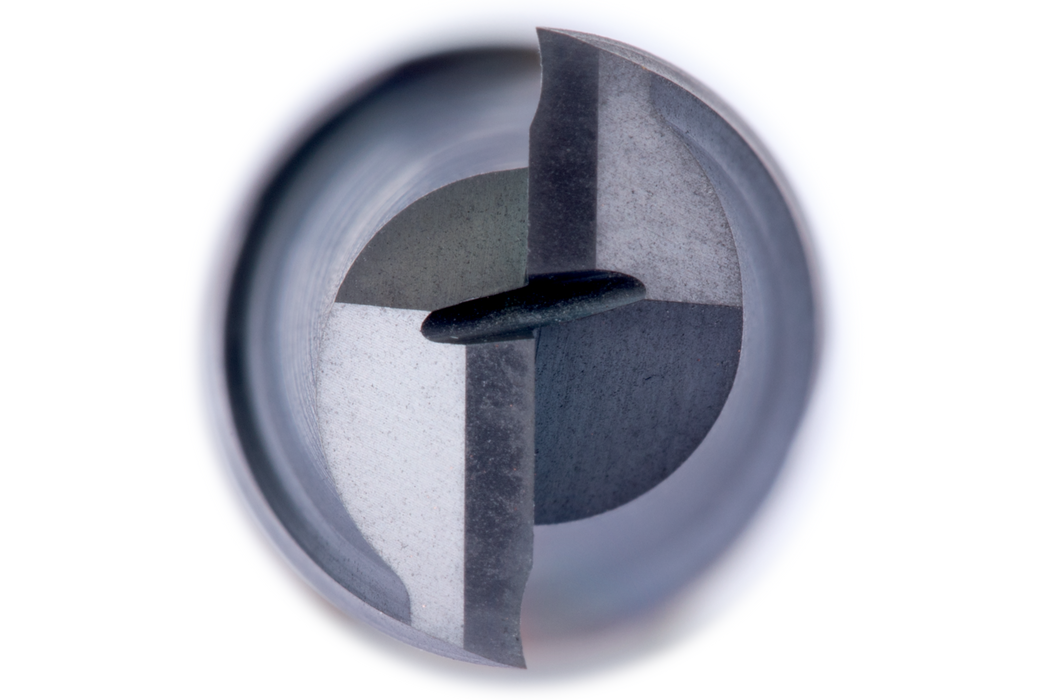

Extra short series slot drill with 2 flutes, diameter 12.5mm with 16mm length of cut, 73mm overall length and 27.5mm reach with neck relief, according to DIN 327 D standard with a 12mm Weldon shank, powder metallurgical HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron, copper or copper alloys and titanium or titanium alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$75.59 - $75.59
$75.59
$75.59 - $75.59
$75.59
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Cutting Diameter - in (DC): 0.4921

Cutting Diameter - mm (DC): 12.5

Overall Length (OAL): 2.874

Connetion Diameter: 0.4724

Max. Depth of Cut: 0.6299

Shank: Weldon shank DIN 1835B

Grade: TiCN

Cutting Edge Count: 2

EDP: 573532

EAN: 7320760573532

MFG Part Number: 5983835
