C1107/16

C1107/16

SKU DOR5983991
by Dormer Pramet
Primary Use: P - Steel and Cast Steel N - Non-Ferrous Metals S - High Temperature Alloys Possible Use: M - Stainless Steel K - Cast Iron

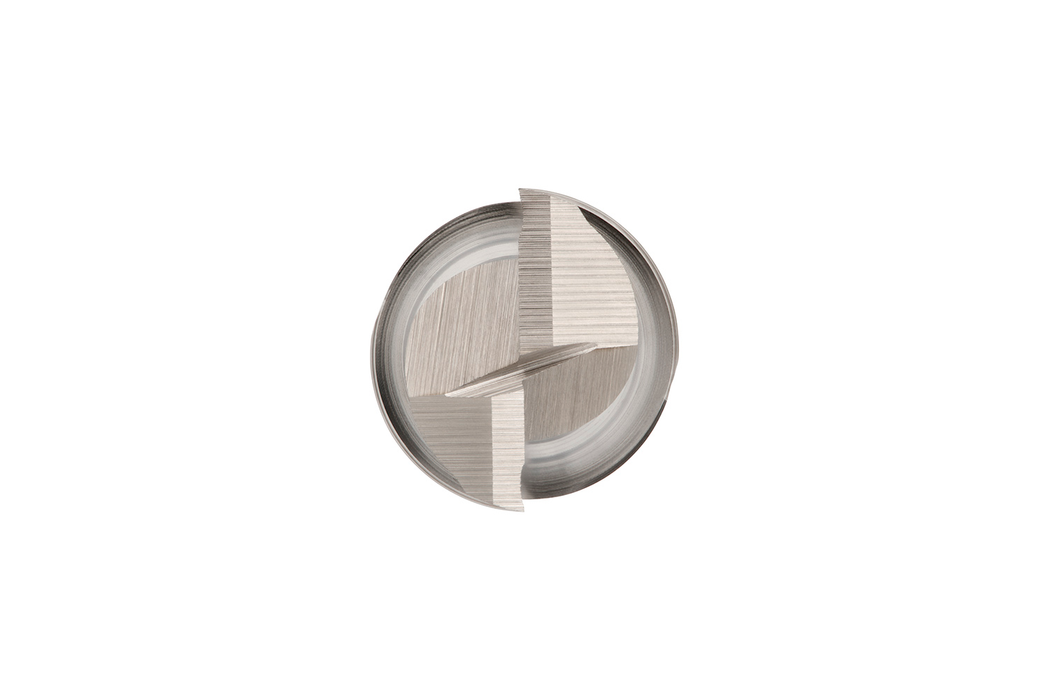

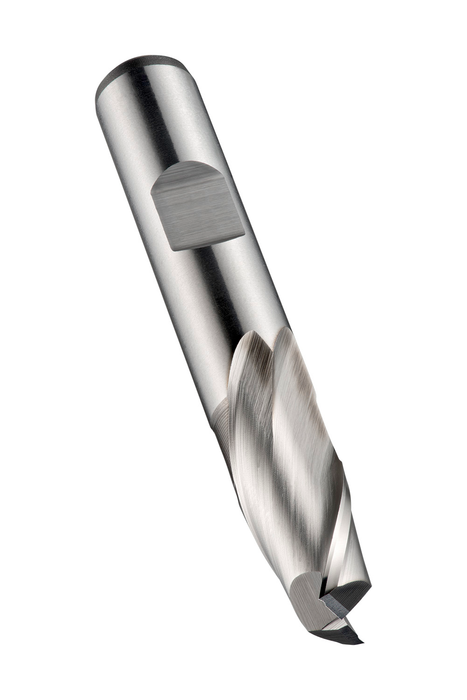

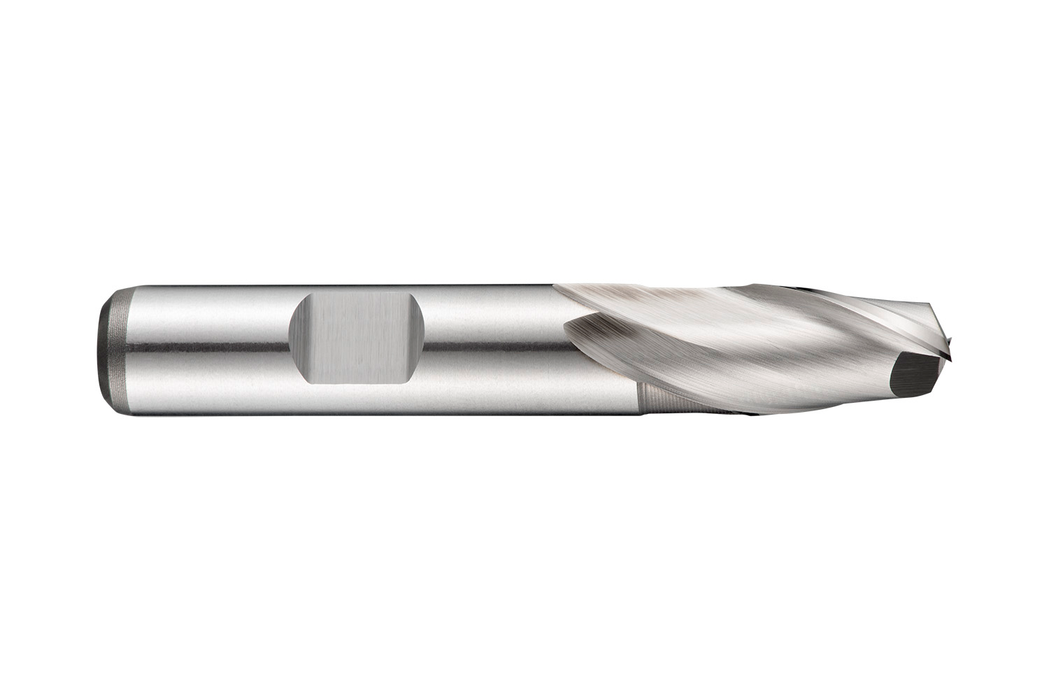

Extra short series slot drill with 2 flutes, diameter 7/16" with 13mm length of cut and 70mm overall length, according to DIN 327 D standard with a 12mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining steel and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$43.87 - $43.87
$43.87
$43.87 - $43.87
$43.87
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Coating: Bright

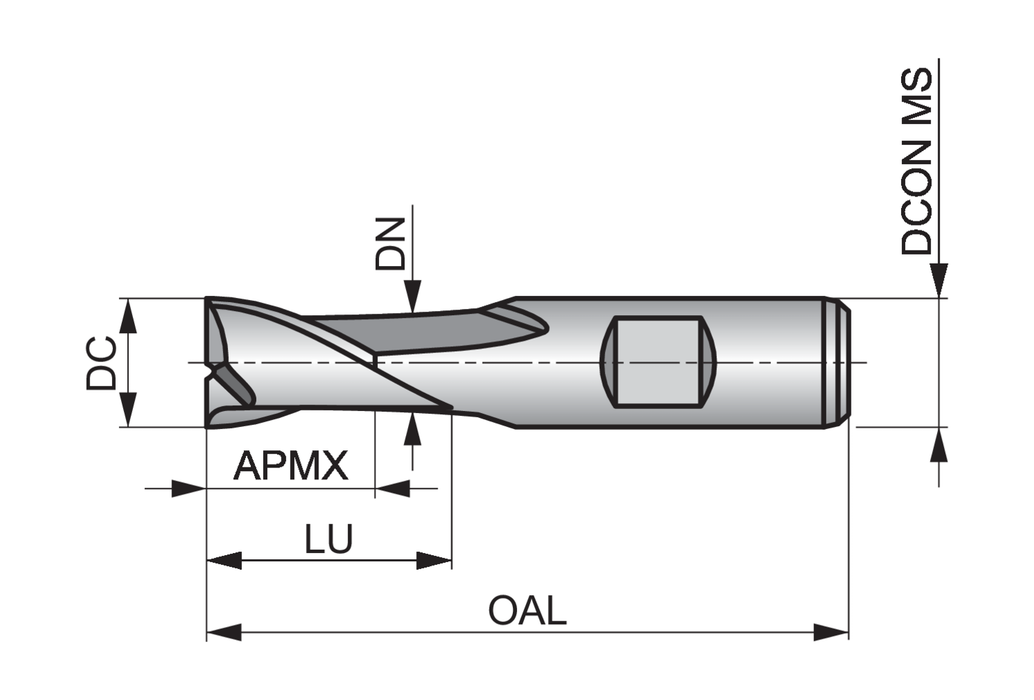

Cutting Diameter - in (DC): 0.4375

Cutting Diameter - mm (DC): 11.11

Overall Length (OAL): 2.7559

Connetion Diameter: 0.4724

Max. Depth of Cut: 0.5118

Shank: Weldon shank DIN 1835B

Fractional: 7/16

Steel and Cast Steel: Primary use

Stainless Steel: Possible use

Cast Iron: Possible use

Non Ferrous: Primary use

High Temp Alloys: Primary use

Grade: Bright

Cutting Edge Count: 2

EDP: 639870

EAN: 7320760639870

MFG Part Number: 5983991
