C12218.0

C12218.0

SKU DOR5984252
by Dormer Pramet
Primary Use: P - Steel and Cast Steel N - Non-Ferrous Metals Possible Use: M - Stainless Steel K - Cast Iron S - High Temperature Alloys

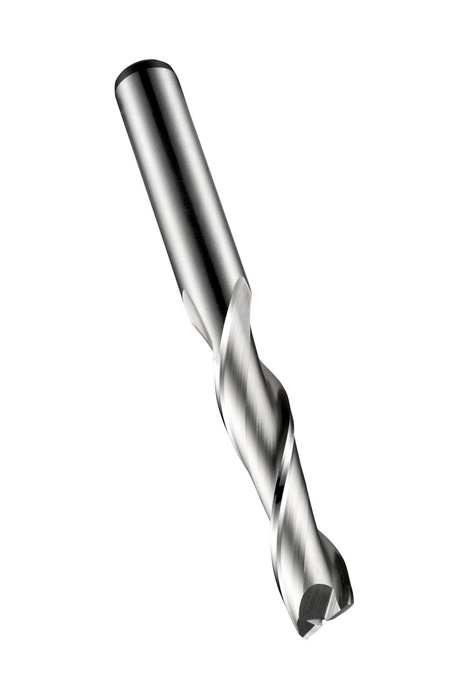

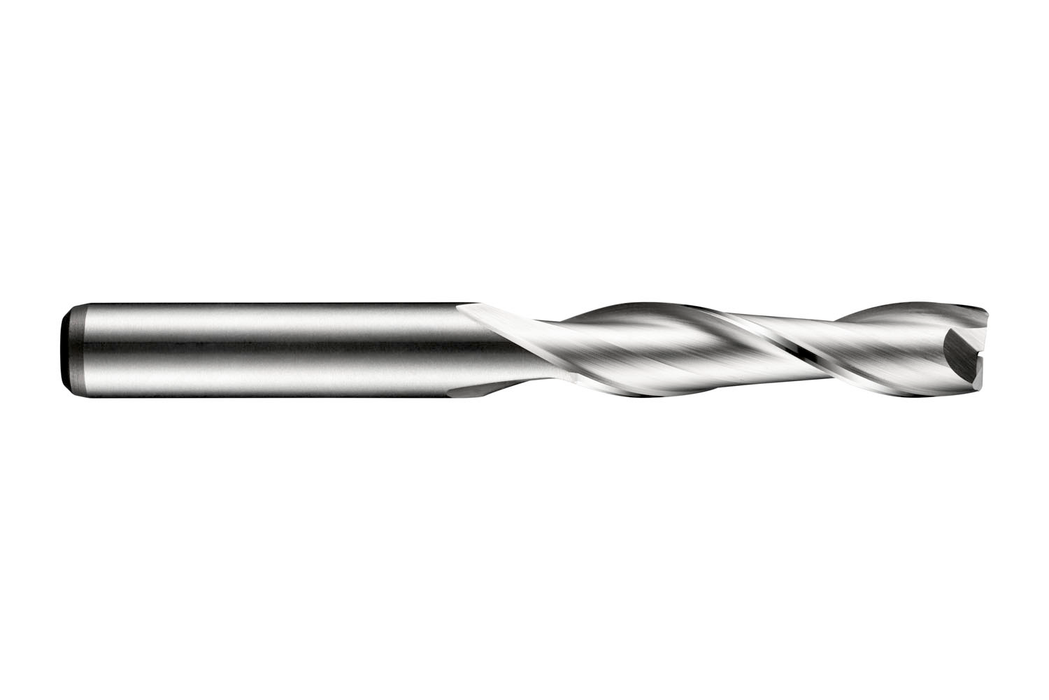

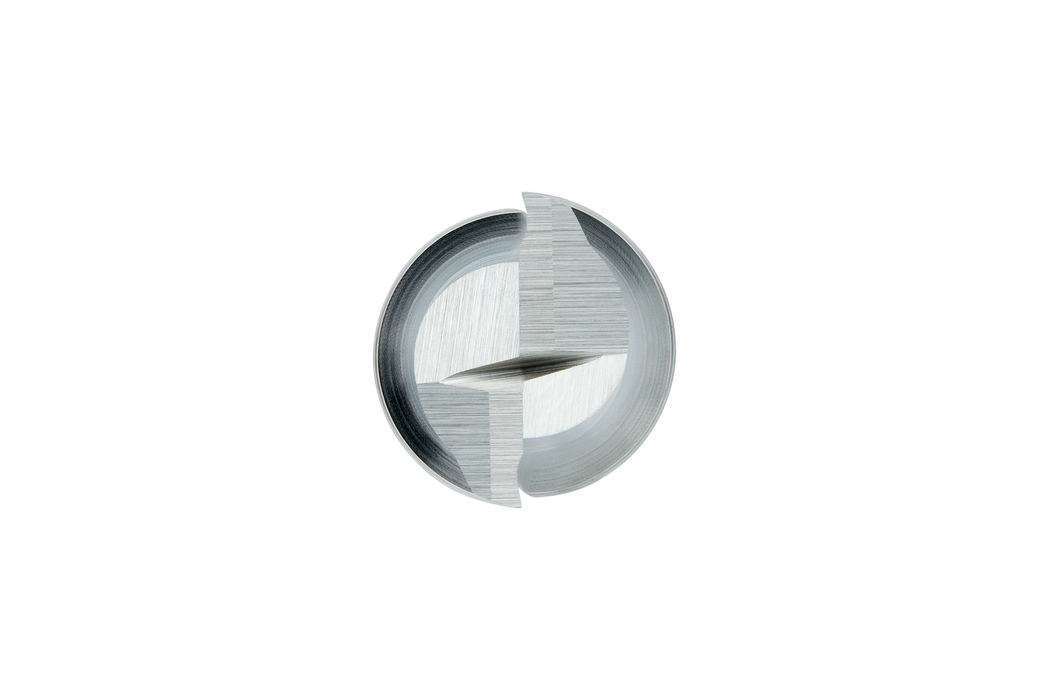

Long series end mill with 2 flutes, diameter 18mm with 65mm length of cut, 150mm overall length and 76.5mm reach with neck relief, according to DORMER standard with a 16mm plain shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling and slot milling in free machining steel and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$107.30 - $107.30
$107.30
$107.30 - $107.30
$107.30
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

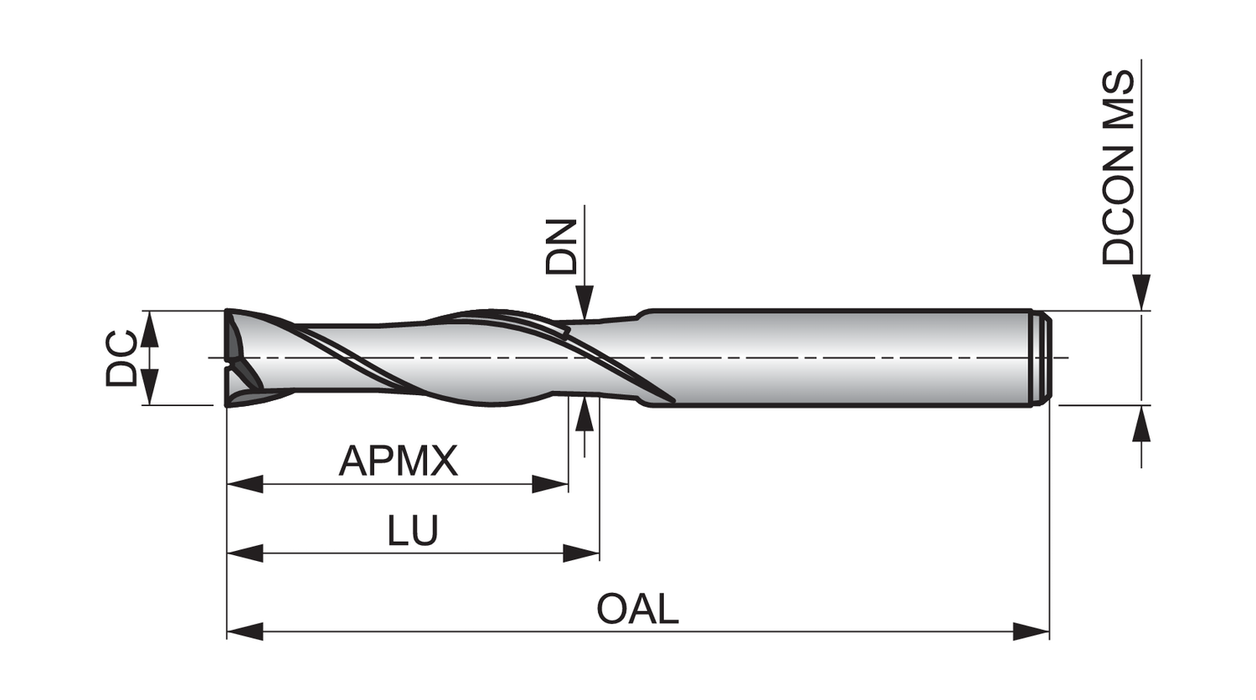

Material: HSS-E

Cutting Diameter - in (DC): 0.7087

Cutting Diameter - mm (DC): 18.0

Overall Length (OAL): 5.9055

Connetion Diameter: 0.6299

Max. Depth of Cut: 2.5591

Shank: Cylindrical shank DIN 1835A

Grade: Bright

Cutting Edge Count: 2

EDP: 56455

EAN: 7320760056455

MFG Part Number: 5984252
