C1226.0

C1226.0

SKU DOR5984286
by Dormer Pramet
Primary Use: P - Steel and Cast Steel N - Non-Ferrous Metals Possible Use: M - Stainless Steel K - Cast Iron S - High Temperature Alloys

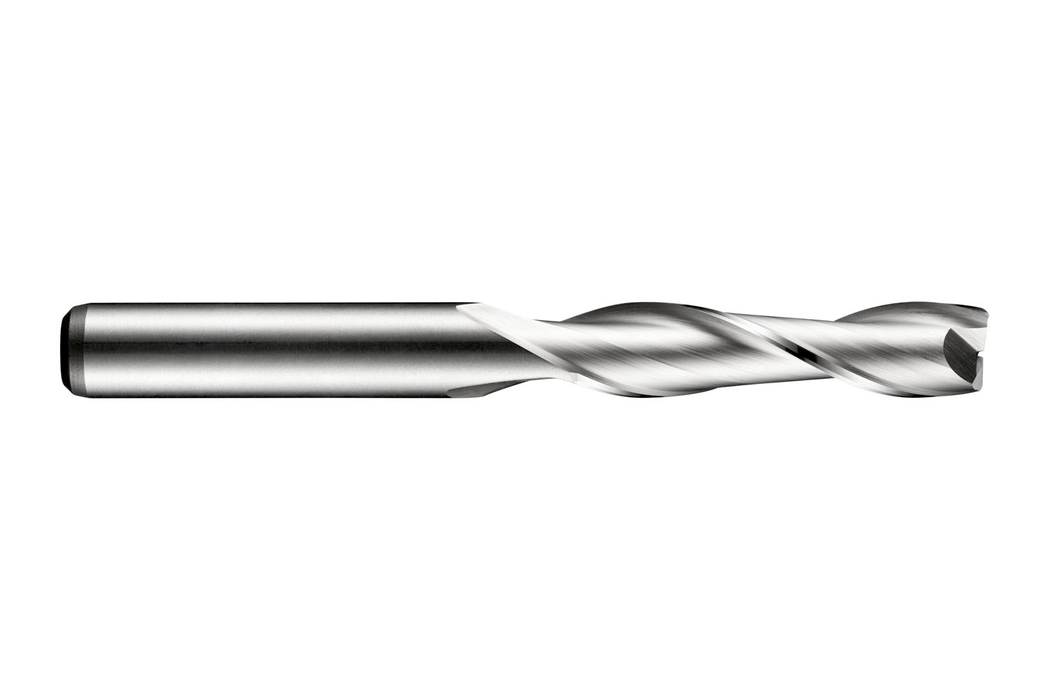

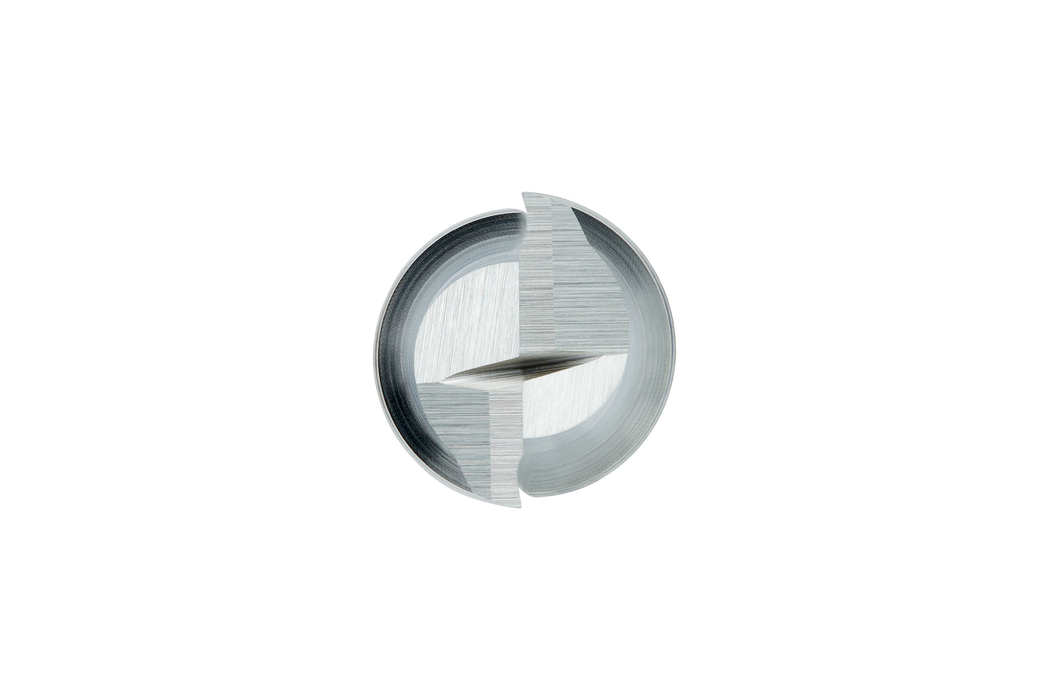

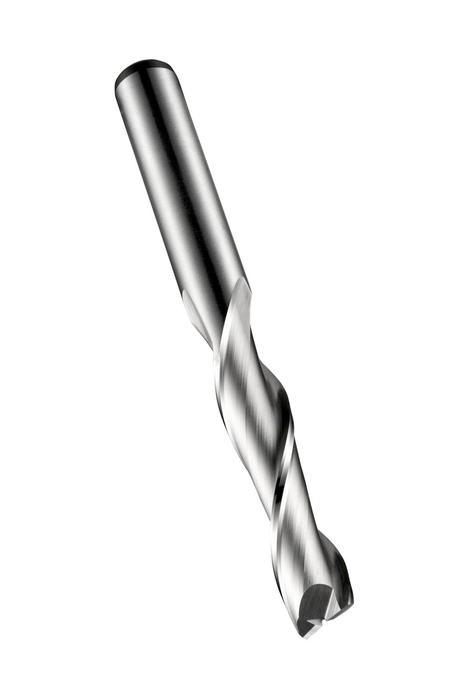

Long series end mill with 2 flutes, diameter 6mm with 27mm length of cut and 75mm overall length, according to DORMER standard with a 6mm plain shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling and slot milling in free machining steel and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$38.11 - $38.11
$38.11
$38.11 - $38.11
$38.11
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

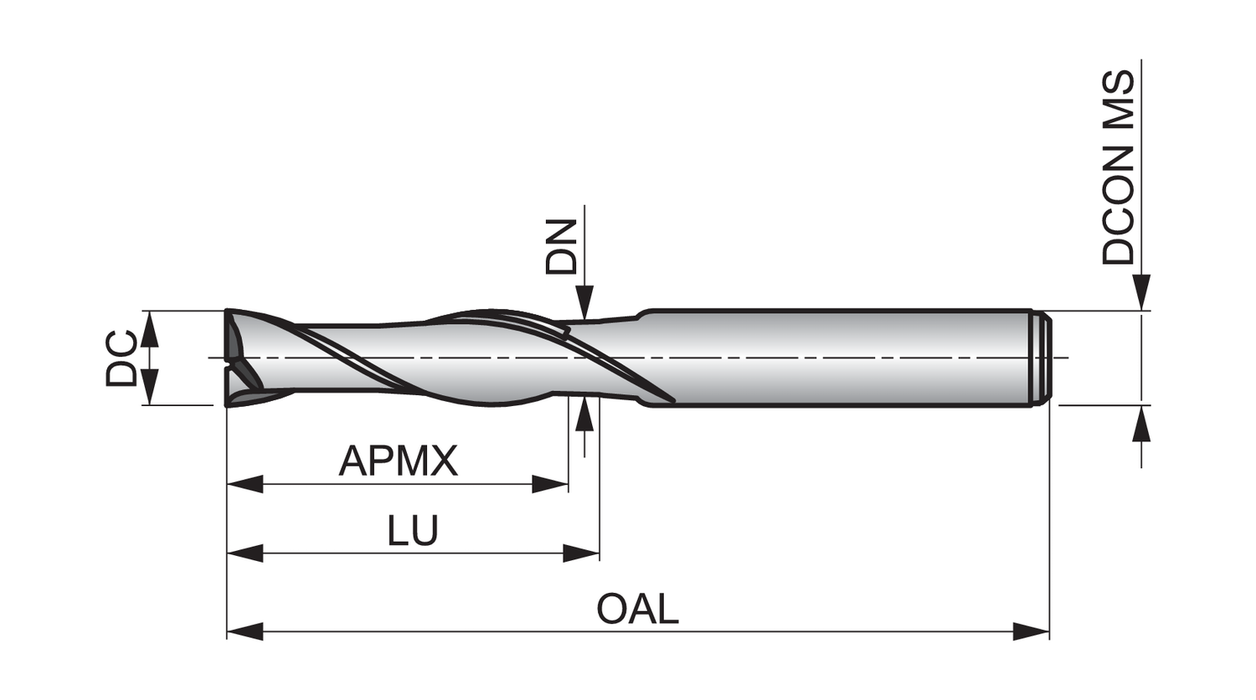

Material: HSS-E

Cutting Diameter - in (DC): 0.2362

Cutting Diameter - mm (DC): 6.0

Overall Length (OAL): 2.9528

Connetion Diameter: 0.2362

Max. Depth of Cut: 1.063

Shank: Cylindrical shank DIN 1835A

Grade: Bright

Cutting Edge Count: 2

EDP: 56516

EAN: 7320760056516

MFG Part Number: 5984286
